Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > Automower 430X NERA Automower 430X NERA > WHEELS AND TIRES
Back to
WHEELS AND TIRES

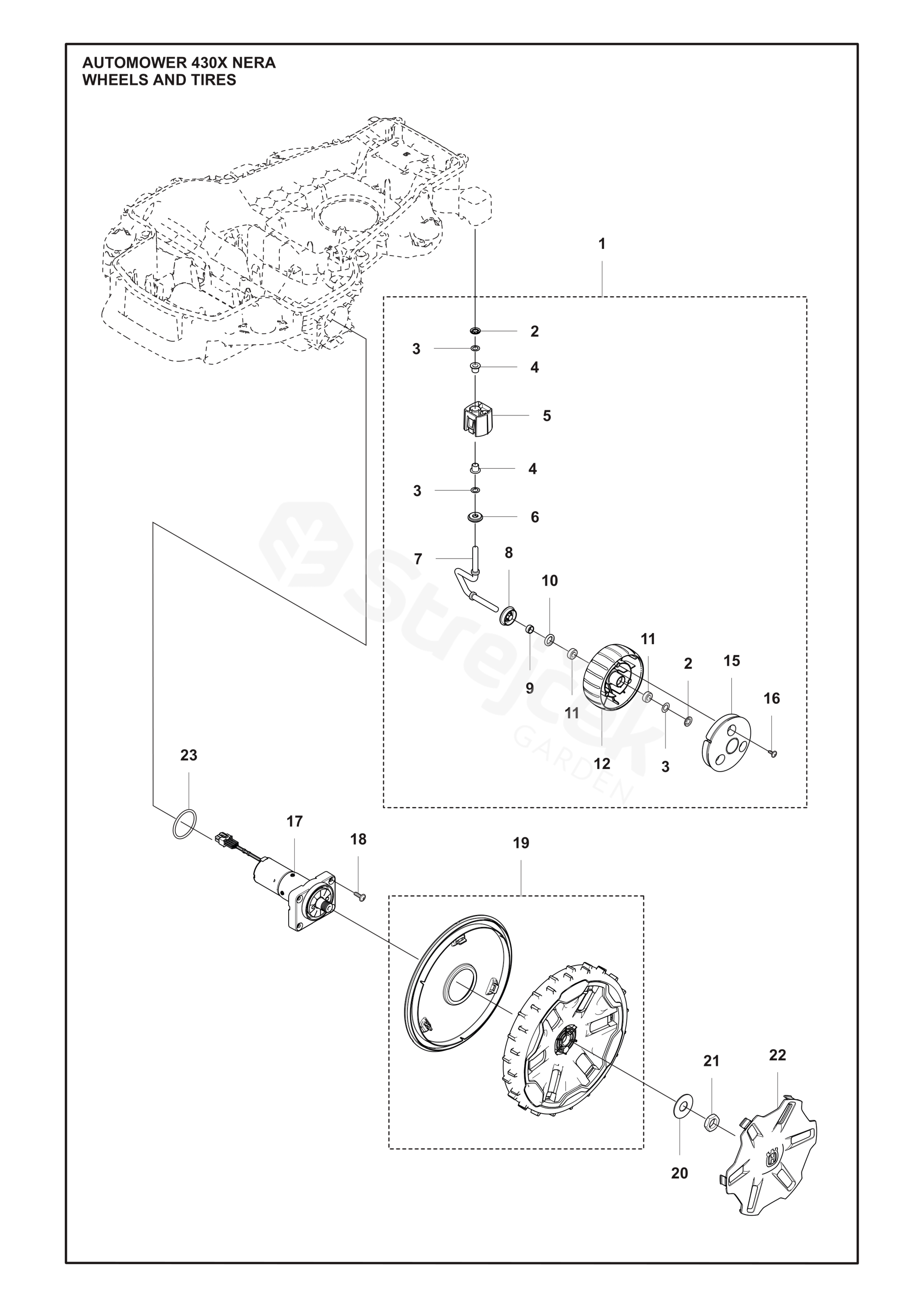

Automower 430X NERA Automower 430X NERA (970535211 - 7333377033320)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Automower 430X NERA
1 WHEEL ASSY
Front wheel assy 		536119702
2 LOCKWASHER
Washer 		576019302
3 WASHER
Washer 		580764601
4 BUSHING
Bushing 		535293801
5 SOCKET
Socket 		531264301
6 SHIELD
Shield 		536661901
7 SPINDLE
Spindle 		531263302
8 SHIELD
Shield 		531264201
9 SLEEVE
Sleeve 		580412001
10 SEALING
Sealing 		580487101
11 BALL BEARING
Ball bearing 		580605101
12 WHEEL
Tire 		531344201
15 WHEEL
Wheel outside 		531344401
16 SCREW
Screw 		575543314
17 MOTOR KIT
Wheel motor 		581621307
18 SCREW ITXPANT
Screw 		574450101
19 WHEEL ASSY
Rear wheel 		538816501
20 WASHER
Washer 		586210601
21 HEXAGON THIN NUT
Nut 		731432401
22 HUB CAP
Hub Cap 		531356501
23 O-RING
O-ring 		580443902
