Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > Automower 520 EPOS Automower 520 EPOS > WHEELS AND TIRES
Back to

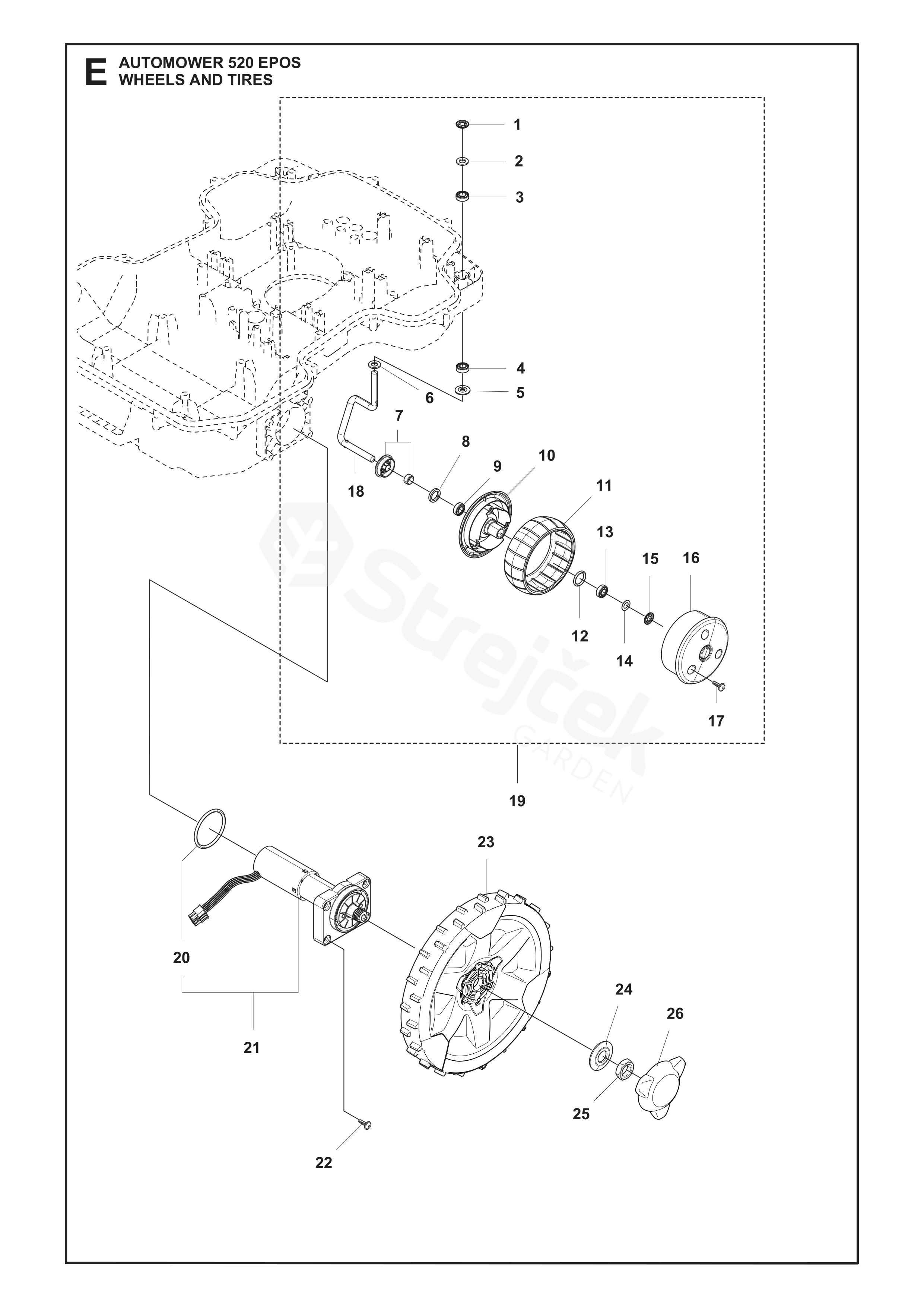

WHEELS AND TIRES
Automower 520 EPOS Automower 520 EPOS (970800811 - 7333377715998, 970717811 - 7333377487352)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Automower 520 EPOS
1 LOCKWASHER 576019302
2 WASHER 514916400
3 BALL BEARING 580605101
4 BALL BEARING 580605101
5 WASHER 535087803
6 WASHER 580764601
7 SHIELD KIT 581621501
8 SEALING 580487101
9 BALL BEARING 580605101
10 WHEEL
Wheel Inside 		579457101
11 WHEEL
Tire 		574449801
12 O-RING 580445101
13 BALL BEARING 580605101
14 WASHER 580764601
15 LOCKWASHER 576019302
16 WHEEL
Wheel Outside 		579457201
17 SCREW 575543314
18 SPINDLE 580336102
19 WHEEL KIT
Front Wheel KIT 		581621402
20 O-RING 580443902
21 MOTOR KIT
Drive wheel 		581621307
22 SCREW ITXPANT 574450101
23 WHEEL ASSY
Rear Wheel 		582280201
24 WASHER 586210601
25 HEXAGON THIN NUT
Thin Nut 		731432401
26 HUB CAP 579505502
