Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > LC 347V 2017- LC 347V 2017- > ENGINE
Back to

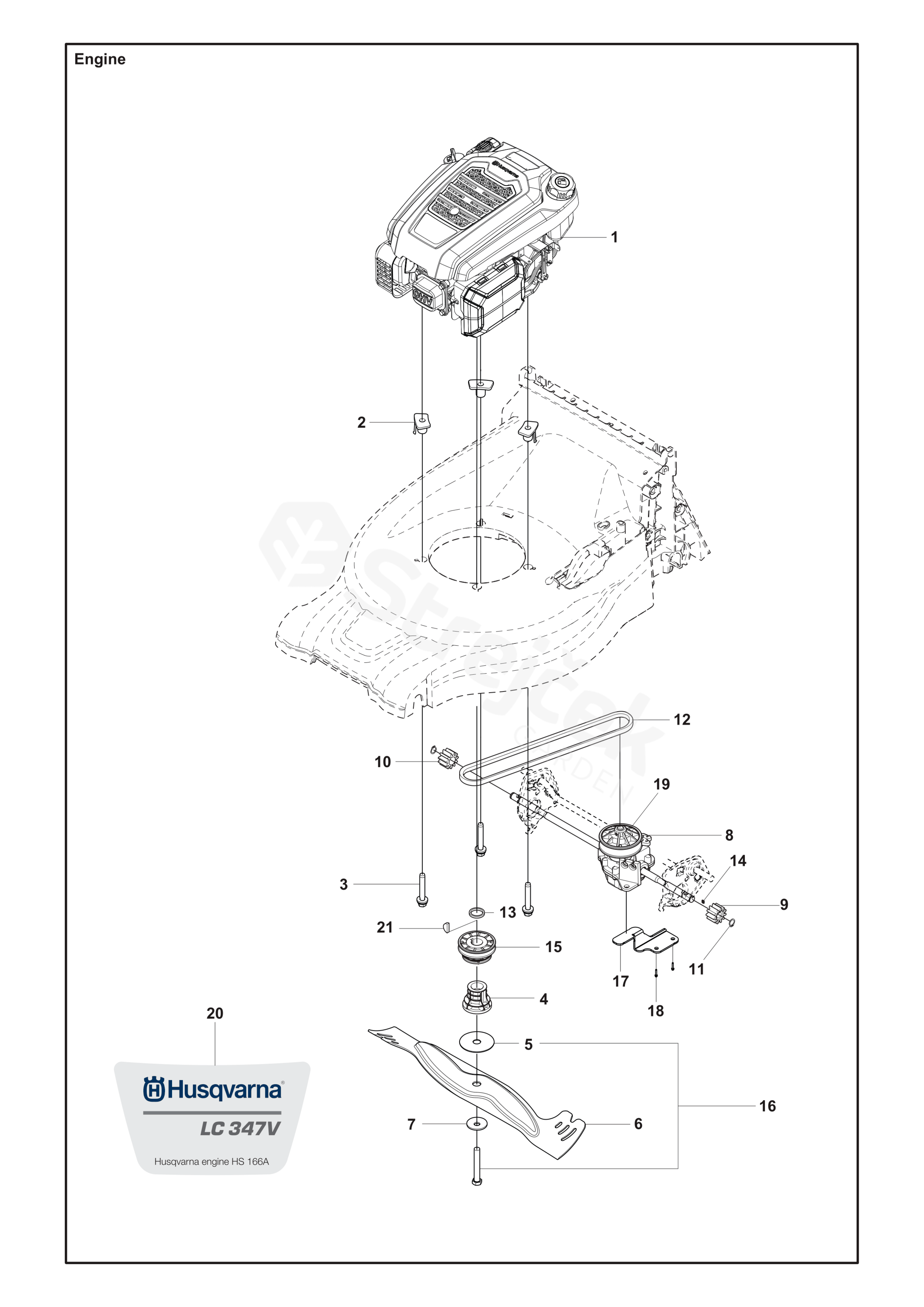

ENGINE
LC 347V 2017- LC 347V 2017- (967068901 - 7391736198455, 970541301 - 7392930759411)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LC 347V 2017-
1 DUMMY PART
For 967068901, Engine B&S 650Exi (103M020045H1) 		900000002
2 SLEEVE 578295101
3 SCREW EHHFT 578294801
4 BLADE SUPPORT 501882802
5 PODLOŽKA 503259401
6 BLADE 588275510
7 PRUŽINA 503332501
8 TRANSMISSION KIT Delivered with 4pcs circlips
Delivered with 4pcs circlips 		589693301
9 PINION 501869702
10 PINION 501869701
11 CIRCLIP 735311401
12 DRIVE BELT 579819302
13 POUZDRO
For 967068901 		582356902
14 PIN 582041101
15 PULLEY ASSY 582178901
16 BOLT Kit with washer
Kit with washer 		589692201
17 BRACKET 593973201
18 SCREW ITXPANT 502435301
19 VARIATOR 597730801
20 DECAL 531240805
21 WOODRUF KEY 504460501
