Spare parts > Husqvarna > LAWN MOWERS: CONSUMER WALK-BEHINDS > Husqvarna LC 356 AWD Husqvarna LC 356 AWD > FRAME AND ENGINE
Back to

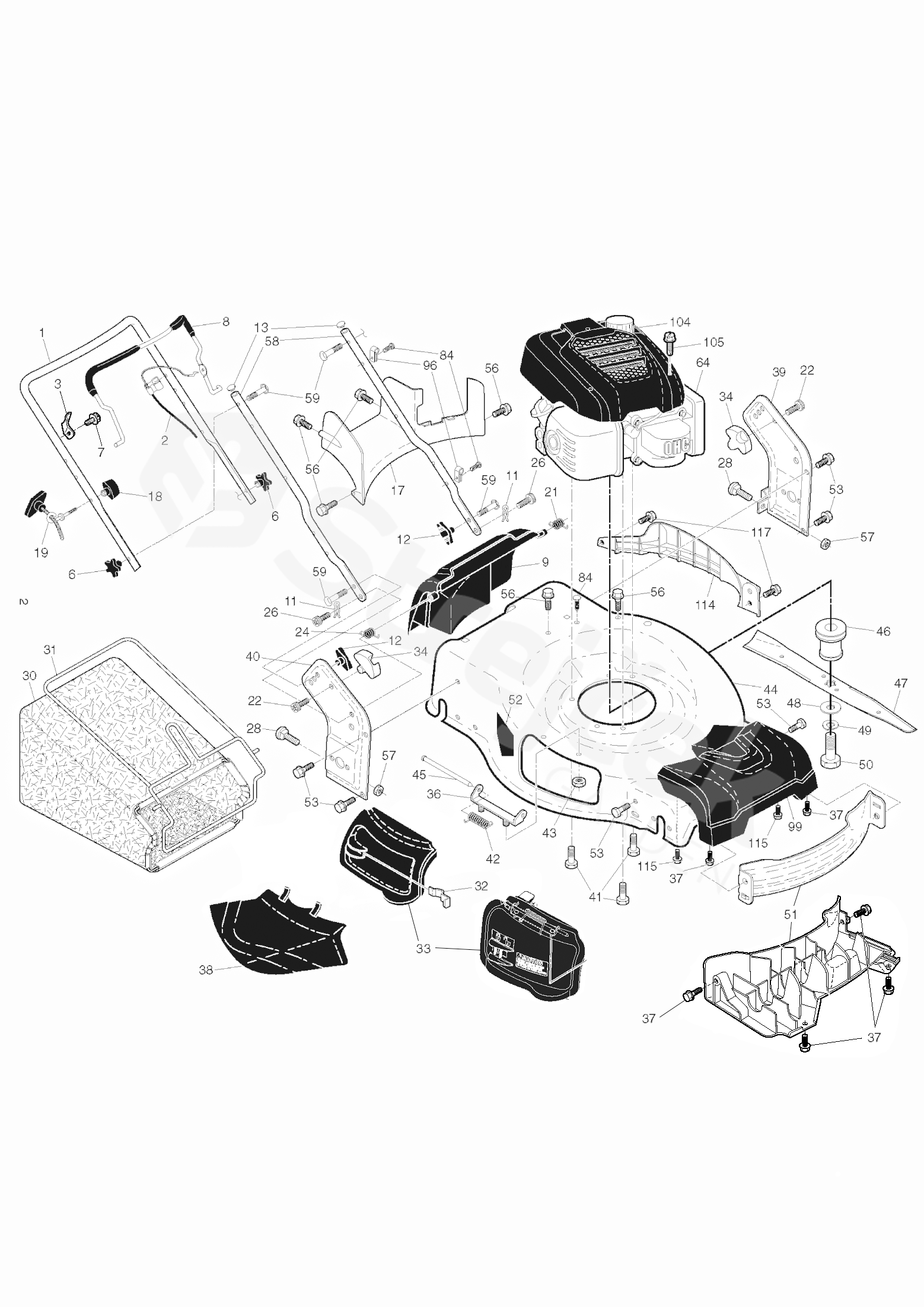

FRAME AND ENGINE
Husqvarna LC 356 AWD Husqvarna LC 356 AWD (961410220 - 7391883972458, 961410292 - 7393080680457)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Husqvarna LC 356 AWD
1 HANDLE
For all EXCEPT 96141029200 		585854806
2 CABLE
For 96141029200, 96141029201 		532427497
3 BRACKET
For 96141029200, 96141029201 		532430034
6 KNOB 532182398
7 SCREW
For 96141029200, 96141029201 		532178848
8 BAIL
For 96141029200, 96141029201 		580849102
9 DOOR ASSY 532431391
11 HAIR PIN COTTER 532425575
12 KNOB 532191938
13 PLUG
For all EXCEPT 96141022000 		532437516
17 BAFFLE 581782101
18 KNOB 581912601
19 GUIDE 581902101
21 SPRING
LH 		532419949
22 SCREW 532141841
24 SPRING
RH 		532419948
26 SCREW 532419945
28 BOLT 586212501
30 GRASS BAG ASSY 580943402
31 BAG FRAME 585054702
32 LATCH
For all EXCEPT 96141029205, 96141022000 		532441192
33 MULCH DOOR
For 96141029205, 96141022000 		532419927
34 BRACKET 532438134
36 HINGE
For all EXCEPT 96141029205, 96141022000 		532175735
37 SCREW EHHFT
For 96141029200, 96141029201, 96141029202 		584299401
38 DEFLECTOR 532426129
39 BRACKET LH
LH 		585900703
40 BRACKET RH
RH 		585900803
41 BOLT 532150406
42 HINGE
For all EXCEPT 96141029205, 96141022000 		532193000
43 NUT
For all EXCEPT 96141029205, 96141022000 		532438130
44 HOUSING ASSY
For 96141029200, 96141029201, 96141029202 		581708352
45 ROD 532175650
46 ADAPTER
For 96141022000 		591344701
47 BLADE 580244001
48 PODLOŽKA 532851074
49 PODLOŽKA 532850263
50 SCREW 532851084
51 BAFFLE
For all EXCEPT 96141029200, 96141029201, 96141029202 		532430599
52 DECAL 532182166
53 BOLT 817000510
56 SCREW 817411312
57 MATICE 532155377
58 HANDLE
For 96141029200 		532441197
59 HANDLE BOLT 532191574
64 DUMMY PART
HONDA GCV170-S3HB FOR SERVICE & PARTS 1-800-426-7701 		900000002
84 FASTENER 532428124
96 CLIP 532197991
97 BAG
For all EXCEPT 96141029200, INCLUDES KEY NUMBERS 12 & 59 		532423849
98 OPERATOR'S MANUAL
NOT SHOWN 		114065020
99 FRONT COVER ASSY
For 96141029200, 96141029201, 96141029202 		580992901
100 OPERATOR'S MANUAL
NOT SHOWN 		114065050
101 OPERATOR'S MANUAL
NOT SHOWN 		114065040
102 OPERATOR'S MANUAL
NOT SHOWN 		114065053
104 SHROUD
For all EXCEPT 96141029201, 96141029202, 96141022000 		580290001
105 SCREW ITXPANT
For all EXCEPT 96141029201, 96141029202, 96141022000 		580768701
114 BUMPER
For all EXCEPT 96141029200, 96141029201 		587568102
115 SCREW EHHFT 581330001
117 BOLT 532428867
