Husqvarna LC 356 AWD Husqvarna LC 356 AWD
>
DRIVE
Back to
Husqvarna LC 356 AWD
Husqvarna LC 356 AWD

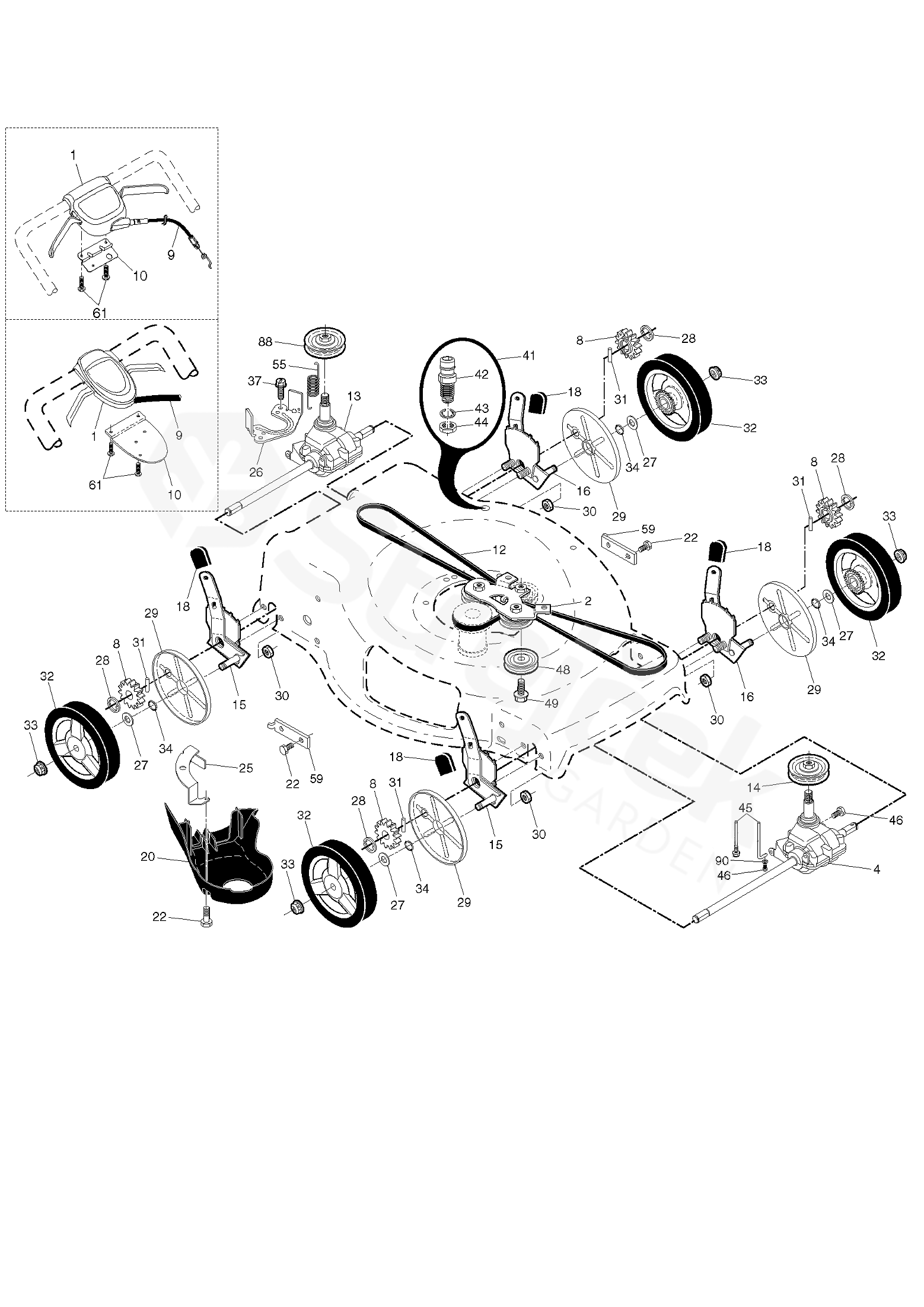

DRIVE
Husqvarna LC 356 AWD
Husqvarna LC 356 AWD (961410220 - 7391883972458, 961410292 - 7393080680457)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Husqvarna LC 356 AWD
1
DRIVE CABLE
For 96141029204, 96141029205, 96141022000, Includes Cable
589818807
2
BRACKET
586072802
4
TRANSMISSION
589599201
8
PINION
532404835
9
CABLE
For all EXCEPT 96141022000, 96141029204, 96141029205
581952101
10
BRACKET
For all EXCEPT 96141029204, 96141029205, 96141022000
532432790
12
BELT
580364610
13
TRANSMISSION
For all EXCEPT 96141029201
581680801
14
PULLEY
586963001
15
ADJUSTER
RH
581497908
16
ADJUSTER
LH
581497907
18
KNOB
532701037
20
BELT COVER
580806901
22
BOLT
817000510
25
BRACKET
532426065
26
BRACKET
581152502
27
PODLOŽKA
532067725
28
E-CLIP
812000058
29
DUST COVER
581840401
30
NUT
532438130
31
PAWL, DRIVE
532404845
32
WHEEL
580365301
33
MATICE
532409148
34
O-KROUŽEK
532197480
37
SCREW
532163409
41
KIT
532438489
42
PORT
532434994
43
LOCKWASHER
532415585
44
LOCKING NUT
532415586
45
BRACKET
For 96141029200, 96141029201, 96141029202
581241301
46
SCREW EHHFT
584299401
48
PULLEY
587973001
49
BOLT
581334501
55
SPRING
581351301
59
BRACKET
532442113
61
SCREW
532181698
88
PULLEY
For 96141029200
532194128
90
PODLOŽKA
For 96141029202
539990692
