Battery Lawnmower HandyMower Li-18/22 Ready-To-Use Set

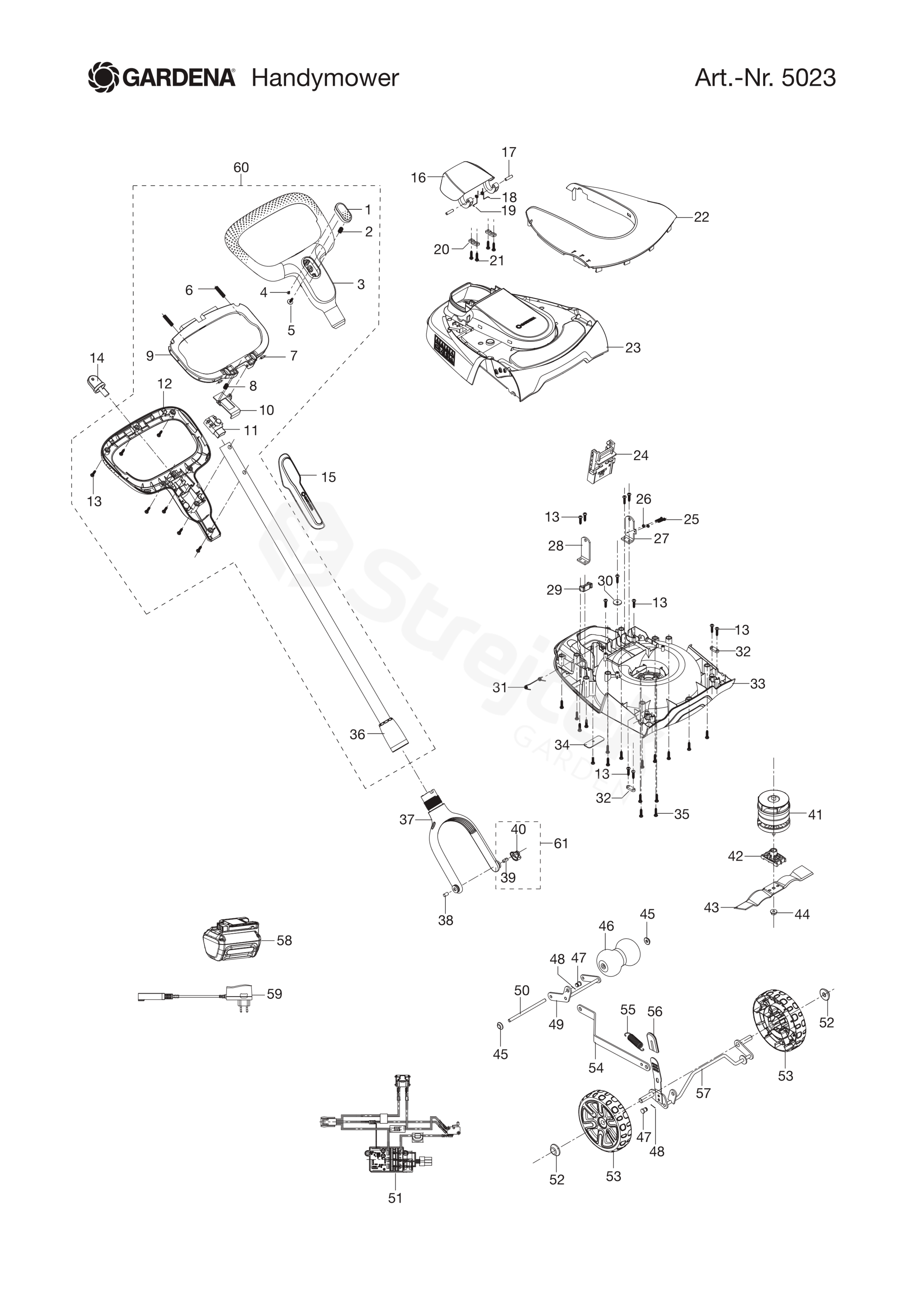

Battery Lawnmower HandyMower Li-18/22 Ready-To-Use Set (967991101 - 4078500049405)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Battery Lawnmower HandyMower Li-18/22 Ready-To-Use Set
11
SWITCH
5023-00.620.08
597392401
14
KEY
5023-00.620.07
597392301
15
SCRAPER
5023-00.600.15
597401201
16
COVER
5023-00.610.02
597387501
17
SHAFT
5023-00.610.05
597388201
18
TORSION SPRING
5023-00.610.03
597388001
19
TORSION SPRING
5023-00.610.04
597388101
22
COVER
5023-00.610.01
597385901
37
HANDLE HOLDER
5023-00.660.00
597618801
38
SHAFT
5023-00.600.09
597398701
41
MOTOR
5023-00.600.01
597397701
42
BLADE HOLDER
5023-00.630.03
597394001
43
BLADE
4105-00.701.00 (4105-20)
599205401
44
NUT
5023-00.630.02
597393901
45
WASHER
5023-00.600.14
597618701
46
REAR WHEEL
5023-00.600.12
597400801
47
SHAFT
5023-00.620.06
597392201
48
COTTER
5023-00.640.04
597395101
51
CONTROL
5023-00.650.00
597395301
52
WASHER
9341-00.600.31
596750601
53
WHEEL ASSY
5023-00.670.00
598786001
56
COVER
5023-00.640.02
597394501
57
FRONT AXLE ASSY
5023-00.642.00
597394801
59
CHARGER 9825-00.630.00
9825-00.630.00 (8833-20)
589740801
60
HANDLE ASSY
5023-00.620.00
597404901
61
LEVER
5023-00.600.10
597400301
