Spare parts > Husqvarna > RIDERS > R 200iX R 200iX > COVER
Back to

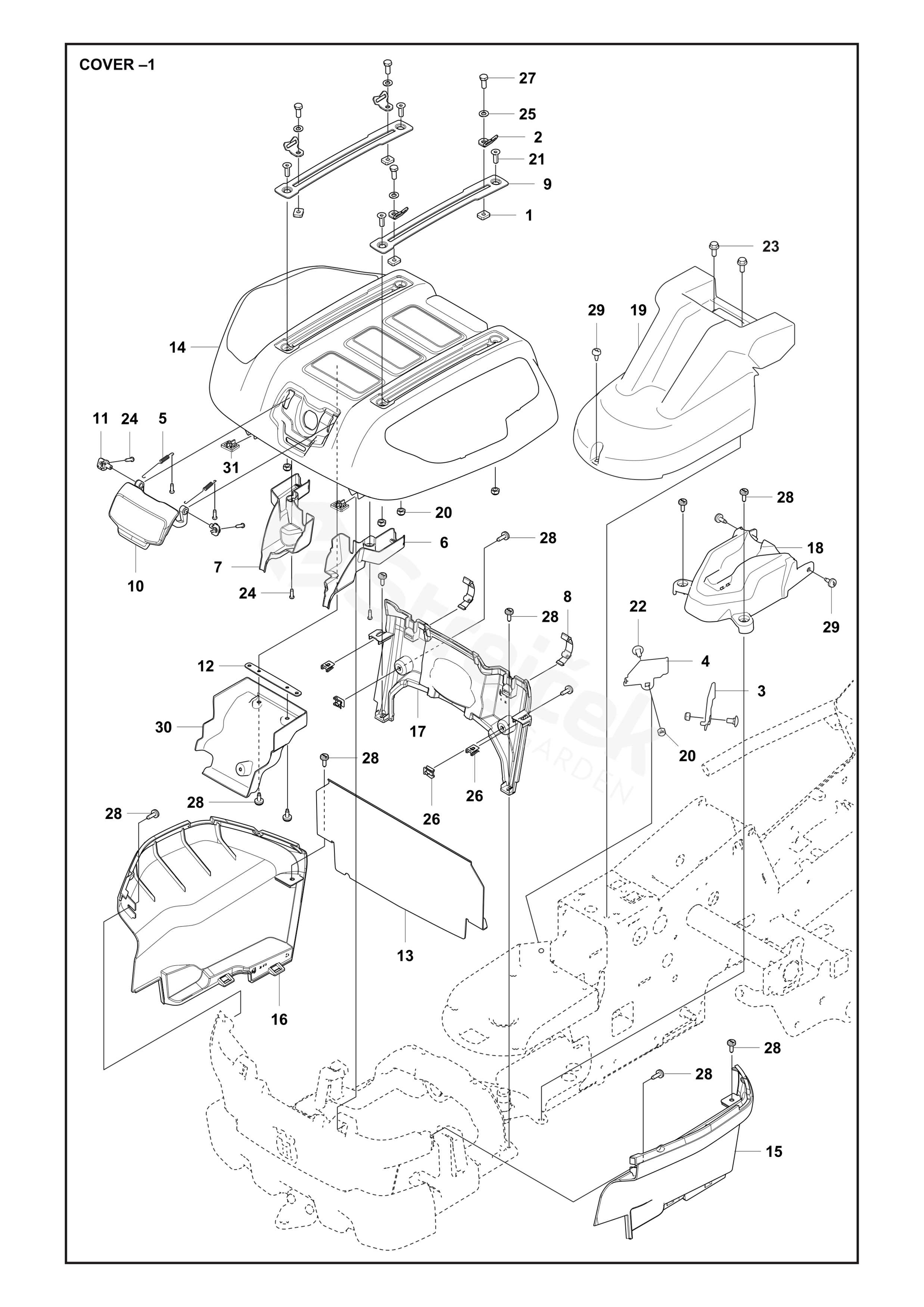

COVER
R 200iX R 200iX (970649901 - 7333377081277)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R 200iX
1 PLATE 590906701
2 LOOP 594940501
3 BRACKET
Right 		536828702
4 BRACKET
Left 		536828701
5 SPRING 536593301
6 TRAY
Right 		534979601
7 TRAY
Left 		534979501
8 SNAP LOCKING 588462803
9 RAIL 599654401
10 LID
Charging 		599654201
11 HINGE PIN 535014501
12 BRACKET 538826701
13 SHEET
Splash guard 		546062101
14 COVER
Engine hood 		537638701
15 COVER
Rear right 		599336901
16 COVER
Rear left 		599336801
17 COVER
Front chassis rear 		599337401
18 COVER
Mid channel 		599623801
19 COVER
Mid upper 		599653801
20 LOCK NUT
M8 		732211801
21 SCREW IHCSFM
M8 X 25 		725645301
22 SCREW RSQM
M8 X 16 		727644951
23 SCREW EHHFM
M8 X 20 		506570104
24 SCREW ITXPANT
T50 X 16 		502435301
25 WASHER 295700601
26 MATICE
M6 SPRING 		535429101
27 SCREW EHHM
M8 X 20 		725245171
28 SCREW
M6 X 21 		574856202
29 SCREW
M6 X 19 		544400501
30 COVER
Protection battery top 		538826601
31 CLIP
For battery top cover 		546584801
