Spare parts > Husqvarna > RIDERS > R320 AWD R 320 AWD > MOWER LIFT / DECK LIFT
Back to

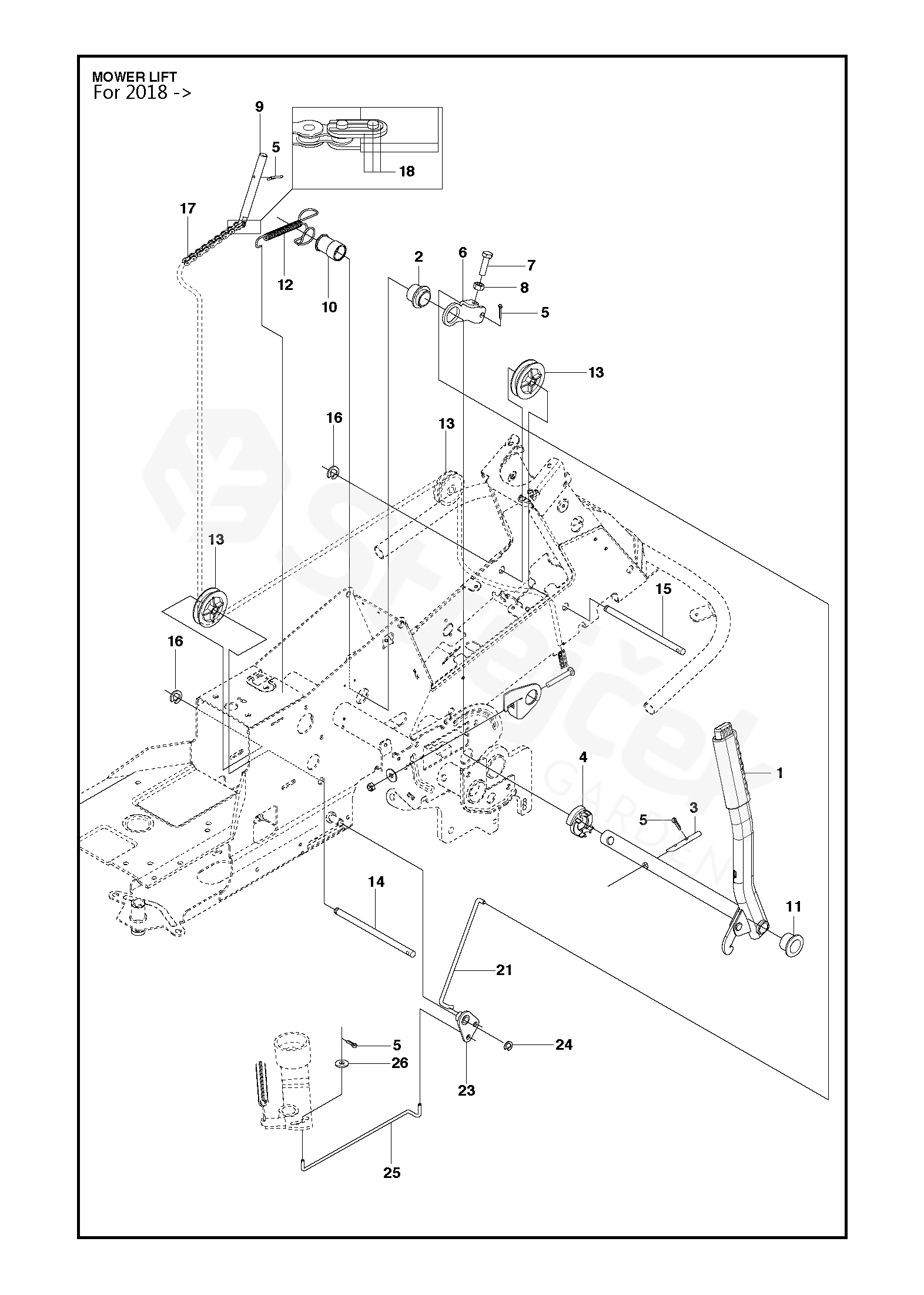

MOWER LIFT / DECK LIFT
R320 AWD R 320 AWD (966757401 - 7391883691823, 967151701 - 7393080366061, 967291502 - 7391736388665, 967291501 - 7393089048814)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For R 320 AWD
1 LIFTING LEVER ASSY 590880601
2 BEARING 588926901
3 PEN 525406601
4 ANVIL 588927101
5 SPLIT PIN 721618301
6 LIFTING ARM 588927001
7 SCREW 725249751
8 HEXAGON NUT 731232001
9 ROD 588927401
10 ANVIL 588927301
11 BEARING 584871301
12 SPRING 588927501
13 OFFSET PULLEY 506905601
14 SHAFT 582871901
15 HRÍDEL 582871902
16 E-CLIP 735311820
17 CHAIN 506554609
18 LINKAGE 506554701
21 CONNECTION ROD 544456901
23 LINK 544378601
24 E-CLIP 735311420
25 CONNECTION ROD 544448801
26 PODLOŽKA 734116441
