Husqvarna
>
RIDERS
>
R420TsX AWD R 420TsX AWD
>
TRANSMISSION
Back to
R420TsX AWD
R 420TsX AWD

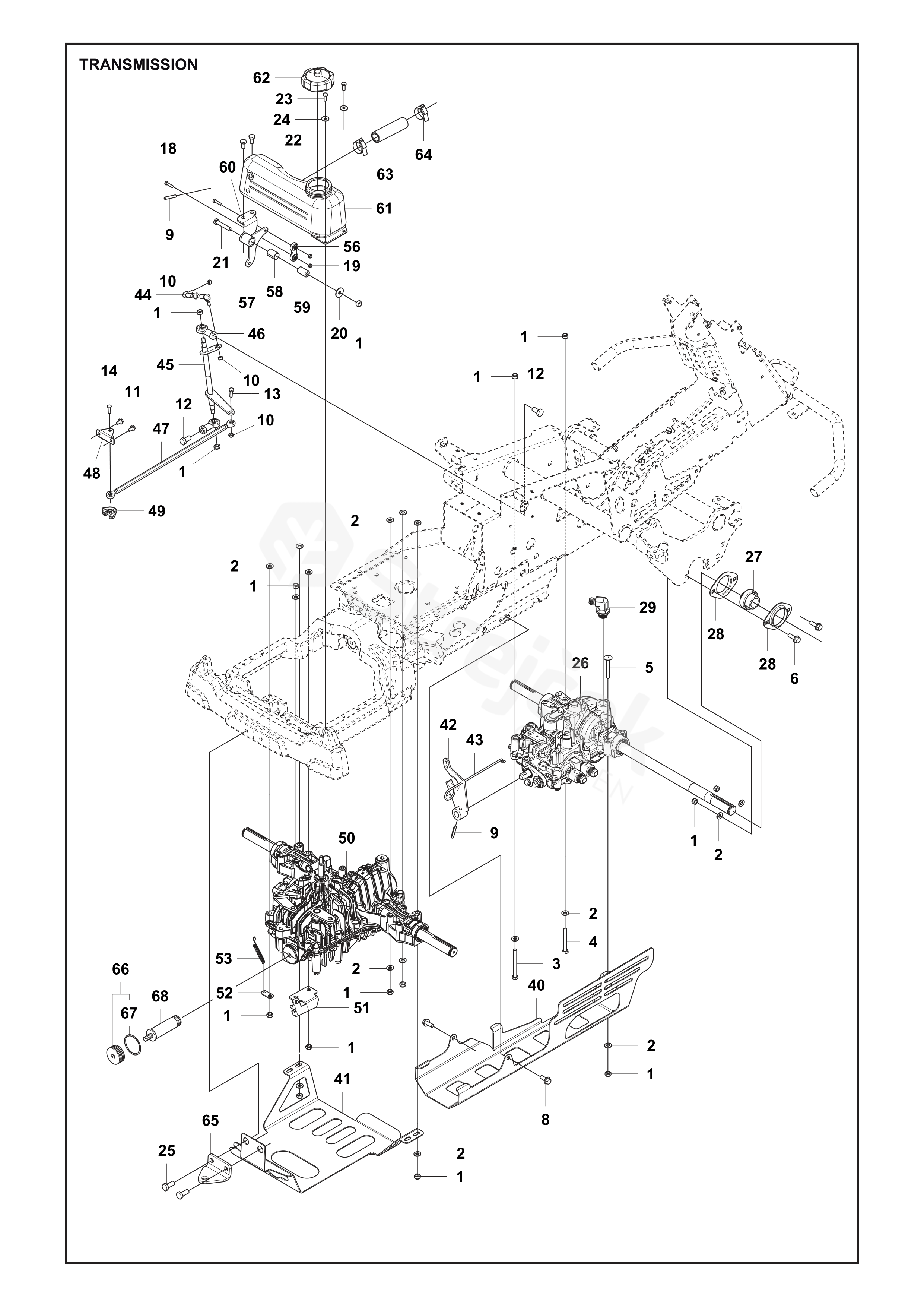

TRANSMISSION
R420TsX AWD
R 420TsX AWD (967648401 - 7391736290555)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
R 420TsX AWD
1
LOCK NUT
732211801
2
PODLOŽKA
734116401
3
SCREW EHHM
725246751
4
SCREW EHHM
725246451
5
SCREW EHHM
535423803
6
SCREW EHHFM
506570105
8
SCREW EHHFM
506570104
9
ČEP PRUŽINY
721434701
10
LOCK NUT
732211601
11
SCREW EHHFM
535475212
12
SCREW EHHM
725249171
13
SCREW EHHM
522622101
14
SCREW
544841701
18
SCREW
725233151
19
LOCK NUT
732211401
20
PODLOŽKA
734116441
21
SCREW EHHM
725246051
22
SCREW
725244951
23
SCREW EHHFT
725236861
24
PODLOŽKA
734115441
25
SCREW EHHM
725249371
26
TRANSMISSION
589751901
27
BEARING
544008902
28
BEARING HOUSING
544009002
29
PIPE FITTING
535437302
40
SKID PLATE
589563001
41
SKID PLATE
594916902
42
LEVER
578291901
43
ARM
535499701
44
ADJUSTMENT ROD
544441901
45
LEVER
592910901
46
ROD END
506951701
47
ROD
593959404
48
BRACKET
535492802
49
COVER
585001501
50
TRANSMISSION
589751701
51
BRACKET
544388101
52
ČLÁNEK
506599301
53
PRUŽINA
506834301
56
LINK RODS
544888401
57
LEVER
579596501
58
BUSHING
506986103
59
PIPE
506992001
60
BRACKET
544388501
61
EXPANSION TANK
544388601
62
TANK CAP ASSY
506673301
63
HOSE
535458302
64
HADICOVÁ SVĚRKA
505443601
65
HITCH
506889901
66
KIT
574515101
67
O-RING
574515201
68
FILTER
586666801
