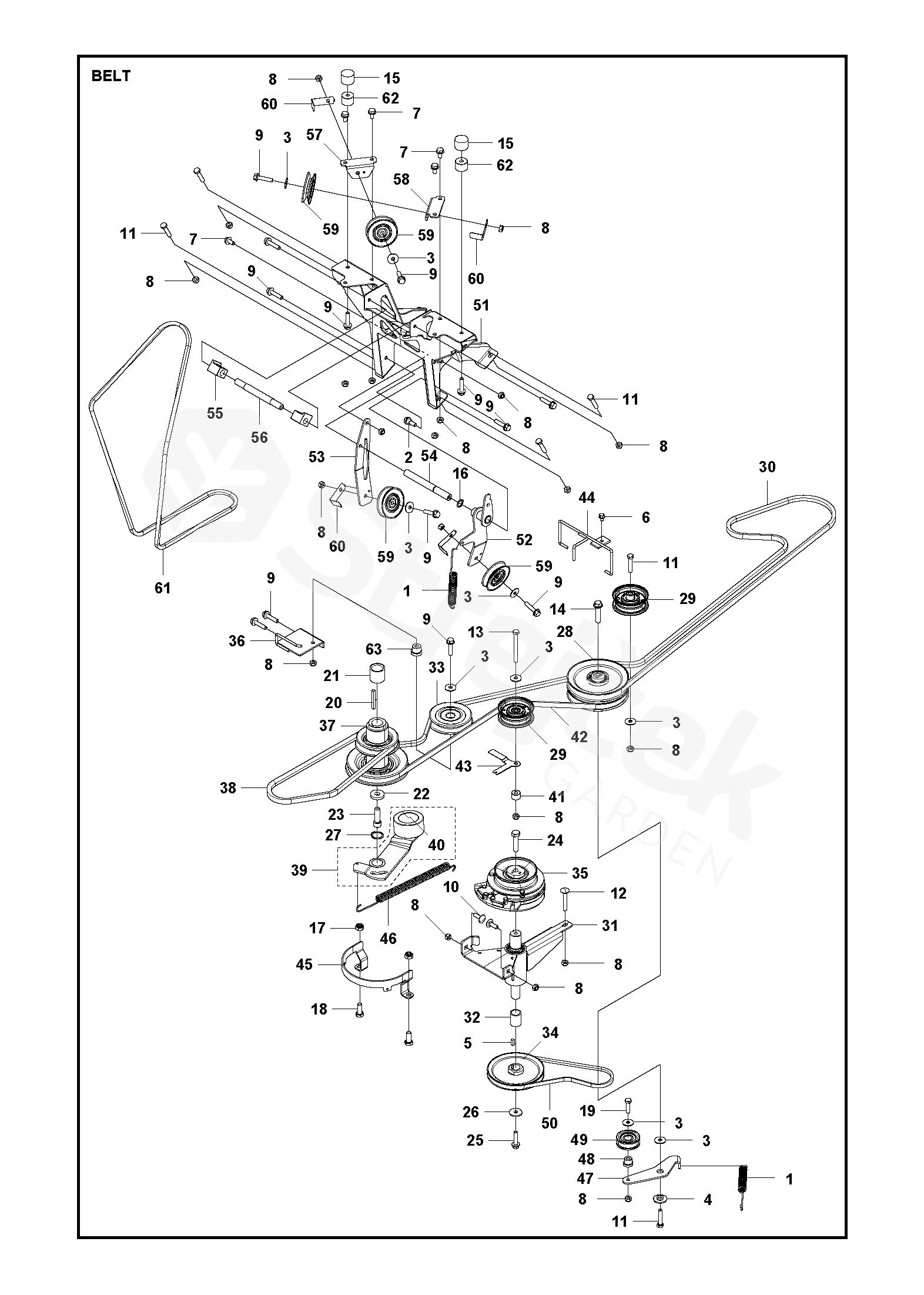

RC 318T RC 318T (967628702 - 7391736587747, 970621101 - 7333377056084)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For RC 318T

1	PRUŽINA	582381401
2	SCREW EHHFM	506597401
3	PODLOŽKA	734116441
4	PODLOŽKA	574874101
5	PARALELNÍ KLÍN	506533501
6	SCREW EHHFT	725236461
7	SCREW EHHFM	506570103
8	LOCK NUT	732211801
9	SCREW EHHFM	506570106
10	SCREW RSQM	535423801
11	SCREW EHHM	725245951
12	SCREW RSQM	535423802
13	SCREW EHHM	725246751
14	SCREW EHHFM	506675403
15	ANTIVIBRAČNÍ PRVEK	544252102
16	CIRCLIP	735311700
17	MATICE	732212051
18	SCREW EHHM	725249371
19	SCREW EHHM	725245571
20	KLÍN	506555901
21	ROZPĚRNÉ POUZDRO	506509201
22	PODLOŽKA	506597501
23	SCREW UNC	506556002
24	SCREW	588793201
25	SCREW	582508501
26	BELT COVER	544221601
27	CIRCLIP	735312600
28	PULLEY ASSY	582176501
29	PULLEY	597509002
30	BELT	593667401
31	BRACKET	590040001
32	ROZPĚRNÉ POUZDRO	589026301
33	PULLEY	506974801
34	PULLEY ASSY	588830901
35	CLUTCH	589243401
36	BRACKET	582199001
37	PULLEY	535482401
38	BELT	589562301
39	BELT TENSIONER ASSY	535484403
40	SEALING	535485001
41	BUSHING	588867301
42	BELT	589973901
43	BELT GUIDE	588979801
44	BELT GUIDE	588980001
45	BELT GUIDE	587425201
46	PRUŽINA	506665601
47	BELT TENSIONER	588878801
48	BUSHING	588820101
49	PULLEY	589243701
50	BELT	589974001
51	BRACKET	588839001
52	BELT TENSIONER	588978301
53	LIST	582221601
54	HRÍDEL	588979301
55	OPĚRNÁ MISKA	589734301
56	HRÍDEL	588979401
57	BRACKET	589032201
58	BRACKET	589032202
59	BELT TENS WHEEL ASSY	506946901
60	BELT GUIDE	588978801
61	BELT	589974101
62	POUZDRO	588878302
63	POUZDRO	590087901
