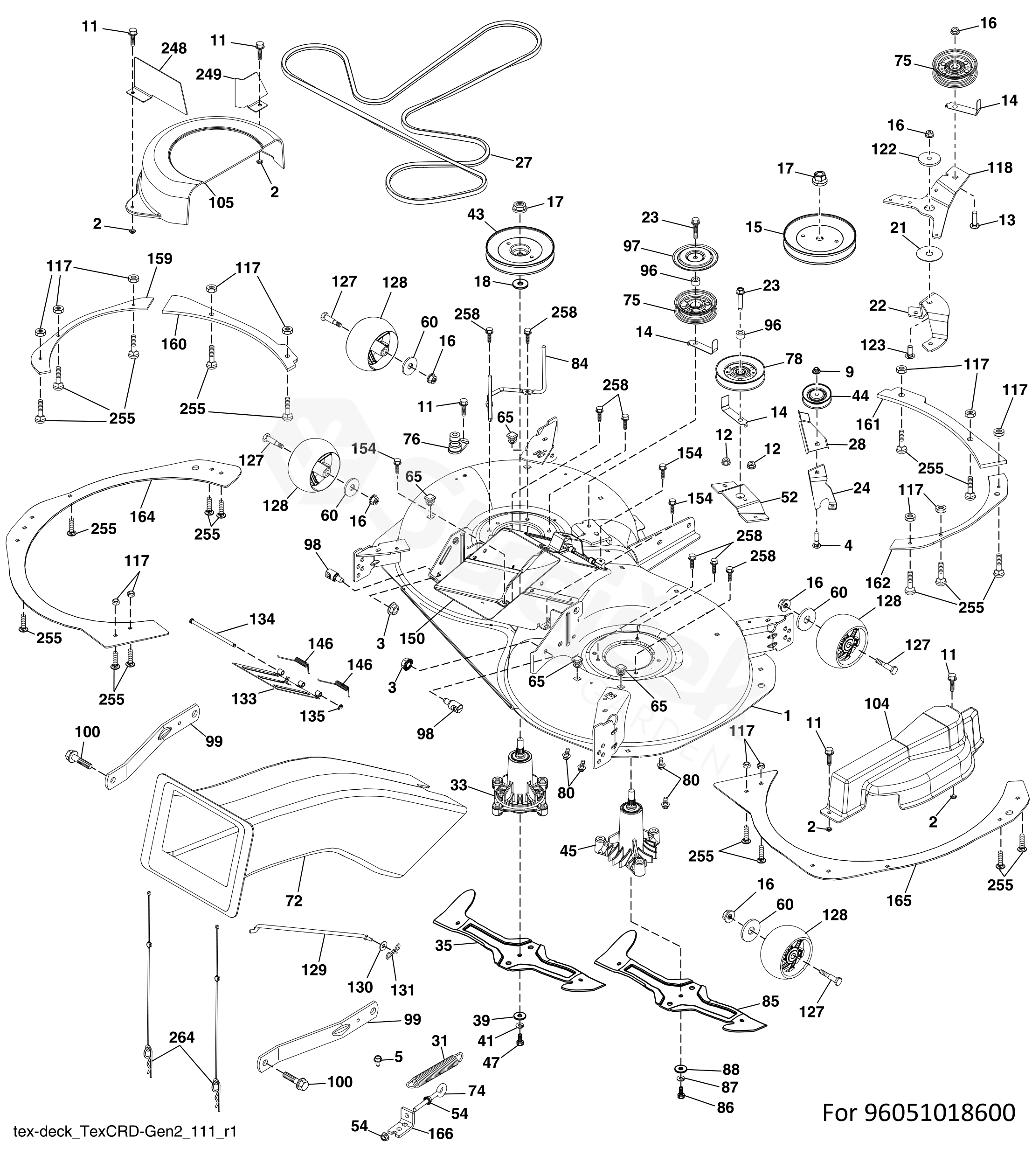

TC 342 TC 342 (960510129 - 7393089103940)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TC 342

1	SERVICE KIT	596762801
2	MATICE	532423062
3	LOCK NUT RH	596135701
4	BOLT	872110510
5	BOLT	817000510
9	BOLT	585691301
11	SCREW	532137729
12	BOLT RETAINER 3/8	539112899
13	BOLT	596136101
14	BELT GUIDE	532156085
15	PULLEY	532195945
16	MATICE	873900600
17	MATICE	532400234
18	PODLOŽKA	532187690
21	PODLOŽKA	532178515
22	BRACKET	592854702
23	BOLT	596564003
24	BRACKET	594972903
27	BELT	592869301
28	KEEPER	592865902
31	PRUŽINA	587358401
33	MANDREL	587819701
35	RIDE ON BLADE	532180583
39	PODLOŽKA	581526501
41	WASHER	596238901
43	PULLEY	532443239
44	PULLEY	532199534
45	SPINDLE	532165579
47	SCREW	584309301
52	BRACKET	594972603
54	LOCK NUT	596039201
60	WASHER	596134901
65	PLUG	596952201
72	CHUTE	581454103
74	BOLT	596240801
75	PULLEY	532173438
76	PORT.WASHOUT	532415598
78	PULLEY	532173902
80	BOLT	595901601
84	HLÍDAČ	532443235
85	RIDE ON BLADE	532180584
86	BOLT	532181713
87	WASHER	596238701
88	PODLOŽKA	532140296
96	ROZPĚRKA	532400271
97	PROTECTOR	532182061
98	STUD	593824001
99	ARM	532195186
100	BOLT	532196539
104	GUARD	592865701
105	COVER	532444755
117	MATICE	873900400
118	ARM	592865802
122	SPACER	532165723
123	BOLT	596987501
127	BOLT	596434404
128	WHEEL	589527301
129	ROD	532443237
130	WASHER	596133201
131	KOLÍČEK	532194208
133	COVER	532438197
134	PEN	532435861
135	KROUŽEK	532437988
146	PRUŽINA	532445896
150	CHUTE ASSY	596013002
154	SCREW	532199855
159	REINFORCEMENT PLATE	585309405
160	REINFORCEMENT PLATE	585309505
161	REINFORCEMENT PLATE	585316005
162	REINFORCEMENT PLATE	585316105
164	BAFFLE PLATE	589358502
165	BAFFLE	587426102
166	BRACKET	592856001
248	GUARD	589009802
249	GUARD	589009702
255	BOLT	539109800
258	BOLT	584953901
264	RETAINER	589392902
