Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TC 239T TC 239T > ENGINE
Back to
ENGINE

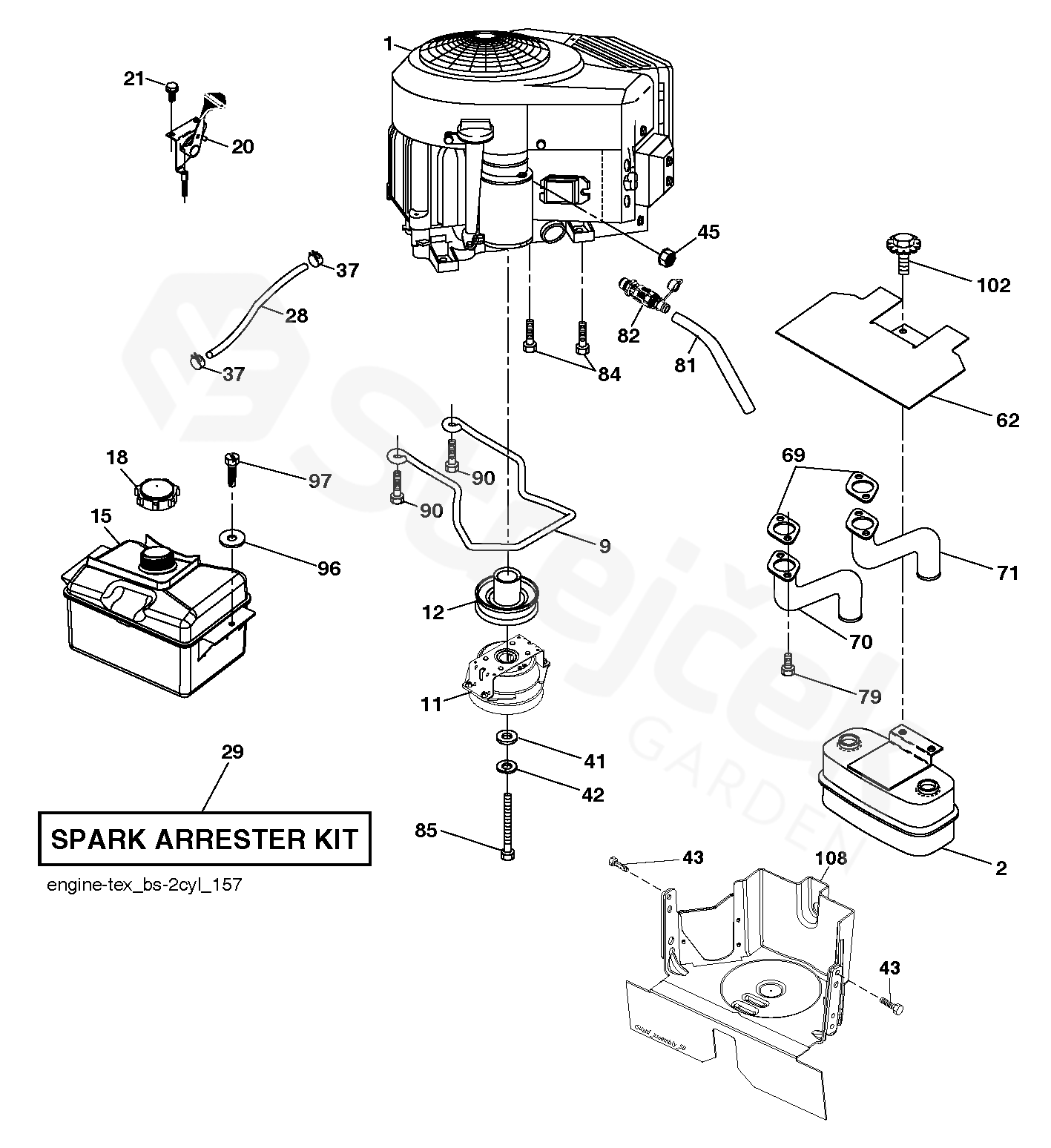

TC 239T TC 239T (960510182 - 7391883946763, 960510147 - 7391736238847)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TC 239T
1 DUMMY PART
Engine B&S Model No. 40U777-0006-B1 (593105201) For 96051018200 - 40U777-0006-B5(593105201) For 96051014700-01 		900000002
2 MUFFLER 589818701
9 KEEPER 501832602
11 CLUTCH
For 96051018200 		592821701
12 PULLEY 532405097
15 TANK 581290101
18 HUB CAP 532430220
20 THROTTLE 587242501
21 SCREW 532416358
28 FULE LINE 532142158
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
41 WASHER 532126197
42 PODLOŽKA 539990247
43 SCREW 817060516
45 MATICE 873510400
62 SHIELD 532434017
69 GASKET 532165391
70 TUBE 581881101
71 TUBE 581881001
79 SCREW 532183906
81 TRUBKA 532148456
82 PLUG 532428287
84 SCREW 817060620
85 BOLT 501606601
90 SCREW 817000616
96 PODLOŽKA 819091416
97 SCREW 817670412
102 SCREW 817000512
108 COVER 587179510
