Spare parts > Husqvarna > Commercial Riders > Husqvarna PT 26D Husqvarna PT 26D > CONTROLS
Back to

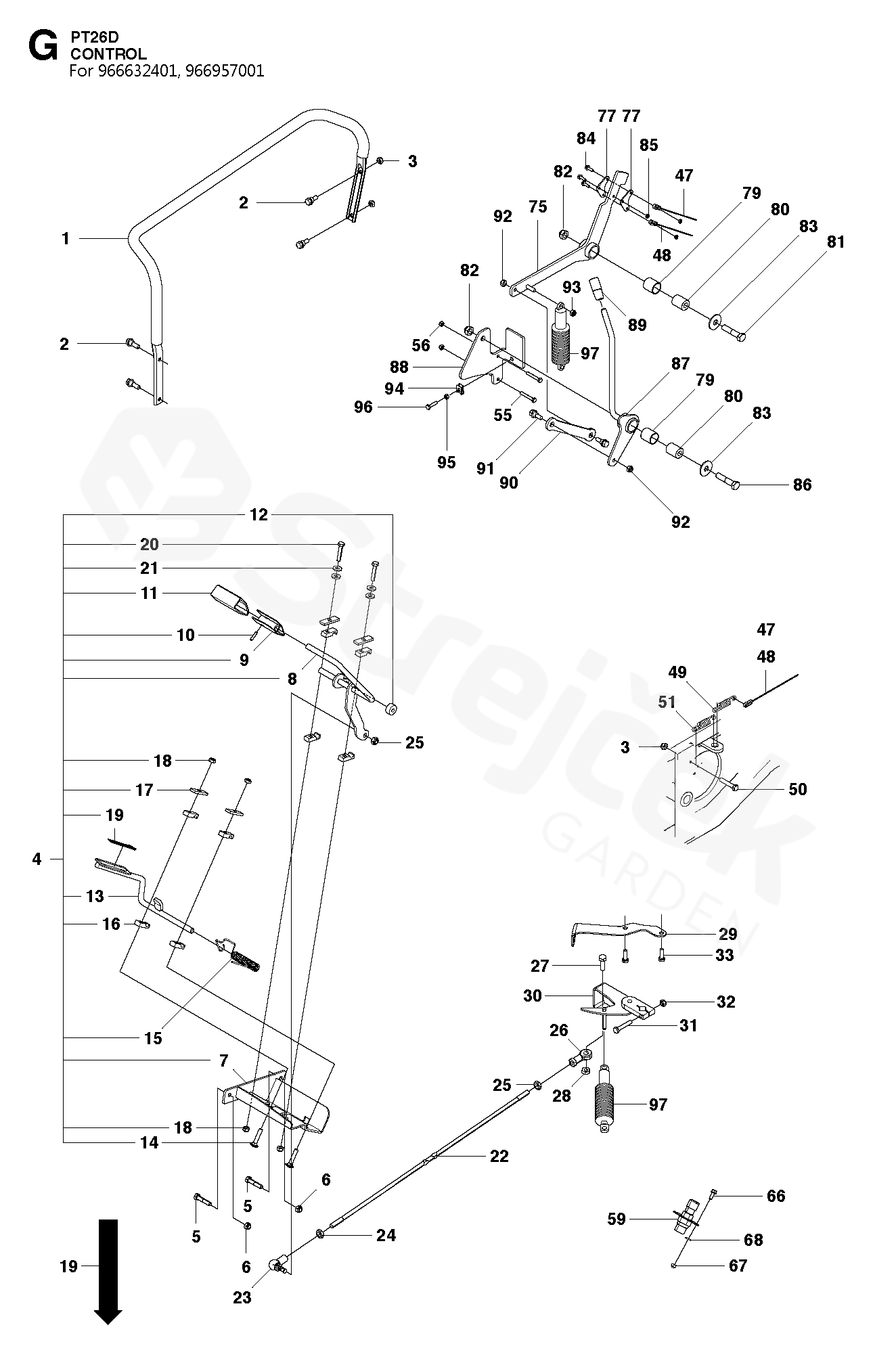

CONTROLS
Husqvarna PT 26D Husqvarna PT 26D (965160601 - 7391883155226, 966632401 - 7391883631034, 966957001 - 7391883216385)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Husqvarna PT 26D
1 HANDLE ASSY 544255101
2 SCREW EHHFM 506597401
3 LOCK NUT 732211801
4 PEDAL PLATE ASSY 544290001
5 SCREW EHHM 725246251
6 LOCK NUT 732211801
7 PEDAL PLATE 544288801
8 HYDROSTATIC PEDAL 544289401
9 FOOTPLATE 535479901
10 SPRING PIN 721430970
11 PEDAL RUBBER 506506201
12 ROLLER 535459901
13 REVERSE PEDAL 544289101
14 SCREW 727645951
15 SPRING 535459501
16 BEARING SUPPORT 506954101
17 PLATE 506804101
18 NUT 731211801
19 LABEL 544338201
20 SCREW EHHM 725245951
21 PODLOŽKA 734116401
22 ROD 506814909
23 VINKELLÄNK DIN 71802 506789901
24 MATICE 506897601
25 MATICE 732212051
26 ROD END 506951701
27 SCREW EHHM 725249571
28 MATICE 732212051
29 SHEET 505149201
30 CONTROL UNIT 505149501
31 SCREW EHHM 725246071
32 LOCK NUT 732211801
33 SCREW EHHM 725245351
47 WIRE ASSY 544357601
48 WIRE ASSY 544357602
49 BRAKE SPRING 506946301
50 SCREW EHHM 725246071
51 PRUŽINA 506542501
55 SCREW EHHFM 535475245
56 LOCK NUT 732211601
59 DIFFERENTIAL PEDAL ASSY 522454201
66 SCREW 725236851
67 LOCK NUT 732211601
68 SPRING 734115601
75 PARKING BRAKE 521902701
77 LINK 544290301
79 GLIDLAGER 506986101
80 SLEEVE 544279401
81 SCREW EHHM 725254351
82 HEXAGON LOCKING NUT 732252201
83 PODLOŽKA 734118041
84 SCREW 725233151
85 LOCK NUT 732211401
86 SCREW EHHM 725254351
87 BRAKE LEVER 521903101
88 BRACKET 521902901
89 KNOB 521903501
90 LINK 521903601
91 SCREW EHHFM 506597401
92 LOCK NUT 732211801
93 HEXAGON NUT 731231601
94 MATICE 535429101
95 HEXAGON NUT 731231601
96 SCREW EHHM 725237271
97 DAMPING PIECE 506938301
