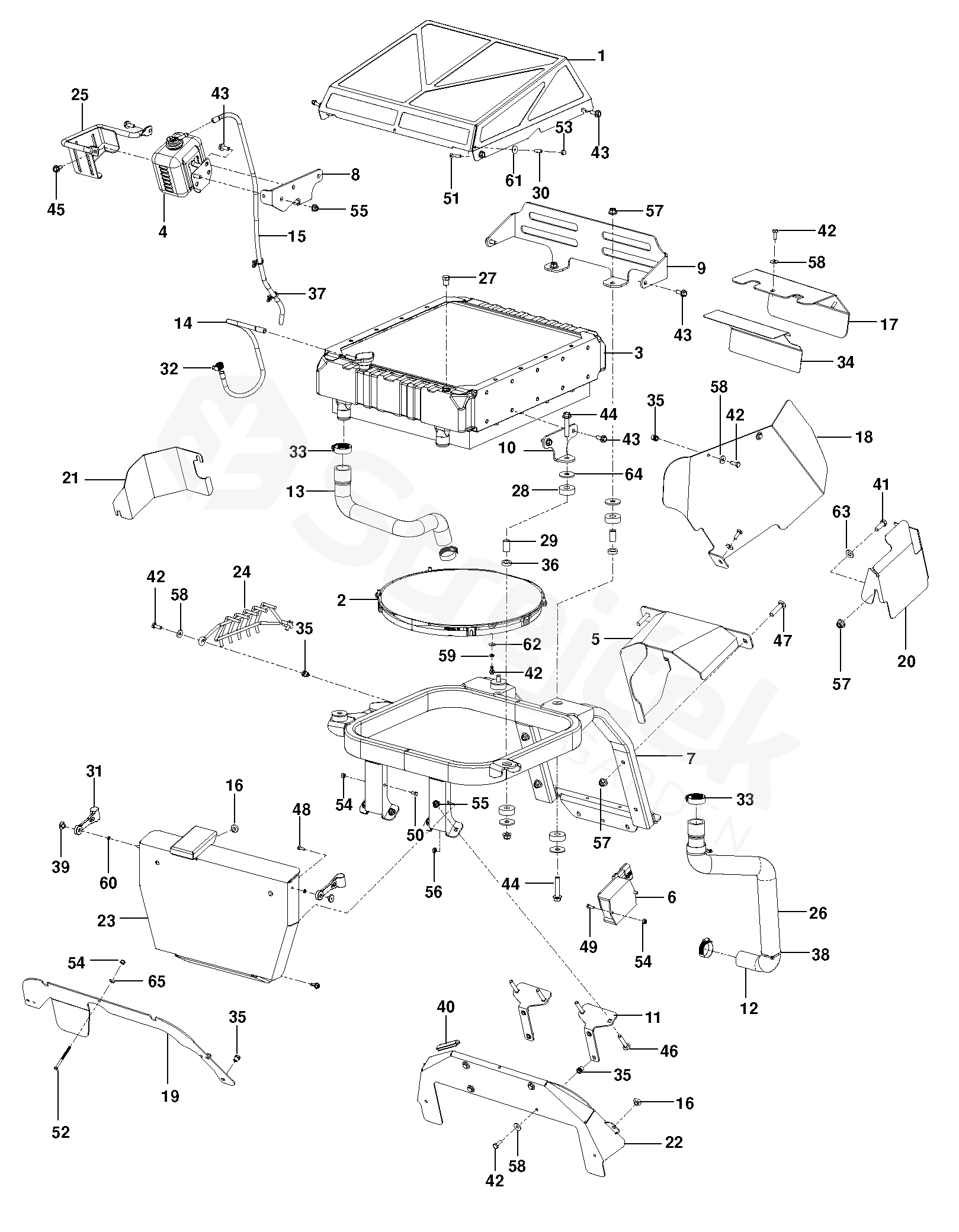

PZ 29D PZ 29D (966616701 - 7391883663844)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PZ 29D

1	SCREEN	574356108
2	FAN	516018601
3	RADIATOR	574351601
4	BOTTLE	522503501
5	SHIELD w/ SAFETY DECAL	574722305
6	MODULE	574431401
7	MOUNT	574432702
8	MOUNT	574841002
9	MOUNT	574433802
10	MOUNT	574433702
11	GUARD	577251402
12	HOSE LT	574431101
13	HOSE RT	574431001
14	HOSE	574845401
15	HOSE	574845402
16	ABSORBER	539102587
17	GUARD	577100302
18	GUARD	577100402
19	PLATE	577100502
20	GUARD	577100102
21	GUARD	577100002
22	GUARD	577250902
23	GUARD w/ DECAL w/ SAFETY DECAL	575315003
24	GUARD	577100601
25	GUARD	575256402
26	SLEEVE	575867701
27	FITTING	574596801
28	ISO-MOUNT BUSHING	539116378
29	ISO MT. BUSHING	539121367
30	SPACER LT	539108085
31	HOOD LATCH	539108088
32	CLAMP	576286001
33	CLAMP	539106321
34	SHIELD	577100701
35	INSERT	539108147
36	ISO-MOUNT INSERT	539116377
37	STAHOVACÍ PÁSKA	505280001
38	TIE WRAP	539976856
39	WELDNUT	539108089
40	FLEX TRIM. BLACK - DROP SHIP	539112294
41	SCREW	539990563
42	SCREW	539990580
43	SCREW	525464701
44	HHFS	525866201
45	BOLT	539107475
46	SCREW	539990861
47	RHSNB 3/8-16X1-3/4 GR 5 ZD	539990923
48	SCREW	539107631
49	SCREW	539976952
50	SCREW	539990411
51	SCREW	539108083
52	SCREW	577503401
53	NUT	539108086
54	NUT	539976977
55	BOLT RETAINER 3/8	539112899
56	MATICE	539108120
57	MATICE	521996501
58	WASHER	539990598
59	PODLOŽKA	539990052
60	WASHER - 3/8	539109552
61	WASHER	539108084
62	WASHER 1/4 SAE	539990055
63	WASHER	539990122
64	7/16 HD FLAT WASHER	539115516
65	WASHER #10	539105408
