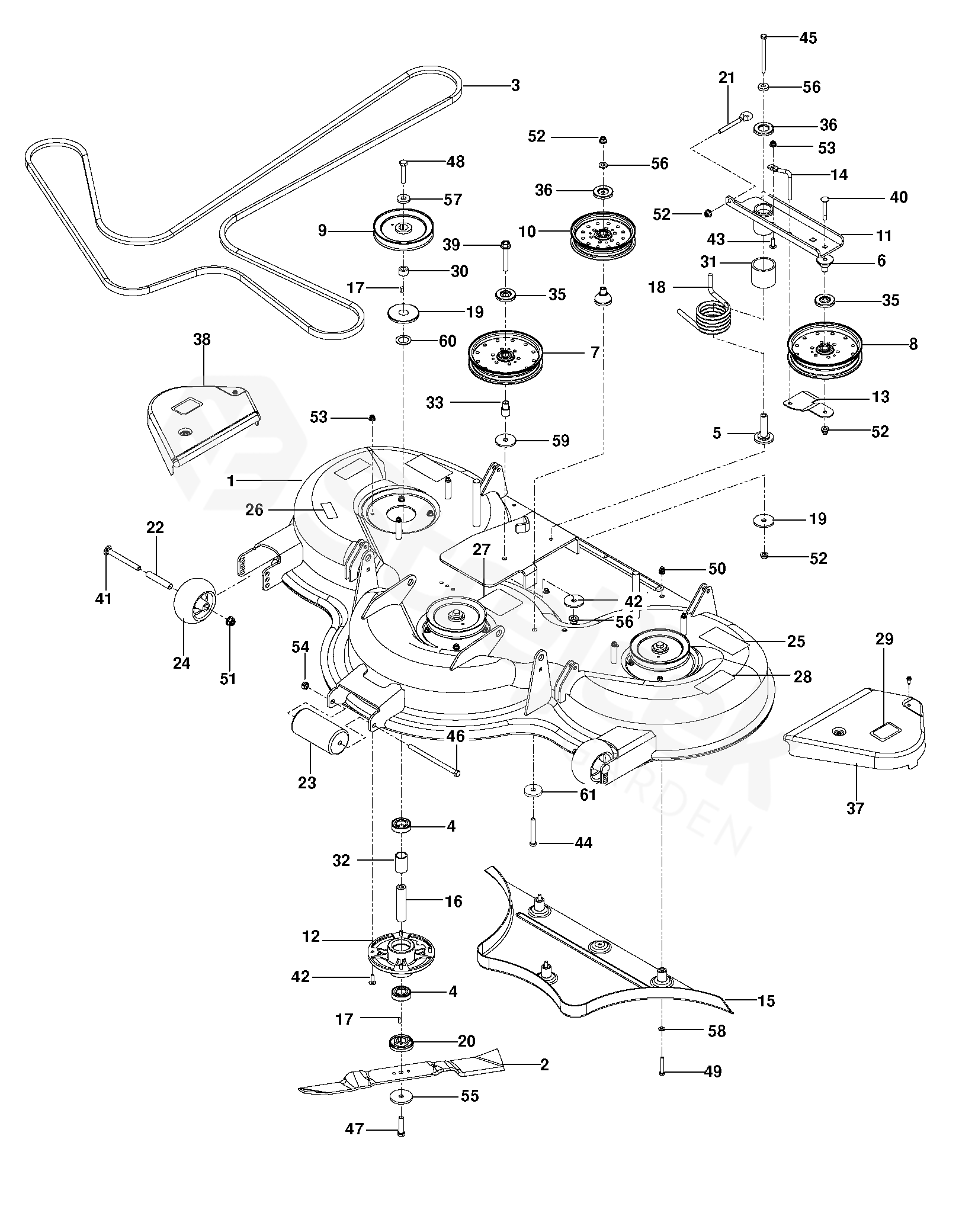

Spare parts - Partlist - PZ 29D PZ 29D - MOWER DECK / CUTTING DECK

Everything for your machines

PZ 29D PZ 29D (966616701 - 7391883663844)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PZ 29D

1	DECK w/ SAFETY DECALS w/ SAFETY DECALS	576380201
2	BLADE	586198910
3	BELT	522860201
4	BALL BEARING	738220519
5	BEARING	522729701
6	BEARING	510263701
7	PULLEY	525598201
8	PULLEY	510015101
9	PULLEY	539112507
10	PULLEY	510019601
11	ASSEMBLY	574722201
12	BEARING HOUSING	535428901
13	GUIDE	574262102
14	KEEPER	574262201
15	PLUG ASSY	544166401
16	SHAFT	535428702
17	PARALELNÍ KLÍN	506533501
18	SPRING	525310901
19	HUB CAP	539108450
20	BUSHING. BLADE	539132778
21	EYEBOLT	574202001
22	TRUBKA	574196401
23	ROLLER	544185401
24	ROLLER	574169601
25	DECAL	539105746
26	DECAL	539112537
27	DECAL	574437301
28	DECAL	539105744
29	DECAL	539105743
30	SPACER	539112609
31	SPACER	525465601
32	SPACER	535428801
33	SPACER - IDLER	539114582
35	SHIELD	510262201
36	KRYT	510254501
37	PROTECTOR	539112508
38	PROTECTOR	539112509
39	HHFS	525828901
40	SCREW	539128101
41	SCREW	510022301
42	SCREW	539990208
43	SCREW	539107271
44	SCREW	539102612
45	SCREW	539101686
46	HCS 7/16-14 X 7 GR5 ZD	539132470
47	HCS M12 X 1.75 X 50 GR8.8 ZD	539132480
48	HCS M12 X 1.75 X 60 GR5 ZD	539132479
49	HCS M8 X 1.25 X 50 GR8.8 ZD	539132494
50	BLIND RIVET NUT	506916203
51	MATICE	521991101
52	MATICE	521996501
53	BOLT RETAINER 3/8	539112899
54	NUT	539990839
55	KNIFE PLATE	506792302
56	NUT, 5/16-18, NYLOC	522023401
57	WASHER	539115550
58	PODLOŽKA	539990188
59	WASHER	539111844
60	WASHER-1.06IDX1.63ODX.06	539127099
61	PODLOŽKA	539106504
