Spare parts > Husqvarna > CHAIN SAWS > 435i 435i > CLUTCH COVER
Back to

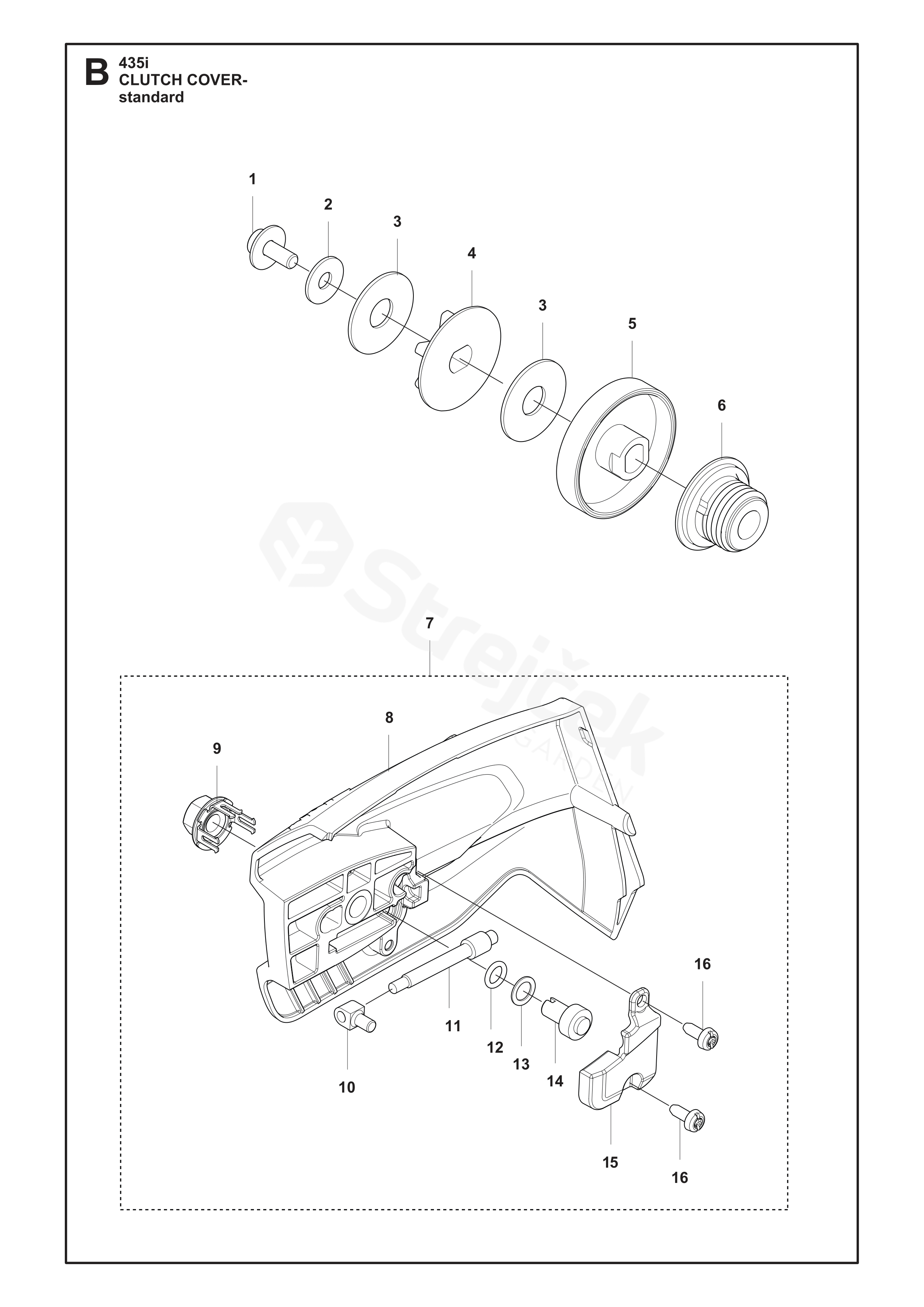

CLUTCH COVER
435i 435i (970718014 - 7333377468047)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 435i
1 SCREW ITXSCFM 525755105
2 WASHER 503230035
3 DISC SPRING 597670101
4 SPUR SPROCKET 594035201
5 BRAKE DRUM 593684401
6 PUMP PINION 595342201
7 CLUTCH COVER ASSY 593052002
8 CLUTCH COVER 593051702
9 MATICE 505197301
10 PIN 588850301
11 ŠROUBOVÁK NA ČERVÍKY 537397001
12 O-KROUŽEK 740480702
13 PODLOŽKA 503230063
14 WORM WHEEL 599724101
15 COVER LID 505214501
16 SCREW CITXPANT 526221801
