Spare parts > Husqvarna > CHAIN SAWS > 540i XP 540i XP > CLUTCH
Back to

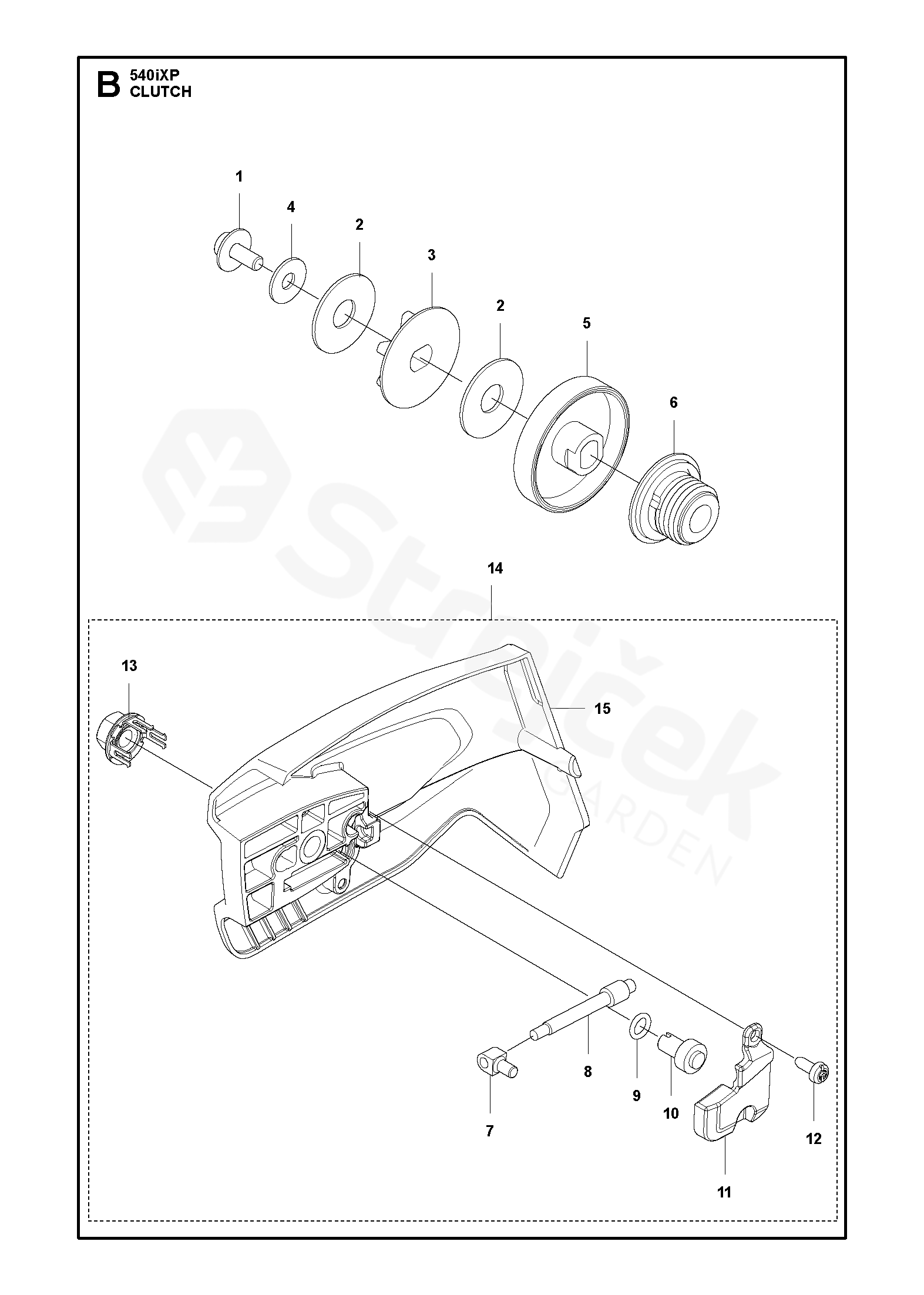

CLUTCH
540i XP 540i XP (967864014 - 7391736618656)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 540i XP
1 SCREW ITXSCFM 525755105
2 DISC SPRING 597670101
3 SPUR SPROCKET
.325"mini - 7T 		594035201
4 WASHER 503230035
5 BRAKE DRUM 593684401
6 PUMP PINION
Assy 		593784801
7 PIN 588850301
8 ŠROUBOVÁK NA ČERVÍKY 537397001
9 O-KROUŽEK 740480702
10 WORM WHEEL 599724101
11 COVER LID
Chain Tensioner 		505214501
12 SCREW CITXPANT 526221801
13 MATICE
Retainer Assy 		505197301
14 CLUTCH COVER ASSY
Assy 		594030302
15 CLUTCH COVER 594030202
