Spare parts > Husqvarna > CHAIN SAWS > 542i XP 542i XP > CLUTCH
Back to

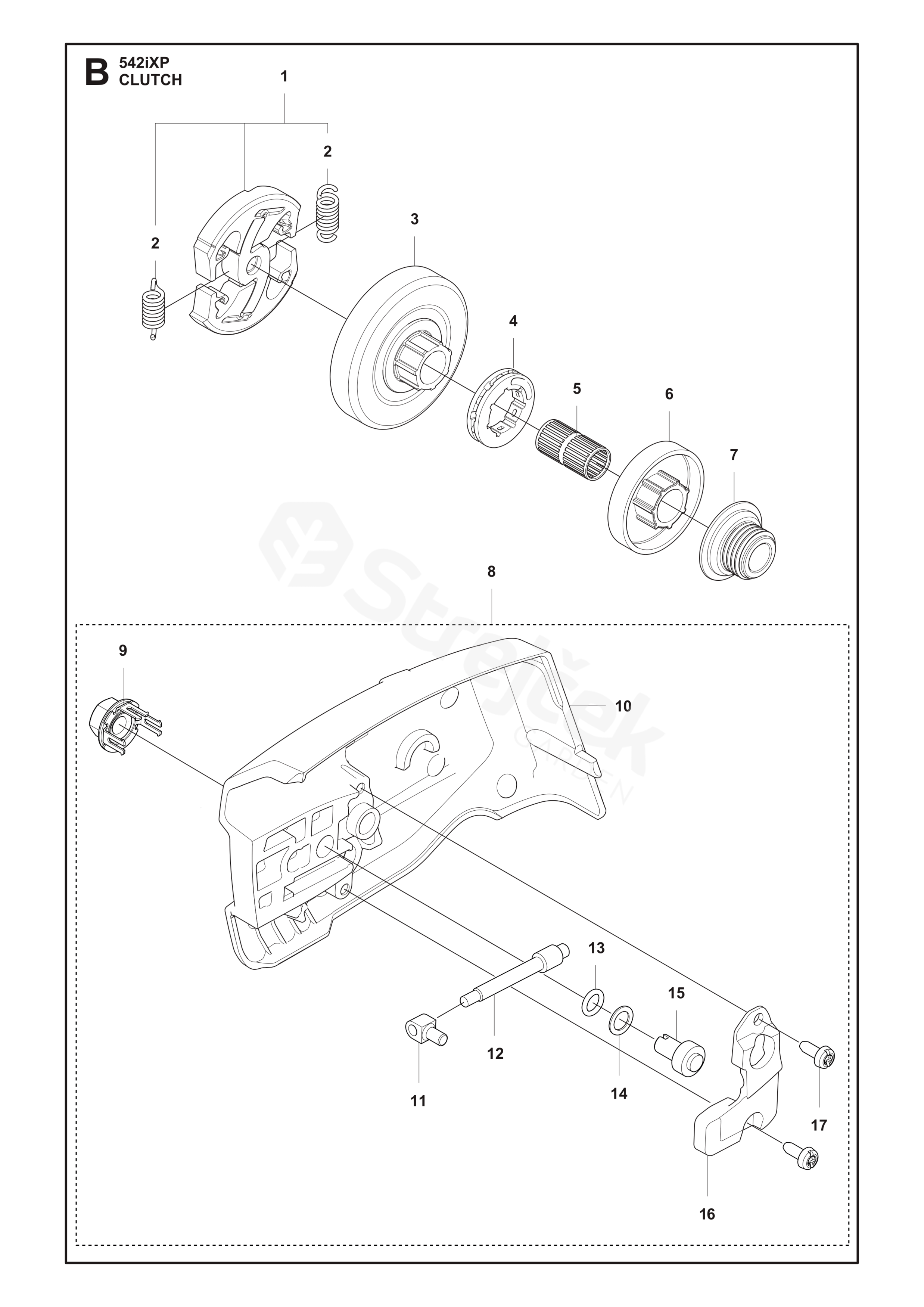

CLUTCH
542i XP 542i XP (970647014 - 7333377075603)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 542i XP
1 CLUTCH ASSY 546444101
2 CLUTCH SPRING 546249001
3 CLUTCH DRUM ASSY 536999001
4 RÁFEK 501457402
5 NEEDLE BEARING 536995301
6 BRAKE DRUM 536977401
7 PUMP PINION 536878701
8 CLUTCH COVER ASSY 536885801
9 MATICE 505197301
10 CLUTCH COVER 536885901
11 PIN 588850301
12 ŠROUBOVÁK NA ČERVÍKY 537397001
13 O-KROUŽEK 740480702
14 PODLOŽKA 503230063
15 WORM WHEEL 599724101
16 COVER 536886001
17 SCREW CITXPANT 526221801
