Spare parts > Husqvarna > CHAIN SAWS > T540i XP T540i XP > CLUTCH
Back to

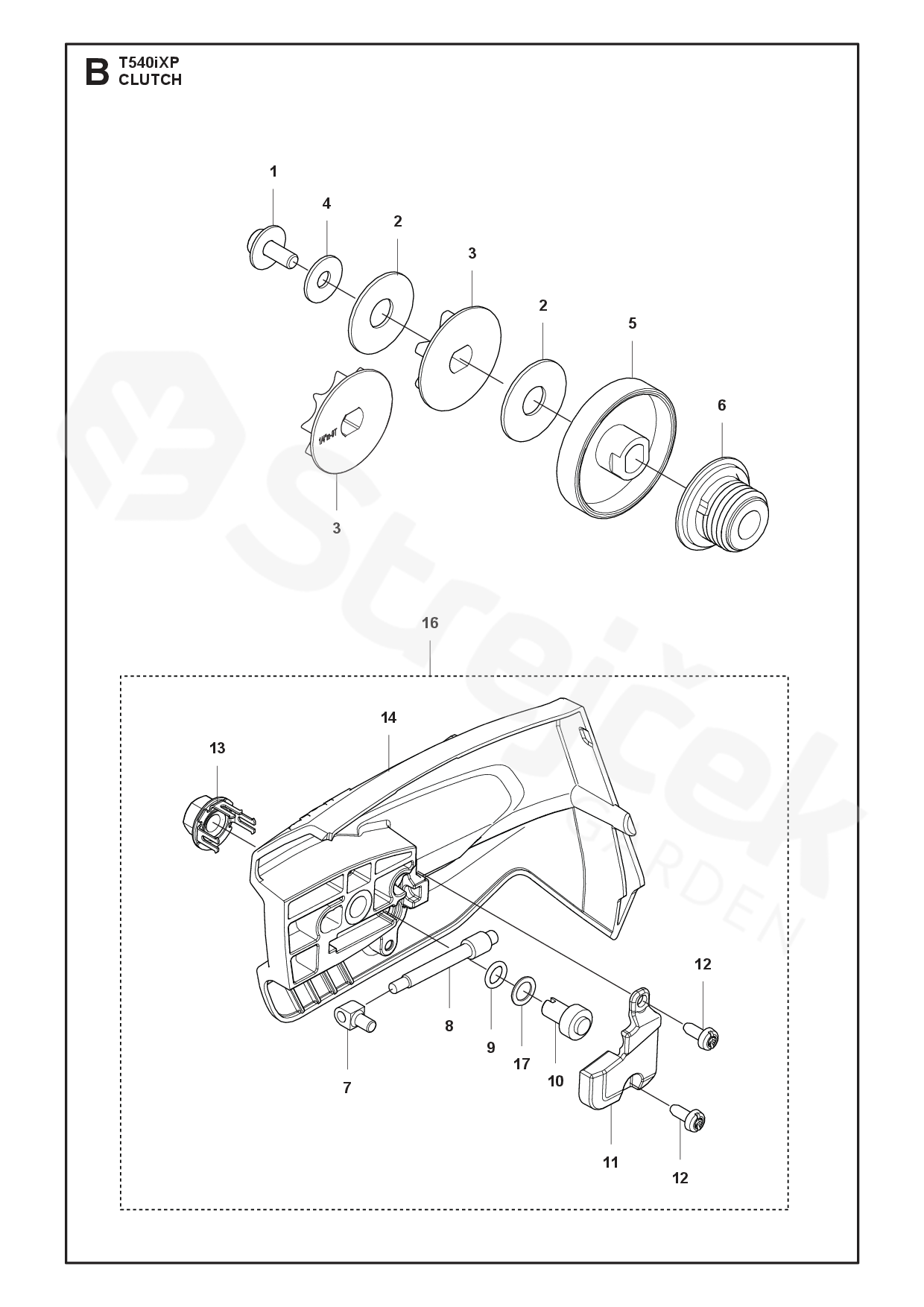

CLUTCH
T540i XP T540i XP (970572314 - 7392930946446)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For T540i XP
1 SCREW ITXSCFM 525755105
2 DISC SPRING 597670101
3 SPUR SPROCKET
.325”mini – 7T - SP21G 		594035201
4 WASHER 503230035
5 BRAKE DRUM 593684401
6 PUMP PINION 593784801
7 PIN 588850301
8 ŠROUBOVÁK NA ČERVÍKY 537397001
9 O-KROUŽEK 740480702
10 WORM WHEEL 599724101
11 COVER LID
Chain Tensioner 		505214501
12 SCREW CITXPANT 526221801
13 MATICE
Retainer Assy 		505197301
14 CLUTCH COVER 593051702
16 CLUTCH COVER ASSY 593052002
17 PODLOŽKA 503230063
