Spare parts > Husqvarna > CHAIN SAWS > T540i XP T540i XP > CHAIN BRAKE
Back to

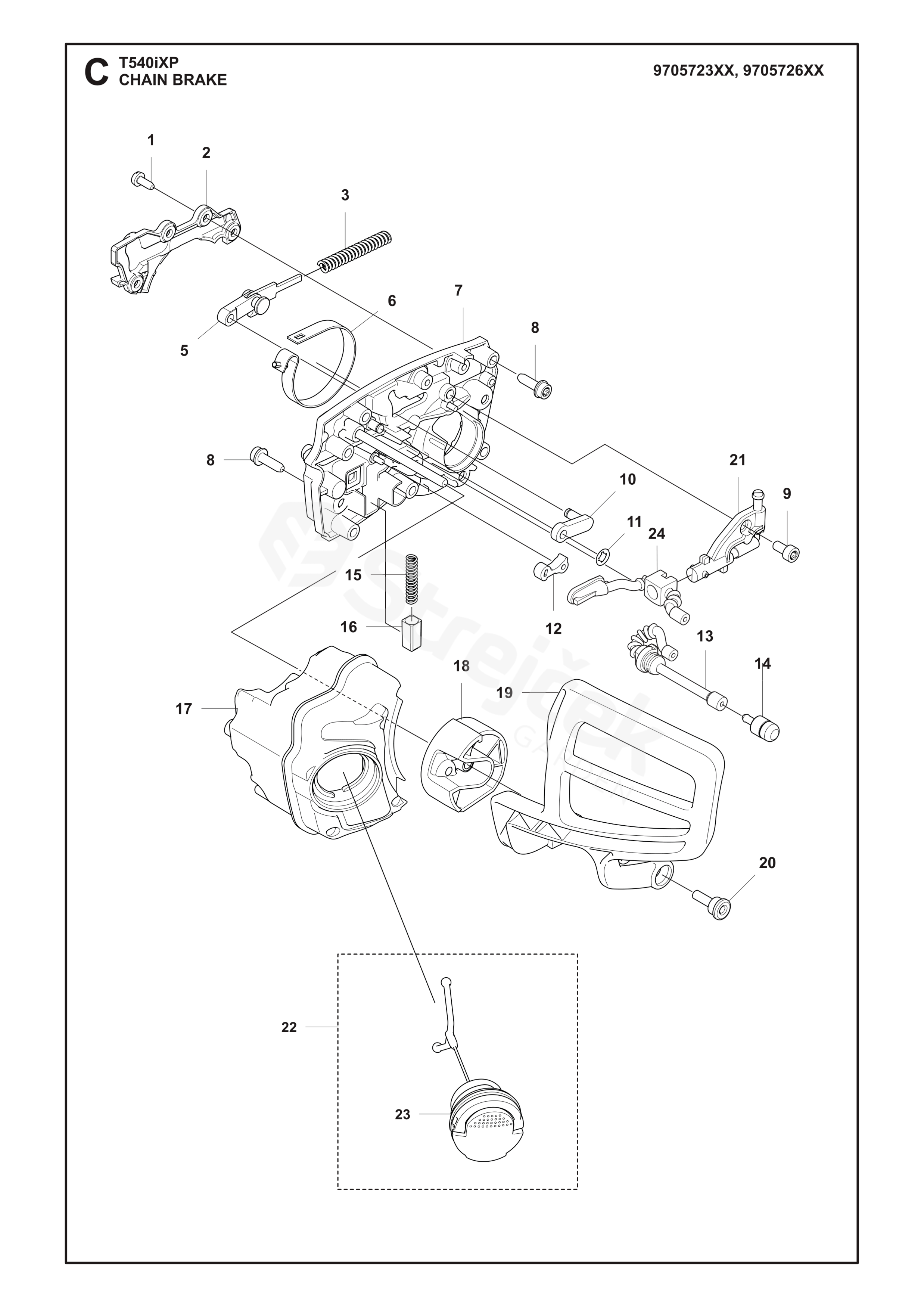

CHAIN BRAKE
T540i XP T540i XP (970572314 - 7392930946446)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For T540i XP
1 SCREW CITXPANT 526221801
2 COVER 593641601
3 BRAKE SPRING 595026101
4 WASHER 596302401
5 KNEE JOINT ASSY 593722101
6 BRAKE BAND 585590301
7 CHASSIS ASSY 596272401
8 SCREW ITXSCFT 573925801
9 SCREW IHSCM 725532555
10 DRIVE LINK 593722301
11 WASHER 596302401
12 CATCH 505201201
13 OIL HOSE 599976801
14 OIL PLUMMET 504710003
15 POLOHOVÁ PRUŽINA 503436501
16 SPRING GUIDE 537210701
17 OIL TANK 531344901
18 HAND GUARD 593191801
19 HAND GUARD 593191901
20 SCREW 580284201
21 OIL PUMP ASSY 544180103
22 TANK CAP ASSY 522620003
23 GASKET 589241101
24 OIL HOSE 599976901
