Spare parts > Husqvarna > CHAIN SAWS > T542i XP T542i XP > CHASSIS
Back to

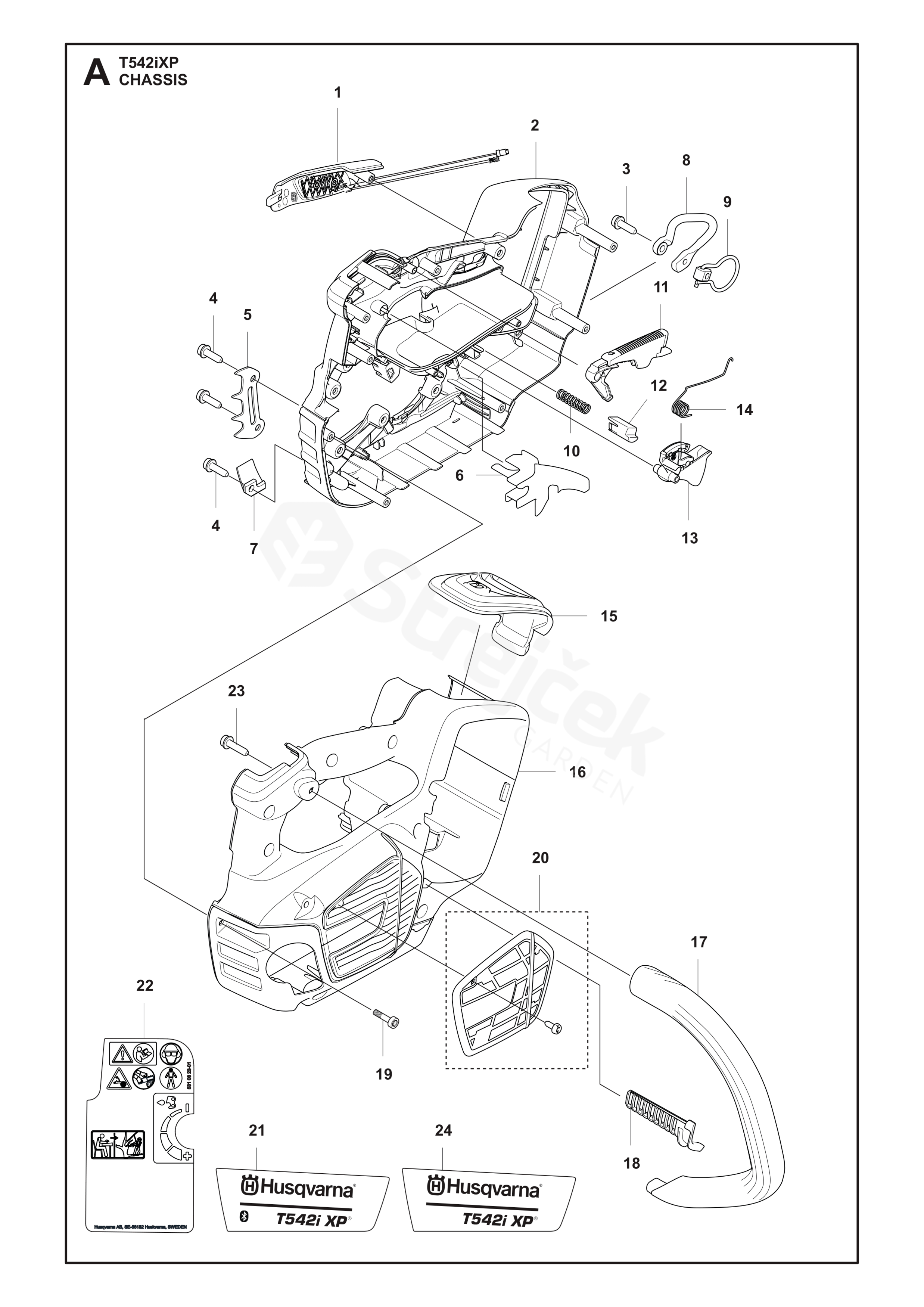

CHASSIS
T542i XP T542i XP (970646814 - 7333377075467)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For T542i XP
1 HANDLE INSERT 593049101
2 CHASSIS 593048302
3 SCREW ITXSCFM 522847901
4 SCREW ITXSCFT 573925801
5 INDRE BARKSTØD 577286601
6 AIR CONDUCTOR 593849501
7 CHAIN CATCHER 505288501
8 LOOP 576381301
9 LOOP 580860002
10 PRUŽINA 585480001
11 THROTTLE LOCKOUT 589273901
12 PUSH BUTTON 577996601
13 THROTTLE CONTROL ASSY 595307001
14 SPRING 593064201
15 COVER 593049001
16 CHASSIS 593048403
17 FRONT HANDLE 593048501
18 AIR INTAKE 594035701
19 SCREW ITXSCT 580292901
20 COVER KIT 597682701
21 DECAL 538837101
22 LABEL 531082301
23 SCREW ITXSCFT 573925804
24 DECAL 538837102
