Spare parts > Husqvarna > CHAIN SAWS > T542i XP T542i XP > CHAIN BRAKE
Back to

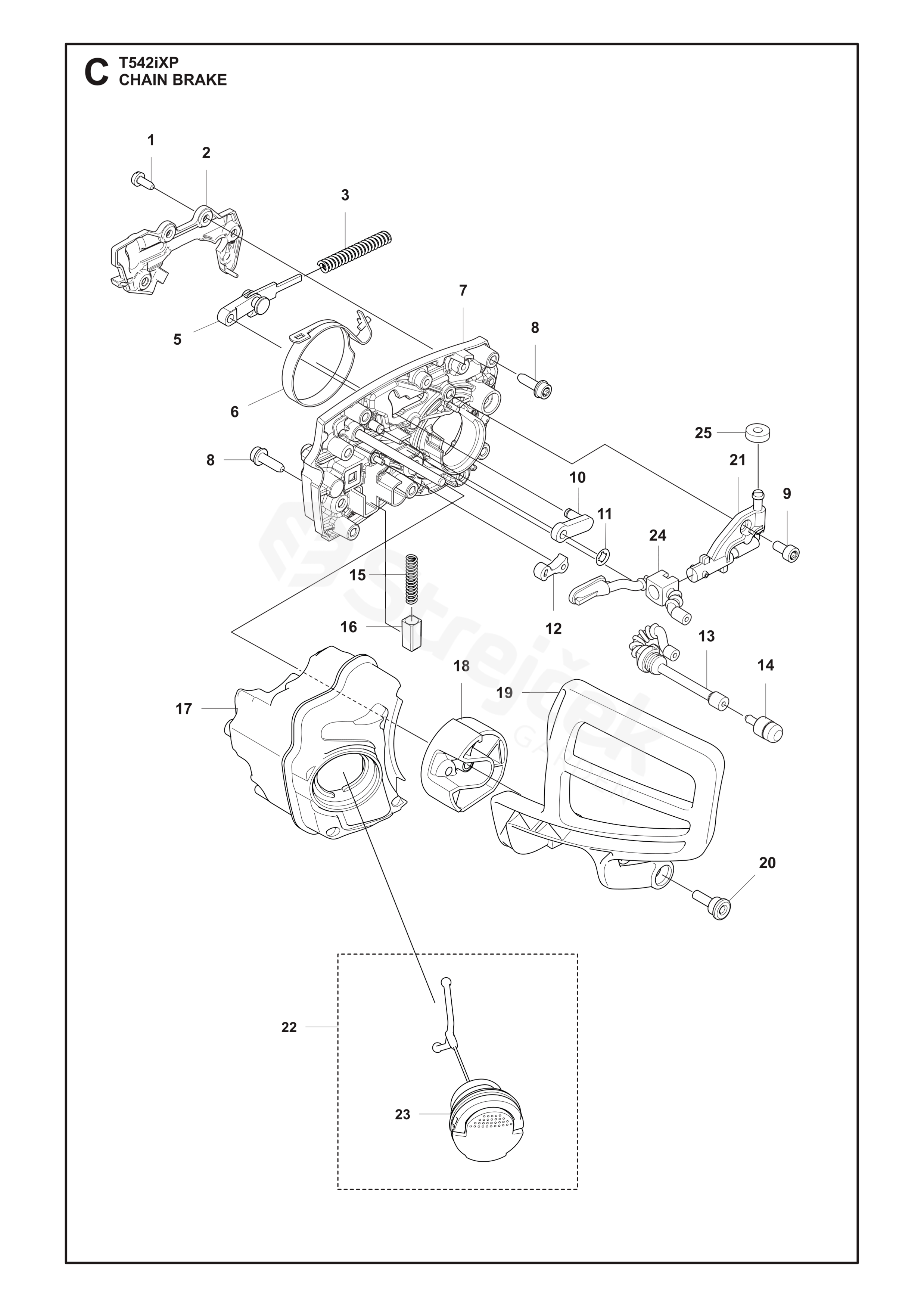

CHAIN BRAKE
T542i XP T542i XP (970646814 - 7333377075467)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For T542i XP
1 SCREW CITXPANT 526221801
2 COVER 536885701
3 BRAKE SPRING 595026101
4 WASHER 596302401
5 KNEE JOINT ASSY 599231901
6 BRAKE BAND ASSY 536501701
7 CHASSIS ASSY 536886301
8 SCREW ITXSCFT 573925801
9 SCREW ITXSCM 525824904
10 DRIVE LINK 593722302
11 WASHER 596302401
12 CATCH 505201201
13 OIL HOSE 599976801
14 OIL PLUMMET 503967501
15 POLOHOVÁ PRUŽINA 503436501
16 SPRING GUIDE 537210701
17 OIL TANK 531344901
18 HAND GUARD 593191801
19 HAND GUARD 593191902
20 SCREW 580284201
21 OIL PUMP ASSY 544180103
22 TANK CAP ASSY 522620003
23 GASKET 589241101
24 OIL HOSE 599976901
25 GASKET 597274801
