Spare parts > Husqvarna > CHAIN SAWS > 560 XP 560 XP > CARBURETOR DETAILS
Back to

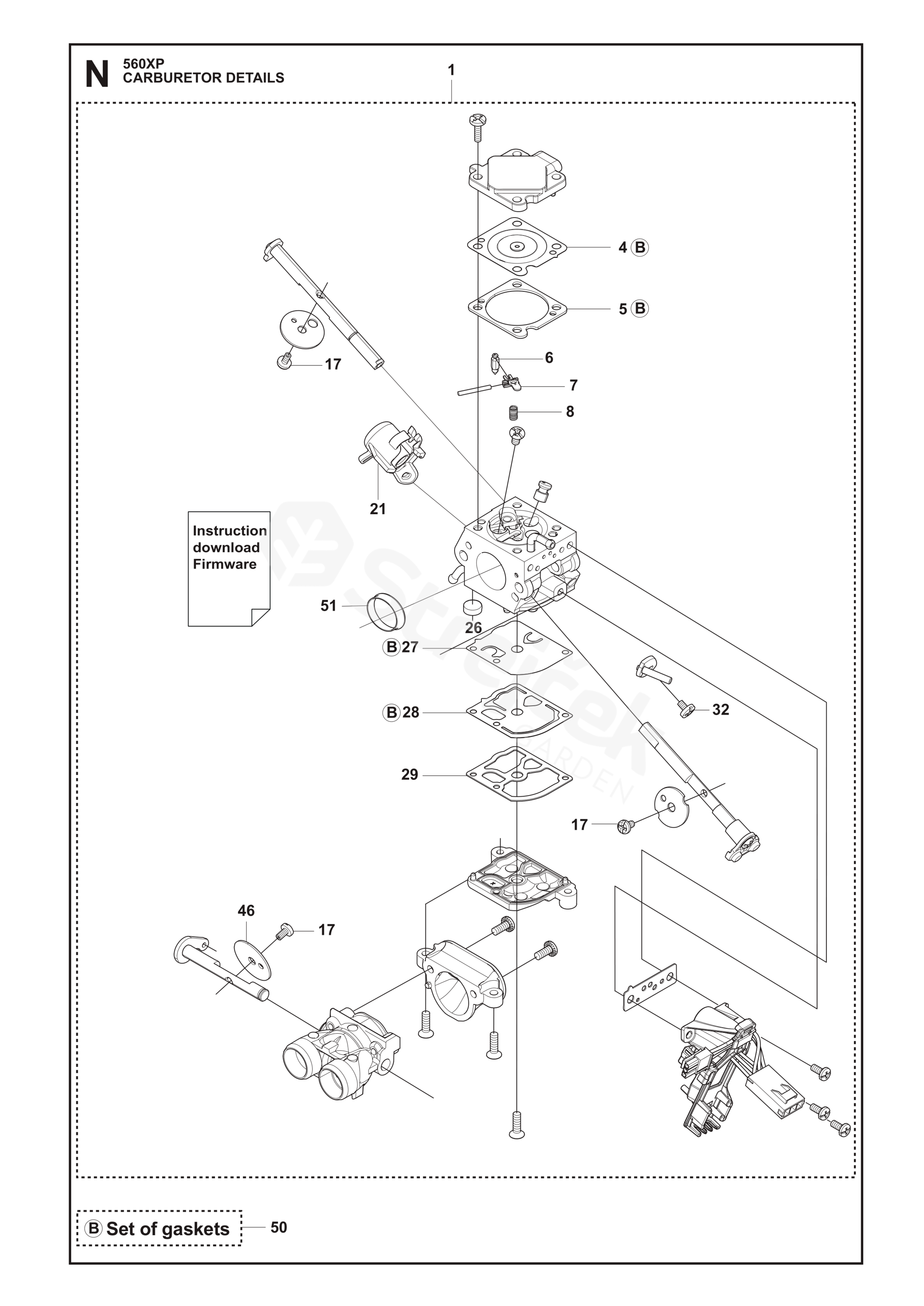

CARBURETOR DETAILS
560 XP 560 XP (966010065 - 7391883520116, 966009115 - 7391883520079, 970501715 - 7392930639997)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 560 XP
1 KARBURÁTOR s/n up to - 20121400192 (ZAMA EL44)
s/n up to - 20121401172 (ZAMA EL44) 		579194101
4 MEMBRÁNA 522517401
5 TĚSNĚNÍ 522517501
6 VALVE 503479701
7 LEVER 503665901
8 PRUŽINA 537383401
17 SCREW 503481801
21 PÁČKA PLYNU 522517801
26 ČISTIČ 503535701
27 DIAPHRAGM PUMP 537383101
28 DIAPHRAGM 537403301
29 GASKET 537020101
32 SCREW 503479001
46 VALVE 537177001
50 KIT B=set of gaskets
B=set of gaskets 		522518901
51 SUPPORT SLEEVE 582025101
