Spare parts > Jonsered > CHAIN SAWS > Jonsered CS 2250 S Jonsered CS 2250 S > CHAIN BRAKE AND CLUTCH COVER
Back to

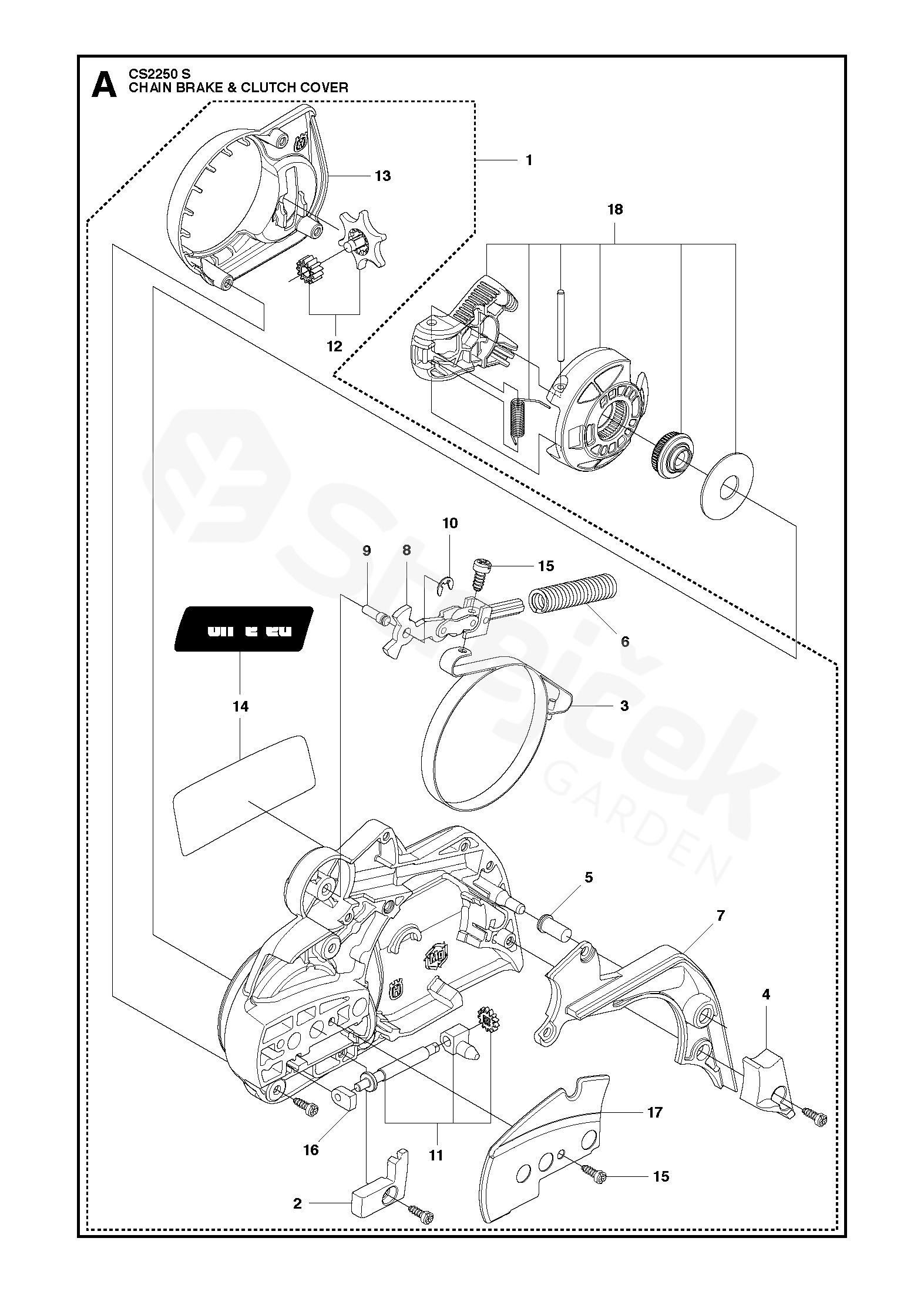

CHAIN BRAKE AND CLUTCH COVER
Jonsered CS 2250 S Jonsered CS 2250 S (966621601 - 7392930091436, 966708801 - 7392930092242, 966838425 - 7392930053892)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Jonsered CS 2250 S
1 CLUTCH COVER ASSY 544217202
2 COVER LID 504542801
3 BRAKE BAND ASSY 537043001
4 OCHRANA PROTI OPOTŘEBENÍ 544083001
5 GUIDE BUSHING 503855201
6 BRAKE SPRING 503465901
7 COVER LID 544082901
8 KLOUBOVÝ SPOJ KOMPL. 503890802
9 PIN KNEE-JOINT 503892901
10 E-CLIP 735310820
11 SCREW 537392901
12 NAPÍNÁK ŘETĚZU 537347202
13 HEAT PROTECTOR 537392602
14 LABEL 544357502
15 SCREW CCRPANT 503217010
16 BEARING SLEEVE 525354301
17 WEAR PLATE Wear plate 544250501
18 KONFLÍK 537347802
