Spare parts > Jonsered > CHAIN SAWS > Jonsered CS 2250 S Jonsered CS 2250 S > CYLINDER PISTON
Back to

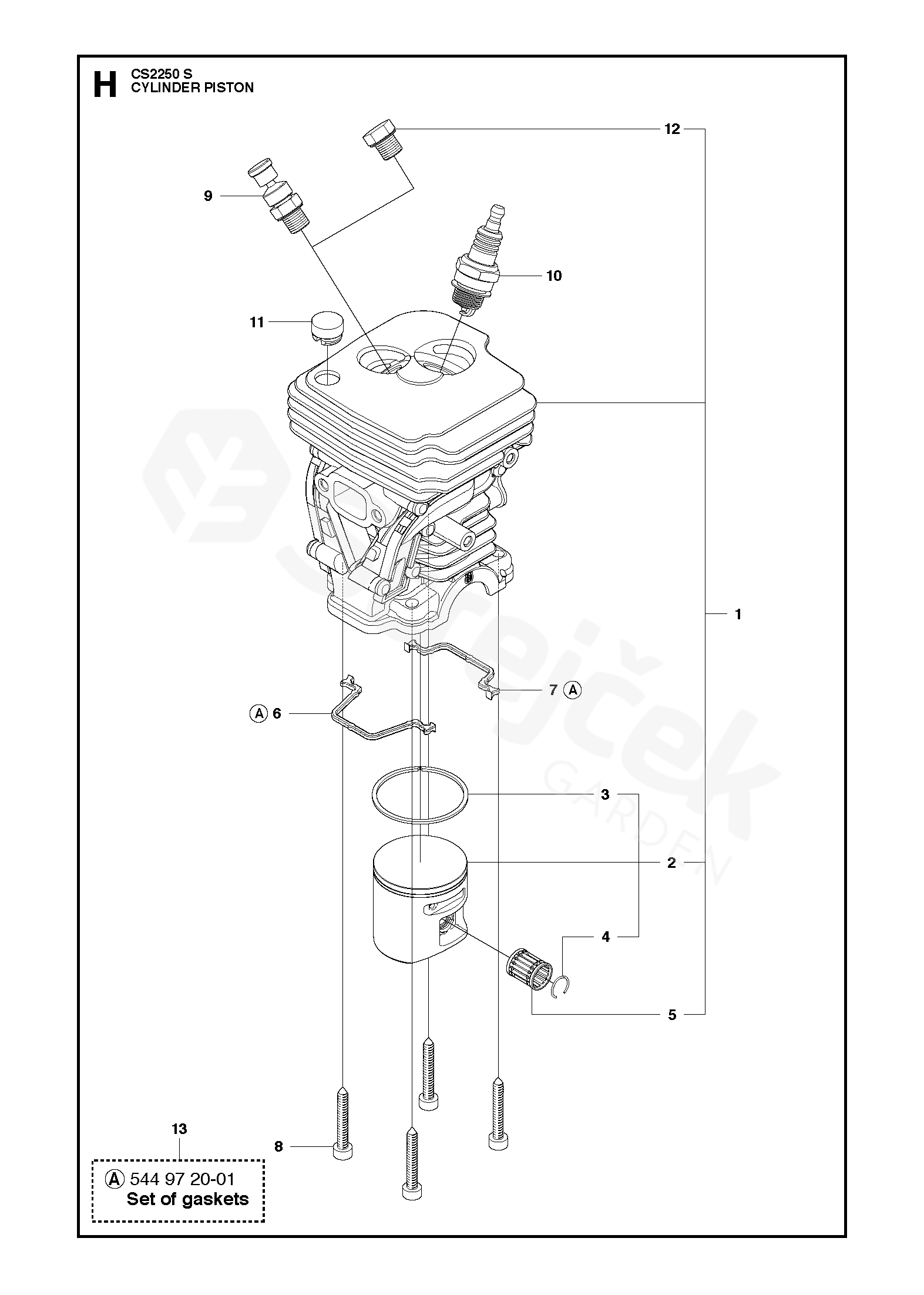

CYLINDER PISTON
Jonsered CS 2250 S Jonsered CS 2250 S (966621601 - 7392930091436, 966708801 - 7392930092242, 966838425 - 7392930053892)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Jonsered CS 2250 S
1 CYLINDER 544119802
2 PISTON ASSY 544088905
3 PÍSTNÍ KROUŽEK 544088701
4 CIRCLIP 544211301
5 JEHLOVÉ LOŽISKO 503256301
6 GASKET 544108701
7 GASKET 544109201
8 SCREW IHSCM 503200527
9 DECOMPRESSION VALVE 544870701
10 SPARK PLUG Sparkplug NGK BPMR7A
HQT-1 		577484001
11 OPĚRNÁ MISKA 540057301
12 PLUG 503552201
13 GASKET KIT
Set of Gaskets 		544972001
