Spare parts
Everything for your machines
Spare parts
>
Jonsered
>
CHAIN SAWS
>
CS 2258 CS 2258
>
FUEL TANK
Back to
CS 2258
CS 2258

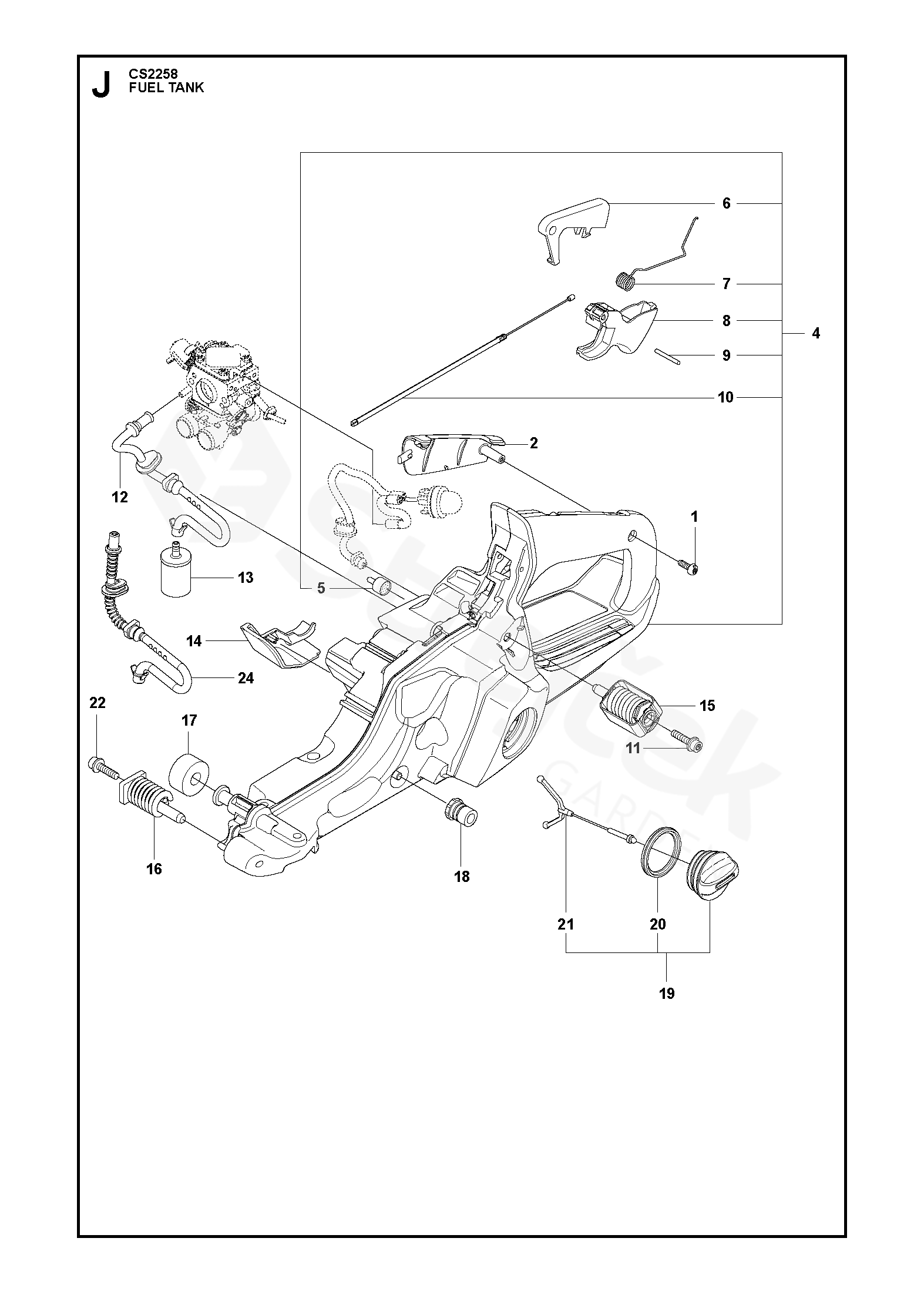

FUEL TANK
CS 2258
CS 2258 (966673615 - 7392930098015)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CS 2258
1
SCREW CITXPANT
525887402
2
VLOŽKA RUKOJETI
504106302
4
PALIVOVÁ NÁDRŽ KOMPL.
575382206
5
ODVZDUŠNĚNÍ NÁDRŽE KOMPL.
501152901
6
POJISTKA PÁČKY PLYNU
544099802
7
PRUŽINA
544099901
8
PLYN
505157702
9
PARALELNÍ KLÍN
720182520
10
LANKO PLYNU KOMPL.
521887901
11
SCREW ITXSCFT
525798102
12
PALIVOVÁ HADIČKA
573993503
13
FILTER
503443201
14
COVER
505165902
15
ANTIVIBRATION ELEMENT
586312103
16
ANTIVIBRATION ELEMENT
505128702
17
DEFLECTION LIMITER
523085501
18
BOČNÍ OPĚRA
501007601
19
TANK CAP ASSY
544111204
20
GASKET
589241101
21
HOLDER
503578901
22
SCREW ITXSCFT
525798103
24
FUEL HOSE ASSY
With Magnet
529578202
