Spare parts > Jonsered > CHAIN SAWS > CS 2153 CS 2153 > CARBURETOR DETAILS
Back to

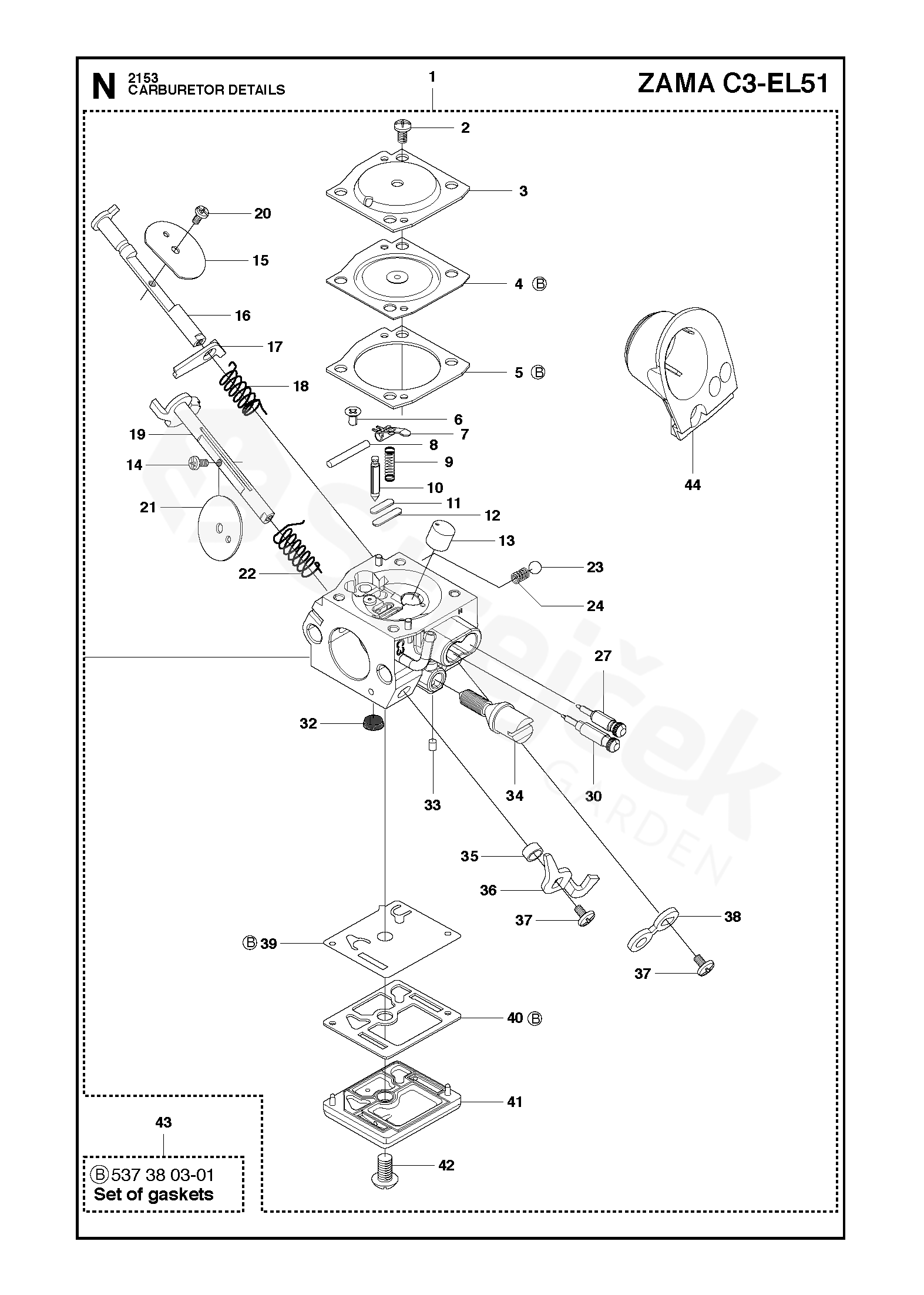

CARBURETOR DETAILS
CS 2153 CS 2153 (965170825 - 7391883166239)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS 2153
1 CARBURETTOR 580740201
2 SCREW 503480501
3 COVER 537176001
4 DIAPHRAGM 537175901
5 GASKET 503884401
6 SCREW 544082101
7 LEVER 537176401
8 PIN RETAINING SCREW 503480001
9 SPRING 537176301
10 VALVE 537176201
11 PLUG 537177801
12 PLUG WELCH 503535601
13 NOZZLE ASSY 537416101
14 SCREW 503523601
15 CHOKE VALVE 544056601
16 SHAFT ASSY 537266701
17 LEVER 544056701
18 SPRING 537176601
19 SHAFT ASSY 537266301
20 SCREW 503481801
21 VALVE 537266601
22 SPRING 537176101
23 BALL 537012501
24 PRUŽINA 537012601
27 SCREW 537178501
30 SCREW 537267001
32 ČISTIČ 503535701
33 PIECE 503481101
34 SCREW 537177601
35 COLLAR 503481901
36 LEVER 537176901
37 SCREW 503479001
38 LEVER 537177501
39 DIAPHRAGM 537380201
40 GASKET 503616601
41 COVER 537176801
42 SCREW 503479601
43 GASKET KIT
B = Set of gaskets 		537380301
44 BRACKET 579347202
