Spare parts
Everything for your machines
Spare parts > Gardena > TRIMMERS/EDGERS > EasyCut Li-18/23R w/o battery EasyCut Li-18/23R w/o battery > COMPLETE PRODUCT
Back to
COMPLETE PRODUCT
EasyCut Li-18/23R w/o battery EasyCut Li-18/23R w/o battery (967107301 - 4078500025485)

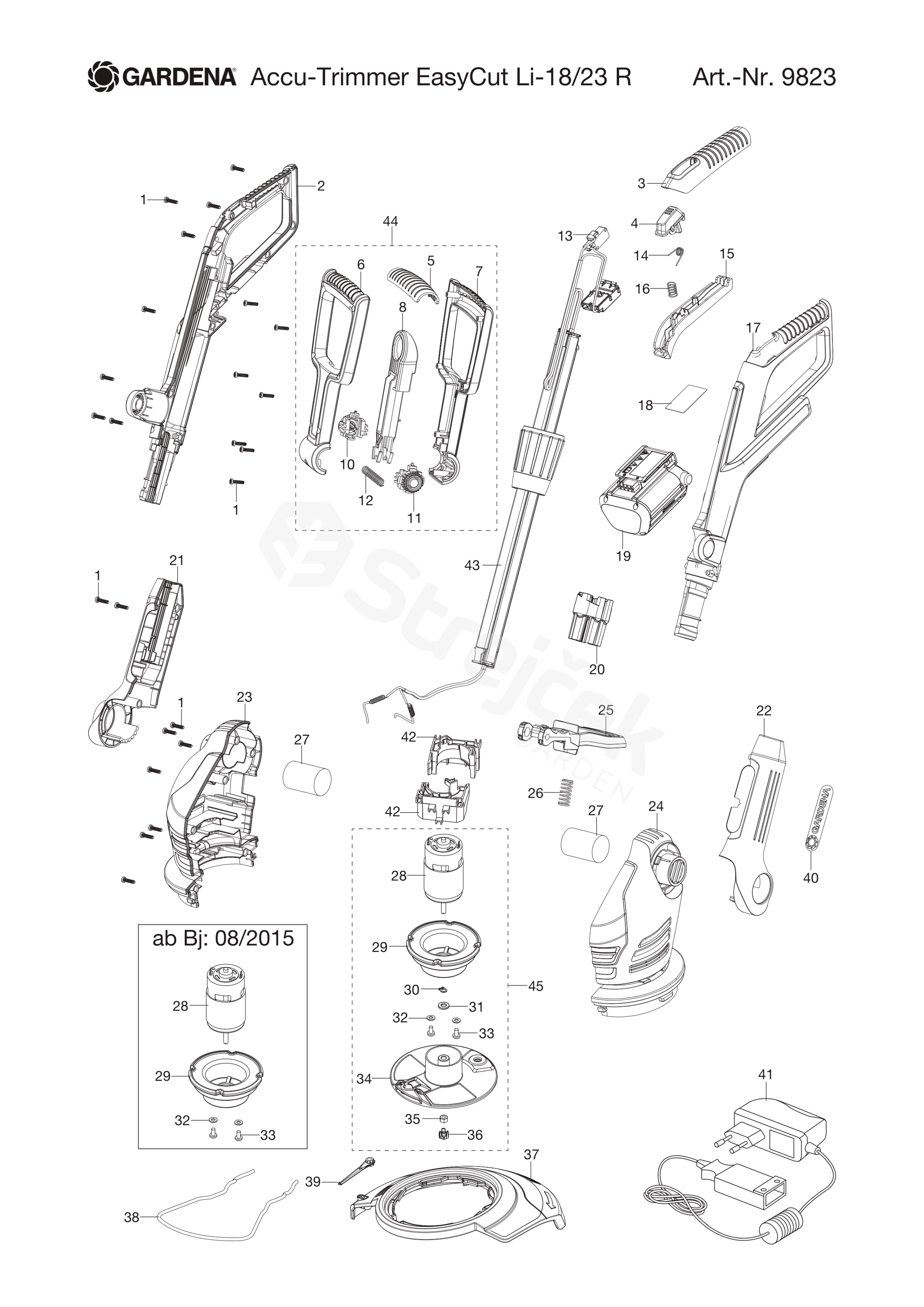

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EasyCut Li-18/23R w/o battery
1 SCREW 9809-00.600.26
9809-00.600.26 		584242301
2 HANDLE 9825-00.600.02
9825-00.600.02 		581680002
3 GRIP 9809-00.600.03
9809-00.600.03 		581649101
4 LEVER 9809-00.600.05
9809-00.600.05 		581661403
13 SWITCH 9825-00.610.02
9825-00.610.02 		585028401
14 LEVER 9809-00.600.23
9809-00.600.23 		583844401
15 LEVER 9809-00.600.04
9809-00.600.04 		581661303
16 SPRING 8875-00.600.20
8875-00.600.20 		576035001
17 HANDLE 9825-00.600.01
9825-00.600.01 		581680102
20 BLADE HOLDER 9825-00.600.05
9825-00.600.05 		585363301
21 COVER 9809-00.600.07
9809-00.600.07 		581649002
22 SHAFT 9809-00.600.06
9809-00.600.06 		581679702
23 COVER 9807-00.600.02
9807-00.600.02 		581661804
24 CLAMSHELL 9807-00.600.01
9807-00.600.01 		581680204
25 PEDAL 9809-00.600.08
9809-00.600.08 		581679403
27 FILTER 9809-00.600.21
9809-00.600.21 		581660501
29 MOTOR SUPPORT 9825-00.615.02
9825-00.615.02 		585027401
32 WASHER 9825-00.615.08
9825-00.615.08 		585723701
33 SCREW 9825-00.615.07
9825-00.615.07 		585027901
34 CUTTING SYSTEM 9825-00.616.00
9825-00.616.00 		585026601
35 NUT 9825-00.615.06
9825-00.615.06 		585027801
36 CAP 9825-00.615.03
9825-00.615.03 		585027501
37 GUARD 9807-00.620.01
9807-00.620.01 		581649602
38 GUARD 9809-00.600.18
9809-00.600.18, Metall - until 2016 		581650001
39 BLADE 5368-00.701.00
5368-00.701.00 (20 x) (5368-20) 		520551301
40 LABEL 2648-00.600.80
2648-00.600.80 		520475201
41 CHARGER 9825-00.630.00
9825-00.630.00 (8833-20) 		589740801
42 CLIP 9825-00.610.05
9825-00.610.05 		585600101
43 TUBE
9823-00.901.00 		591077701
44 HANDLE ASSY 9809-00.610.00
9809-00.610.00 		583860801
45 CUTTING SYSTEM 9825-00.615.00
9825-00.615.00 		584915501
