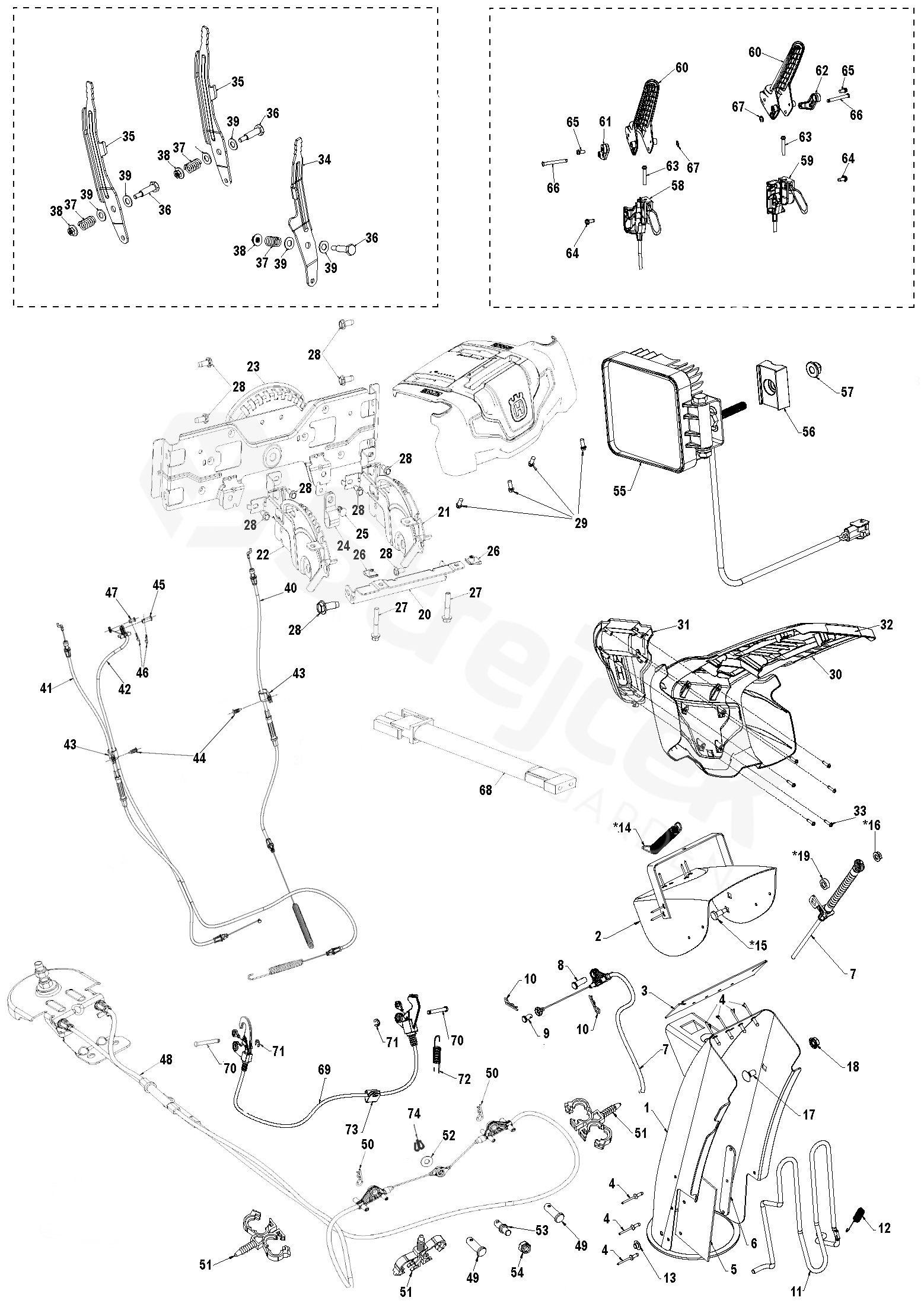

Spare parts - Partlist - ST 227 ST 227 - CONTROL PANEL AND DISCHARGE CHUTE

Everything for your machines

ST 227 ST 227 (970528701 - 7392930735965, 970469001 - 7392930512733)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ST 227

1	CHUTE ASSY INCLUDES KEY NUMBERS 1-6	588077802
2	DEFLECTOR ASSY	590518207
3	SEAL	532420325
4	RIVET	593060601
5	SHIELD	532430324
6	STRAP SHIELD RETAINER BZP	532419822
7	LANKO KOMPL.	598450501
8	PEN PIN	581329401
9	PEN PIN	585808301
10	HAIR PIN COTTER	532423303
11	KRYT	593622201
12	SPRING	532435616
13	NUT	532059349
14	PRUŽINA	532184505
15	BOLT	501417301
16	MATICE	585691401
17	BOLT	585832001
18	MATICE	873970500
19	PODLOŽKA	501417401
20	DRŽÁK	597991902
21	BRACKET	597992202
22	BRACKET	597992302
23	DRŽÁK	597992402
24	CLIP	532197991
25	FASTENER	532428124
26	MATICE	532174814
27	SCREW	501406601
28	SCREW	585517801
29	SCREW	532194189
30	OVLÁDACÍ PANEL	598803701
31	CONSOLE	598803801
32	NÁLEPKA	598812001
33	SCREW	532163409
34	LEVER	596786802
35	LEVER	581123902
36	BOLT	581329702
37	PRUŽINA	581329601
38	MATICE	586668901
39	SPACER	532179246
40	CABLE	582519002
41	CABLE	588113802
42	LANKO KOMPL.	598450401
43	CLIP	532197991
44	FASTENER	532428124
45	PEN PIN	581329401
46	HAIR PIN COTTER	532423303
47	PEN PIN	585808301
48	CABLE ASSY	598803401
49	PEN PIN	581329401
50	HAIR PIN COTTER	532423303
51	CLIP	584652201
52	PODLOŽKA	586682101
53	CLEVIS PIN	599265401
54	NUT	595086601
55	LIGHT For 97052870100, 97052870200	535332701
56	MOUNTING BRACKET	590439801
57	NUT	594944401
58	CABLE	588263901
59	CABLE	588263902
60	LEVER	587463001
61	LEVER	587739701
62	LEVER	587739702
63	SCREW	581329501
64	SCREW	817060410
65	SCREW	817411308
66	KOLÍČEK	588147701
67	RETAINING RING	812000014
68	HARNESS	598458701
69	CABLE For 97046900100, 97046890101, 97052870100	593853401
70	PEN	532431762
71	RETAINING RING	812000014
72	PRUŽINA For 97046900100, 97046890101, 97052870100	581151201
73	CLIP	532197991
74	RETAINER	596029401
