Spare parts > Gardena > Scarifiers & Dethatchers > ES 500 ES 500 > COMPLETE PRODUCT
Back to
COMPLETE PRODUCT

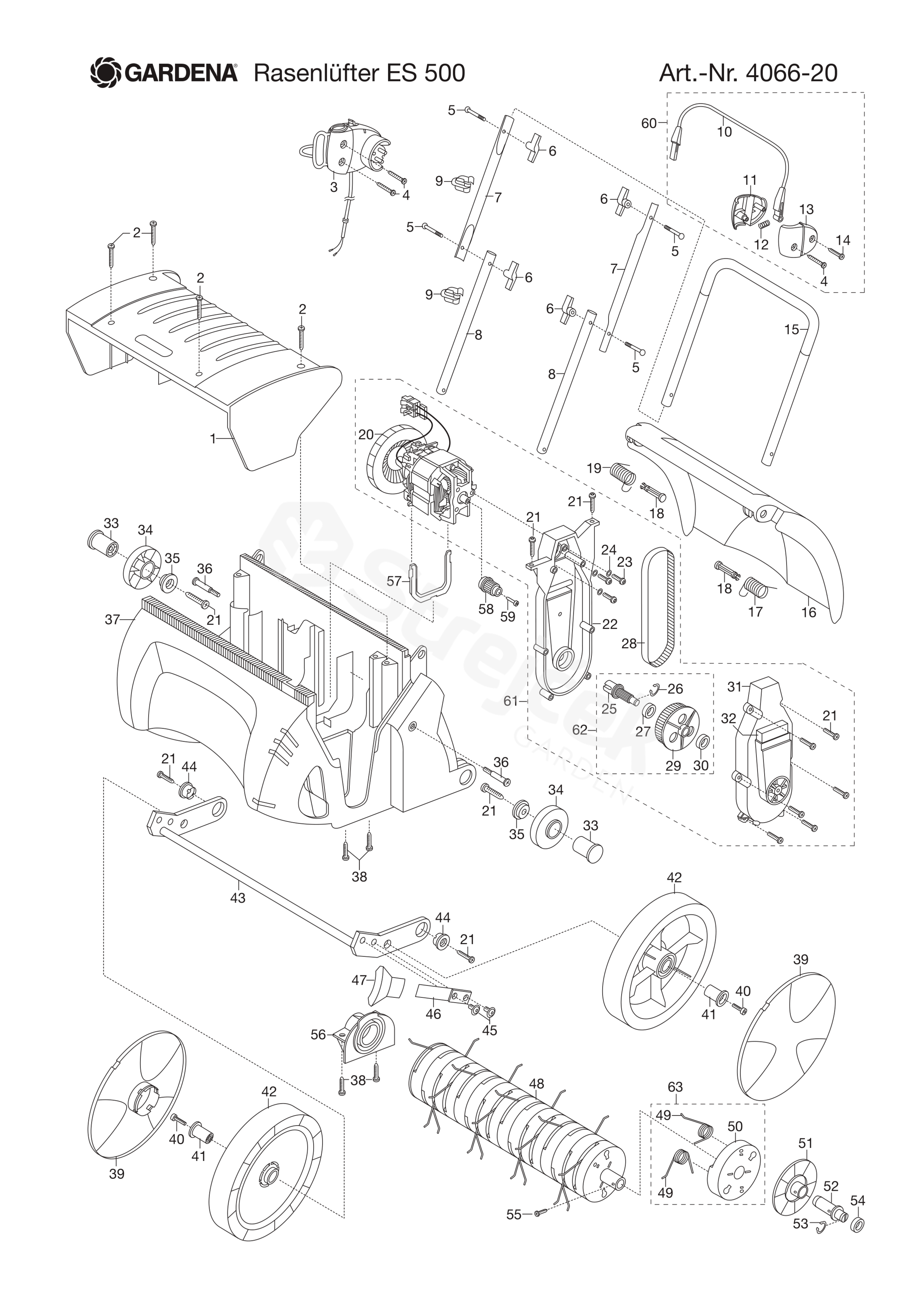

ES 500 ES 500 (901060701 - 4078500406604)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ES 500
0 LOCKWASHER 4066-00.620.15
4066-00.620.15, not shown in image 		520538901
2 SHEET METAL SCREW 4.2X38 1182-00.600.02
1182-00.600.02 		520341501
3 INTERLOCK SWITCH 4068-00.612.01
4068-00.612.01 		520541301
5 TRUSS- HEAD SCREW M5X35 4060-00.600.49
4060-00.600.49 		520535001
6 WING NUT 4068-00.600.98
4068-00.600.98 		520541001
7 HANDLEBAR 4062-00.680.00
4062-00.680.00 		520537301
8 HANDLEBAR 4068-00.620.00
4068-00.620.00 		520541501
9 CLAMP 4060-00.600.36
4060-00.600.36 		520534901
16 REAR COVER 4068-00.600.11
4068-00.600.11 		520539601
20 MOTOR ASSY
4066-00.622.00 		584222401
21 SHEET METAL SCREW 4.2X19 2315-00.600.01
2315-00.600.01 		520432201
26 LOCKING RING 4062-00.630.11
4062-00.630.11 		520536801
28 BELT 4066-00.620.11
4066-00.620.11 		520538801
29 DENTAL WHEEL 4066-00.210.00
4066-00.210.00 		520538101
33 WHEEL AXLE SMALL 4068-00.600.36
4068-00.600.36 		520540101
34 WHELL SMALL 4068-00.600.31
4068-00.600.31 		520540001
35 AXLE PLATE SMALL 4068-00.600.71
4068-00.600.71 		520540301
36 SCREW 4068-00.600.91
4068-00.600.91 		520540901
38 SHEET METAL SCREW 4.8X25 5015-00.000.18
5015-00.000.18 		520550701
39 WHEEL COVER LARGELY 4068-00.600.21
4068-00.600.21 		520539801
40 SCREW 4068-00.600.74
4068-00.600.74 		520540401
41 WHEEL HUB LARGELY 4068-00.600.26
4068-00.600.26 		520539901
42 WHELL LARGELY 4068-00.600.16
4068-00.600.16 		520539701
48 AERATOR. CPL. 4066-00.610.00
4066-00.610.00 		520538301
49 SPRING 78200-00.610.06
78200-00.610.06 		520623201
58 WASHER
4066-00.621.03 		584222201
59 PEN
4060-00.611.02 		524081501
60 SHACKLE 4068-00.612.00
4068-00.612.00 		520541201
61 BOOSTER 4066-00.620.00
4066-00.620.00 		520538701
62 DRIVE SHAFT ASSY
4066-00.627.00 		584222501
63 SEGMENT. CPL. 4066-00.710.00
4066-00.710.00 		520539201
