Spare parts > Gardena > Irrigation Pumps > Rain Water Tank Pump 4000/2 auto Rain Water Tank Pump 4000/2 auto > COMPLETE PRODUCT
Back to
COMPLETE PRODUCT

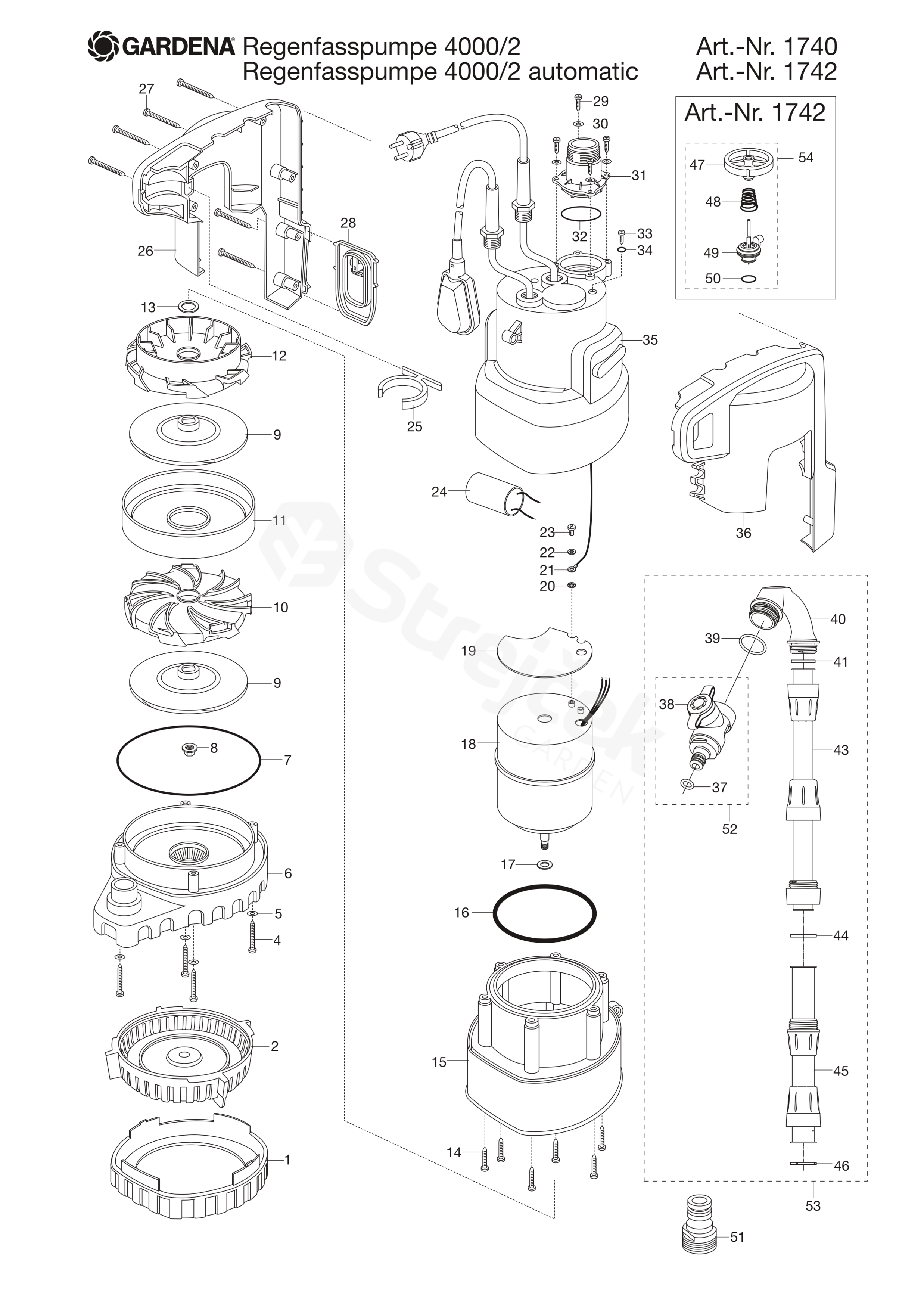

Rain Water Tank Pump 4000/2 auto Rain Water Tank Pump 4000/2 auto (967899401 - 4078500044455, 966647601 - 4078500174206)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Rain Water Tank Pump 4000/2 auto
1 BASEPLATE 1740-00.900.01
1740-00.900.01 		578761801
2 FILTER BOTTOM 1740-00.900.02
1740-00.900.02 		578761901
4 SCREW 1740-00.900.04
1740-00.900.04 		578762101
5 PLANE WASHER 1740-00.900.05
1740-00.900.05 		578762301
6 PUMP 1740-00.900.06
1740-00.900.06 		578762401
7 O-RING 1740-00.900.07
1740-00.900.07 		578762501
8 NUT 1740-00.900.08
1740-00.900.08 		578762601
9 TURBINE 1740-00.900.09
1740-00.900.09 		578762801
10 TURBINE UNIT 1740-00.900.10
1740-00.900.10 		578763001
11 TURBINE UNIT 1740-00.900.11
1740-00.900.11 		578763101
12 DIFFUSER 1740-00.900.12
1740-00.900.12 		578763201
25 PIPE 1740-00.900.13
1740-00.900.13 		578763301
28 PUSH BUTTON 1740-00.600.06
1740-00.600.06 		585006301
31 CONNECTOR 1740-00.900.14
1740-00.900.14 		578763501
32 O-RING 1740-00.900.15
1740-00.900.15 		578764901
37 O-RING 18300-00.600.16, not shown in image
18300-00.600.16 		501301801
39 O-RING
1762-00.655.06 		598949801
40 ELBOW
1762-00.655.01 		598949701
41 SEALING
1740-00.900.21 		587638201
43 TUBE
1762-00.653.00 		598943601
44 SEALING
1740-00.900.22 		587638301
45 TUBE
1762-00.654.00 		598944601
46 WASHER
1740-00.900.17 		584831801
51 ADAPTER 1740-00.900.18, not shown in image
1740-00.900.18 		585006401
52 VALVE ASSY
1762-00.652.00 		598942901
53 TUBE
1762-00.650.00 		598950201
54 JEDNOSMĚRNÝ VENTIL 1742-00.901.00
1742-00.901.00 		578765101
