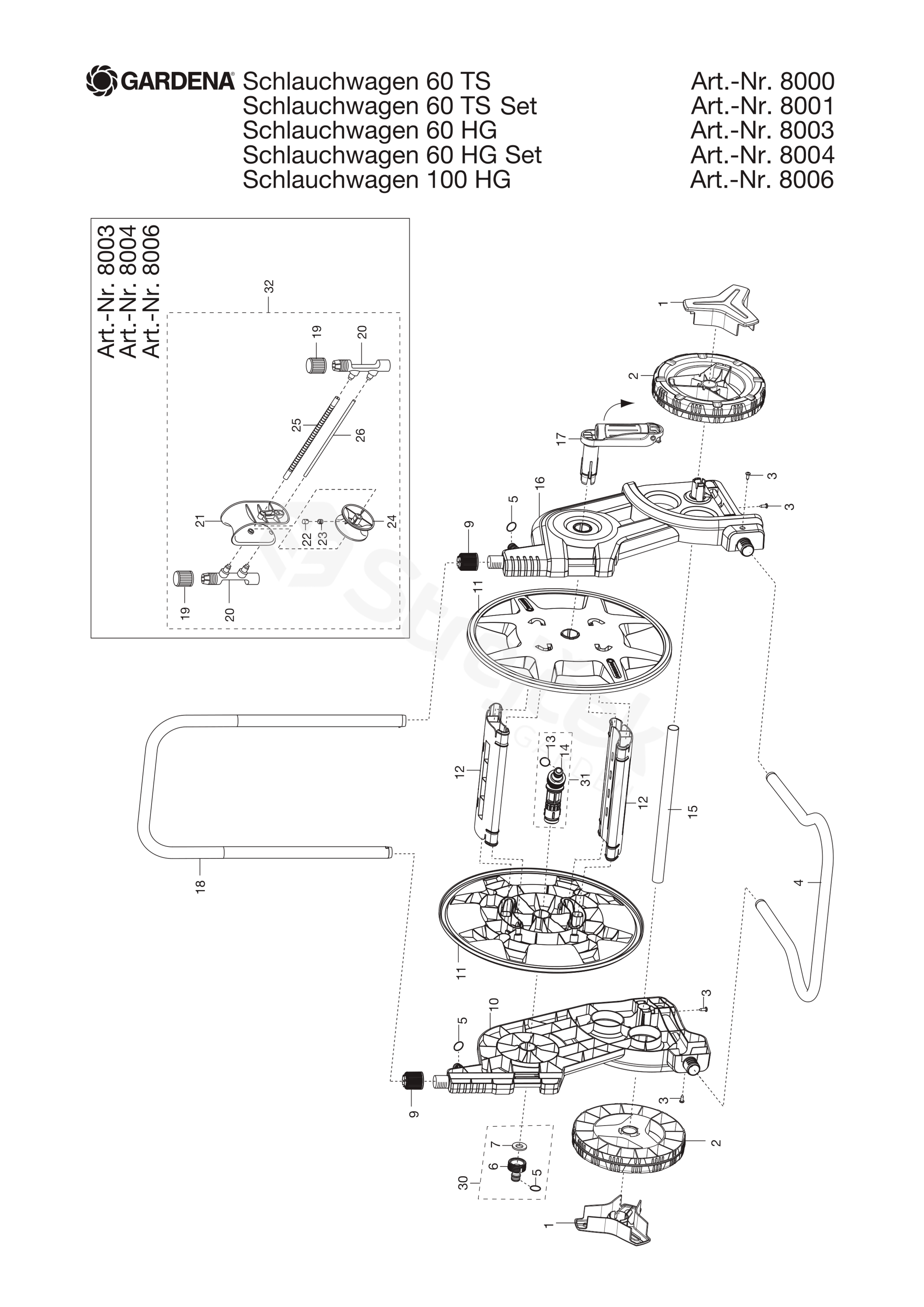

Classic Hose Trolley 60 HG Classic Hose Trolley 60 HG (966620801 - 4078500800303)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Classic Hose Trolley 60 HG

1	DRIVING COLLAR 8000-00.600.21 8000-00.600.21	576155601
2	WHEEL 8000-00.600.16 8000-00.600.16	576155501
3	SHEET METAL SCREW 4.2X13 1625-00.600.16 1625-00.600.16	520401101
4	TUBE 8000-00.620.00 8000-00.620.00	576157501
5	O-RING 18300-00.600.16, not shown in image 18300-00.600.16	501301801
9	LOCK NUT 232-00.600.31 232-00.600.31	520294801
10	CHEEK RIGHT 8000-00.600.06 8000-00.600.06	576155301
11	REEL 8006-00.630.01	576156901
12	TIE BAR 8007-00.600.26 8007-00.600.26	576157001
13	O-RING 16.9X2.7 1131-00.000.01 1131-00.000.01	520338701
15	TUBE 8000-00.600.26 8000-00.600.26	576155701
16	CHEEK LEFT 8000-00.600.01 8000-00.600.01	576155101
17	CRANK 8000-00.611.00 8000-00.611.00	577906001
18	FRAME ASSY 8000-00.640.00 8000-00.640.00	576157701
19	LOCK NUT 232-00.600.31 232-00.600.31	520294801
20	ADAPTER 8004-00.650.01 8004-00.650.01	576156401
21	GUIDE 2684-00.611.06 2684-00.611.06	523931501
22	COVER 2684-00.611.16 2684-00.611.16	523931701
23	NUT 2648-00.600.42 2648-00.600.42	520474501
24	ROLLE 2684-00.611.11 2684-00.611.11	523931601
25	SPLINE SHAFT 8004-00.650.11 8004-00.650.11	576156601
26	TUBE DRIVESHAFT 8004-00.650.06 8004-00.650.06	576156501
30	TAP CONNECTOR 18201-00.600.00 18201-00.600.00	586705901
31	TERMINAL 2684-00.760.00 2684-00.760.00	588222501
32	GUIDE ROLLER 8004-00.650.00	576157801
