Wall-Mounted Hose Box 25 roll-up automatic

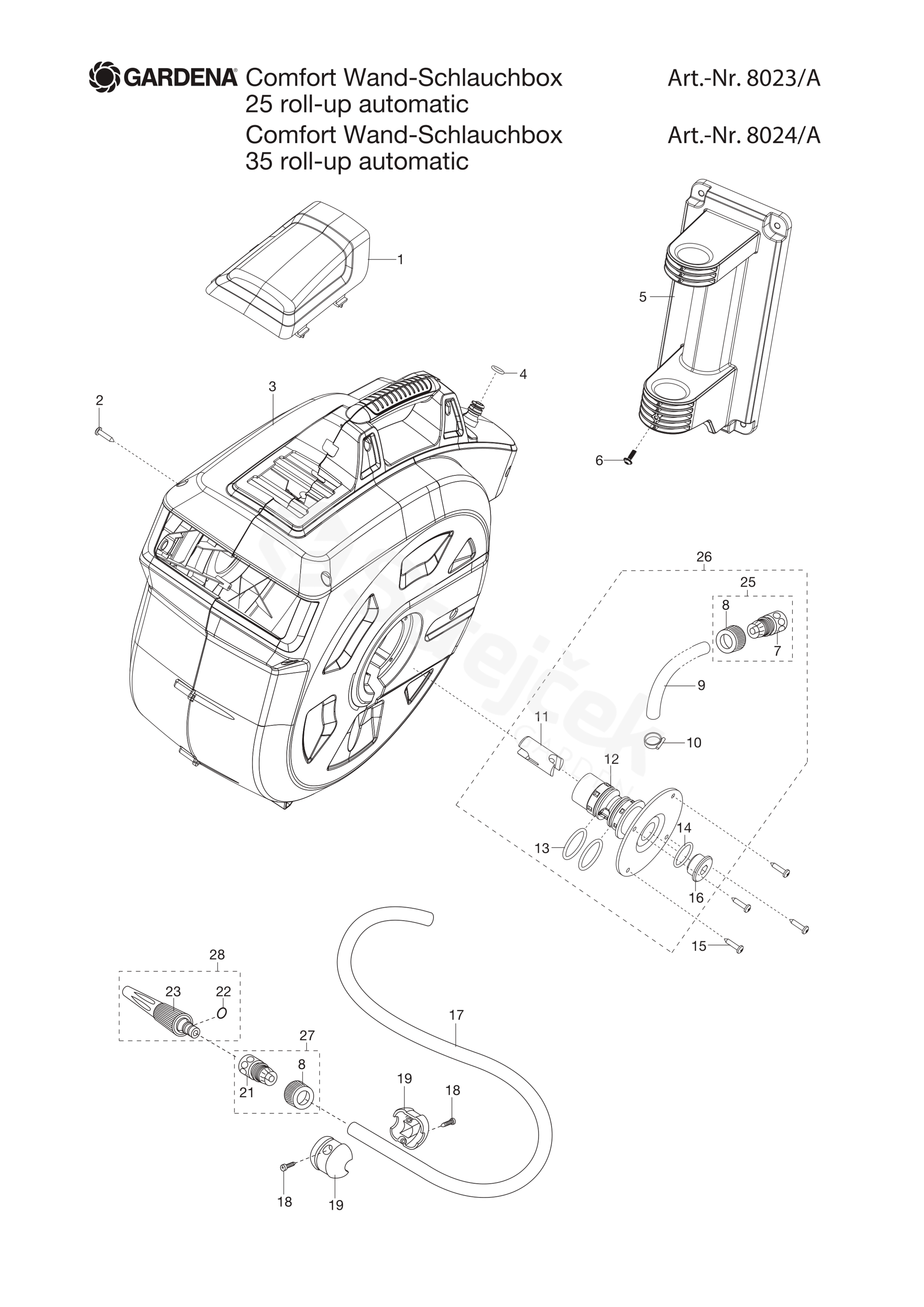

Wall-Mounted Hose Box 25 roll-up automatic (967169401 - 4078500802307)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Wall-Mounted Hose Box 25 roll-up automatic
0
ACCESSORY BAG
8022-00.730.00, not shwon in image
588509301
1
COVER 8023-00.900.01
8023-00.900.01
584657801
2
SCREW 8022-00.600.74
8022-00.600.74
585011901
4
O-RING 2613-00.600.25
2613-00.600.25
520467901
5
HOLDING DEVICE 8023-00.900.03
8023-00.900.03
584658001
6
SCREW 8023-00.900.04
8023-00.900.04
584658101
8
LOCK NUT SYSTEM 1/2" 911-00.000.13
911-00.000.13
520332101
10
CLIP
8022-00.600.89
596828001
11
PRESSURE PIPE 8022-00.600.01
8022-00.600.01
581104901
12
AXLE
8023-00.600.07
582653901
13
O-RING 8022-00.600.46
8022-00.600.46
588564201
14
O-RING 20X2 1670-00.600.06
1670-00.600.06
520401401
15
SCREW 8022-00.600.76
8022-00.600.76
585012101
16
PLUG
8022-00.600.55
582613201
18
SCREW 2648-00.600.89
2648-00.600.89
523908001
19
STOPPER 2648-00.600.62
2648-00.600.62
581368601
22
O-RING 18300-00.600.16, not shown in image
18300-00.600.16
501301801
25
HOSE CONNECTOR 915-00.600.00
915-00.600.00
520332501
26
HOSE 8023-00.901.00
8023-00.901.00
587454201
27
WATER-STOP 913-00.640.00
913-00.640.00
520332301
28
NOZZLE 18300-00.600.00, not shown in image
18300-00.600.00
586572301
