Wall-Mounted Hose Box 35 roll-up automatic Li Wall-Mounted Hose Box 35 roll-up automatic Li
>
COMPLETE PRODUCT
Back to
Wall-Mounted Hose Box 35 roll-up automatic Li
Wall-Mounted Hose Box 35 roll-up automatic Li
COMPLETE PRODUCT
Wall-Mounted Hose Box 35 roll-up automatic Li

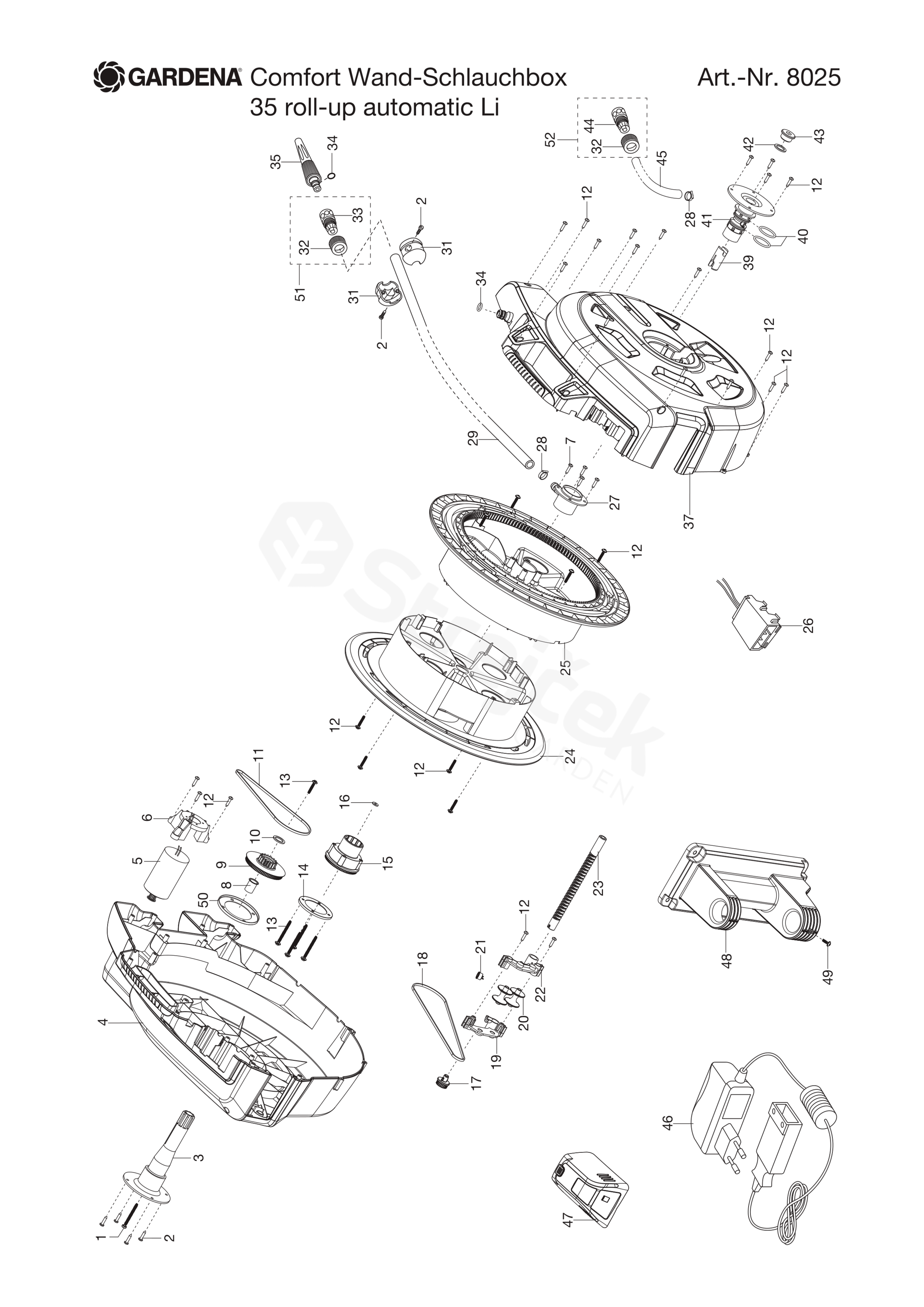

Wall-Mounted Hose Box 35 roll-up automatic Li (967169601 - 4078500802505)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Wall-Mounted Hose Box 35 roll-up automatic Li
0
LABEL 2648-00.600.80
2648-00.600.80, not shown in image
520475201
1
SCREW 8022-00.600.74
8022-00.600.74
585011901
2
SCREW 2648-00.600.89
2648-00.600.89
523908001
3
AXLE 8025-00.900.01
8025-00.900.01
584894401
6
MOTOR SUPPORT 8025-00.900.03
8025-00.900.03
584894601
7
SCREW 8022-00.600.75
8022-00.600.75
585012001
11
BELT 8025-00.900.04
8025-00.900.04
584897601
12
SCREW 8022-00.600.76
8022-00.600.76
585012101
14
SHIM
8022-00.600.23
585009201
17
TOOTH LOCK WASHER 2648-00.600.79
2648-00.600.79
520475101
18
BELT 8023-00.900.05
8023-00.900.05
584893901
19
GUIDE BUSHING
8022-00.600.32
585010101
20
REEL
8022-00.600.33
585010201
21
NUT 2648-00.600.42
2648-00.600.42
520474501
22
GUIDE BUSHING
8022-00.600.31
585010001
23
SPLINEWAY
8023-00.600.02
585658101
26
CONTACT PLUGG 8840-00.610.03
8840-00.610.03
524432801
27
TAP CONNECTOR
8022-00.600.21
585008801
28
CLIP
8022-00.600.89
596828001
31
STOPPER 2648-00.600.62
2648-00.600.62
581368601
32
LOCK NUT SYSTEM 1/2" 911-00.000.13
911-00.000.13
520332101
34
O-RING 18300-00.600.16, not shown in image
18300-00.600.16
501301801
35
NOZZLE 18300-00.600.00, not shown in image
18300-00.600.00
586572301
39
PRESSURE PIPE 8022-00.600.01
8022-00.600.01
581104901
40
O-RING 8022-00.600.46
8022-00.600.46
588564201
41
AXLE
8023-00.600.07
582653901
42
O-RING 20X2 1670-00.600.06
1670-00.600.06
520401401
43
PLUG
8022-00.600.55
582613201
46
CHARGER
8025-00.630.00, EU Version
589871801
48
HOLDING DEVICE 8023-00.900.03
8023-00.900.03
584658001
49
SCREW 8023-00.900.04
8023-00.900.04
584658101
51
WATER-STOP 913-00.640.00
913-00.640.00
520332301
52
HOSE CONNECTOR 915-00.600.00
915-00.600.00
520332501
