MultiControl MultiControl (900963501 - 4078500186209, 900963801 - 4078500186292)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MultiControl

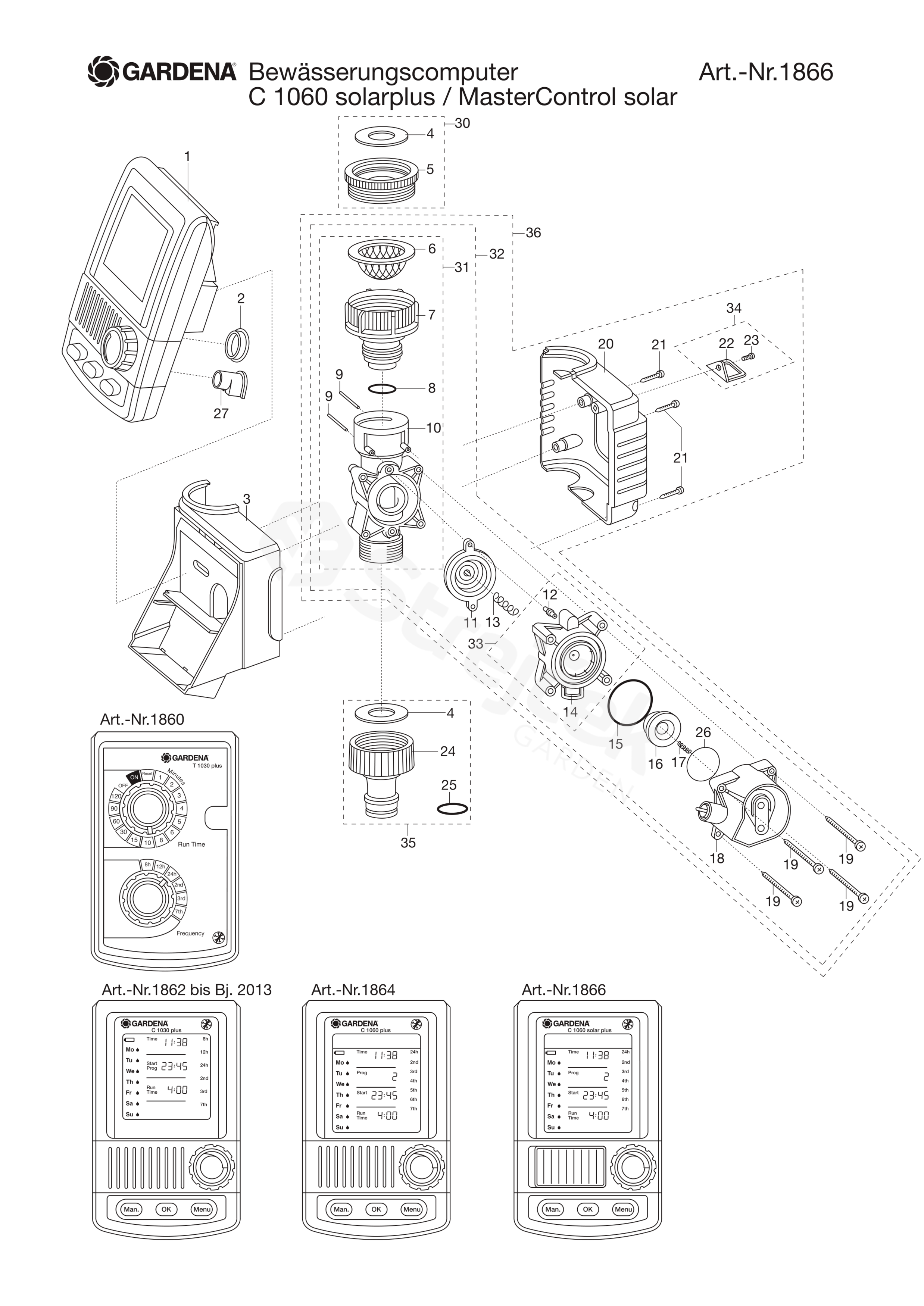

0	FOIL 1862-00.610.50 1862-00.610.50, not shown in image	520422401
1	CONTROL UNIT 1862-00.620.00, until 2013	580848001
2	PROTECTIVE CAP 1864-00.610.36 1864-00.610.36	520422601
3	CASE 1860-00.600.06 1860-00.600.06	520422001
4	WASHER 1121-00.600.01	596775201
6	FINE FILTER 1" 1815-00.614.00, not shown in image 1815-00.614.00	520419201
7	CONNECTING BUSH 1210-00.600.61 1210-00.600.61	520344401
8	ORING 18.4X2.7 964-00.505.04 964-00.505.04	520336801
11	DIAPHRAGM 1815-00.720.00	536285801
12	CONTROL NOZZLE RED 1815-00.610.27 1815-00.610.27	520419001
13	PRESSURE SPRING. LARGE 1169-00.600.39 1169-00.600.39	520339701
15	O-RING 24X2 1672-00.600.11 1672-00.600.11	520402001
16	MAGNETIC PLATE COMPL. 1174-00.618.00 1174-00.618.00	525411201
17	SPRING 1174-00.610.12	593806601
20	CASE 1860-00.600.01 1860-00.600.01	520421901
21	SHEET METAL SCREW 3.5X25 1174-00.610.07 1174-00.610.07	520340401
23	SCREW ONE-WAY B4.2X19 1174-00.600.13 1174-00.600.13	520340001
25	O-RING 18300-00.600.16, not shown in image 18300-00.600.16	501301801
26	MYLAR-FOIL 4 TYP A. 50 µM DICK 1815-00.610.38 1815-00.610.38	520419101
27	HUB CAP 1860-00.610.36 1860-00.610.36	522773801
30	ADAPTER 18264-00.500.00	531029001
31	VALVE BODY . CPL 1815-00.706.00 1815-00.706.00	520419501
32	ELECTRIC MAGNET. CPL. 1815-00.707.00 1815-00.707.00	520419601
33	VALVE CAP. CPL 1815-00.743.00 1815-00.743.00	520420001
34	POLY BAG 1815-00.791.00 1815-00.791.00	520420101
35	TAP CONNECTOR CPL. 3/4 901-00.100.00 901-00.100.00	520331801
36	HYDRAULIC VALVE WITH CASE 1860-00.740.00 1860-00.740.00	520422201
