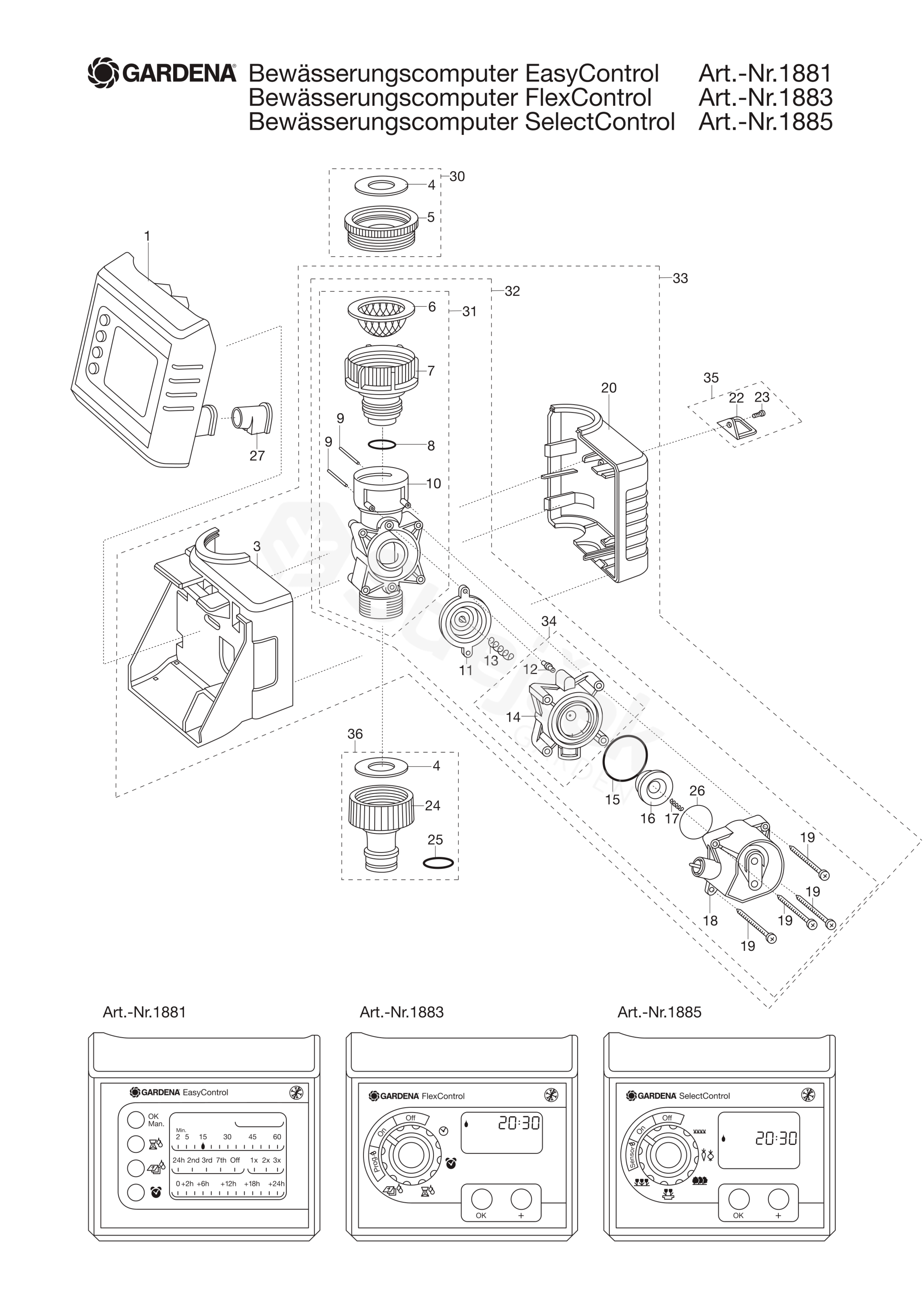

SelectControl SelectControl (967235801 - 4078500188500)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SelectControl

1	CONTROL PANEL 1885-00.510.00	587373501
3	HOUSING 1881-00.600.06 1881-00.600.06	584838301
4	WASHER 1121-00.600.01	596775201
6	FINE FILTER 1" 1815-00.614.00, not shown in image 1815-00.614.00	520419201
7	CONNECTING BUSH 1210-00.600.61 1210-00.600.61	520344401
8	ORING 18.4X2.7 964-00.505.04 964-00.505.04	520336801
11	DIAPHRAGM 1815-00.720.00	536285801
12	CONTROL NOZZLE RED 1815-00.610.27 1815-00.610.27	520419001
13	PRESSURE SPRING. LARGE 1169-00.600.39 1169-00.600.39	520339701
15	O-RING 24X2 1672-00.600.11 1672-00.600.11	520402001
16	MAGNETIC PLATE COMPL. 1174-00.618.00 1174-00.618.00	525411201
17	SPRING 1174-00.610.12	593806601
20	HOUSING 1881-00.600.01 1881-00.600.01	584838201
23	SCREW ONE-WAY B4.2X19 1174-00.600.13 1174-00.600.13	520340001
25	O-RING 18300-00.600.16, not shown in image 18300-00.600.16	501301801
26	MYLAR-FOIL 4 TYP A. 50 µM DICK 1815-00.610.38 1815-00.610.38	520419101
27	PROTECTIVE CAP 1864-00.610.36 1864-00.610.36	520422601
30	ADAPTER 18264-00.500.00	531029001
31	VALVE BODY . CPL 1815-00.706.00 1815-00.706.00	520419501
32	ELECTRIC MAGNET. CPL. 1815-00.707.00 1815-00.707.00	520419601
33	VALVE 1881-00.700.00 1881-00.700.00	586610901
34	VALVE CAP. CPL 1815-00.743.00 1815-00.743.00	520420001
35	POLY BAG 1815-00.791.00 1815-00.791.00	520420101
36	TAP CONNECTOR 18201-00.600.00 18201-00.600.00	586705901
