Spare parts > Husqvarna > Compaction Plates (HCD) > LFe 60 LAT LFe 60 LAT > CONTROL PANEL
Back to

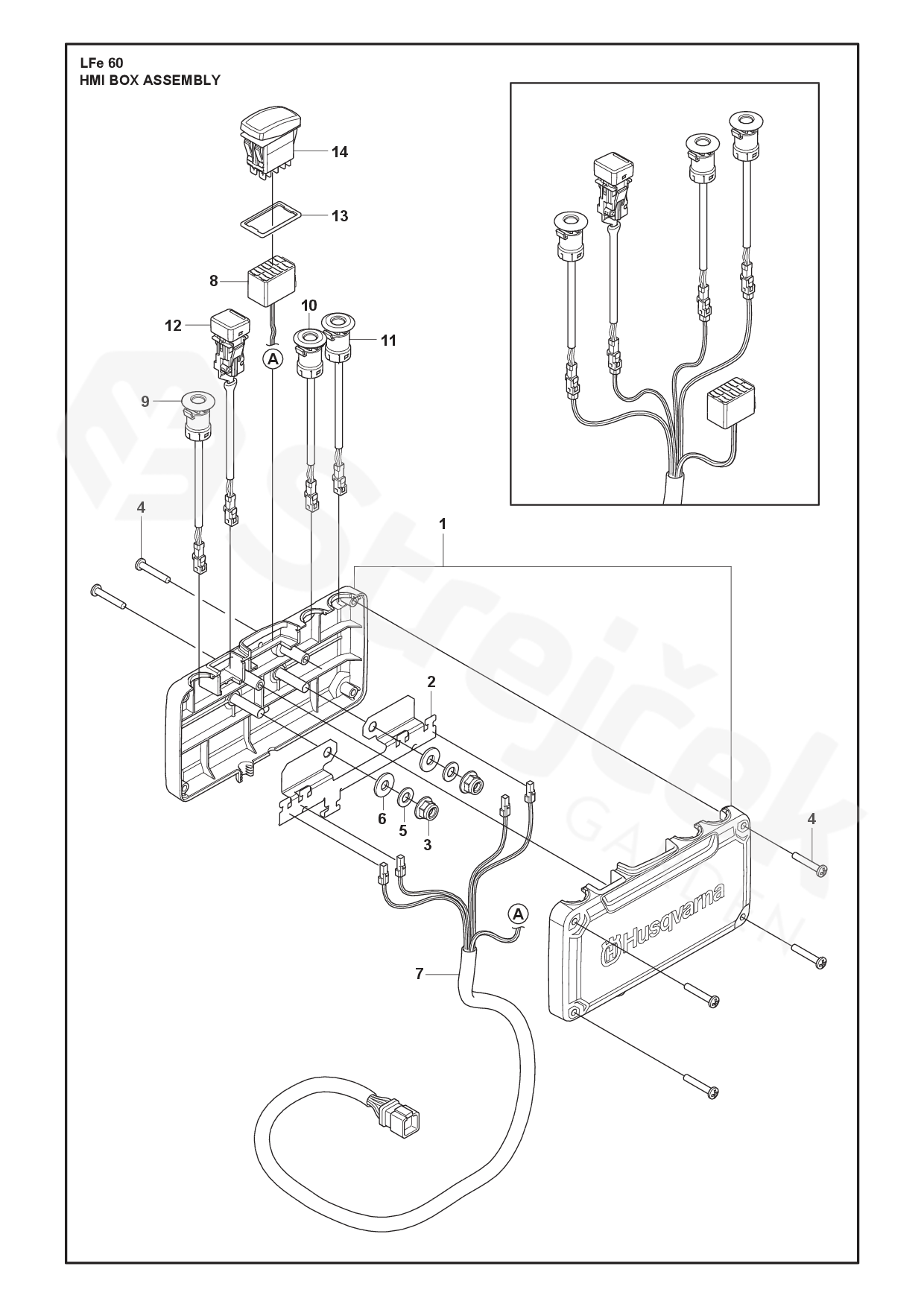

CONTROL PANEL
LFe 60 LAT LFe 60 LAT (970516901 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LFe 60 LAT
1 PANEL
HMI 		529961701
2 SHEET
HMI 		534091801
3 LOCK NUT 594123001
4 ŠROUB CCRPANMO
M5 x 30 10.9 ZnFe 		503203476
5 WASHER 595036601
6 ABSORBER
Polyurethane washer 		536830501
7 HARNESS ASSY
MAIN CIRCUIT HMI 		546257102
8 CONNECTOR HOUSING
VC2-01 		531431201
9 CABLE ASSY
LED INDICATORS ASSY GREEN 		546257502
10 CABLE ASSY
LED INDICATORS ASSY YELLOW 		546257602
11 CABLE ASSY
LED INDICATORS ASSY RED 		546257702
12 HARNESS ASSY
POWER SWITCH 		546257802
13 SEAL
Rocker switch seal 		537647501
14 SWITCH
Start stop switch 		536111701
