Spare parts
>
Husqvarna
>
Compaction Plates (HCD)
>
LG 400 LG 400
>
FRAME AND HOODS
Back to
LG 400
LG 400

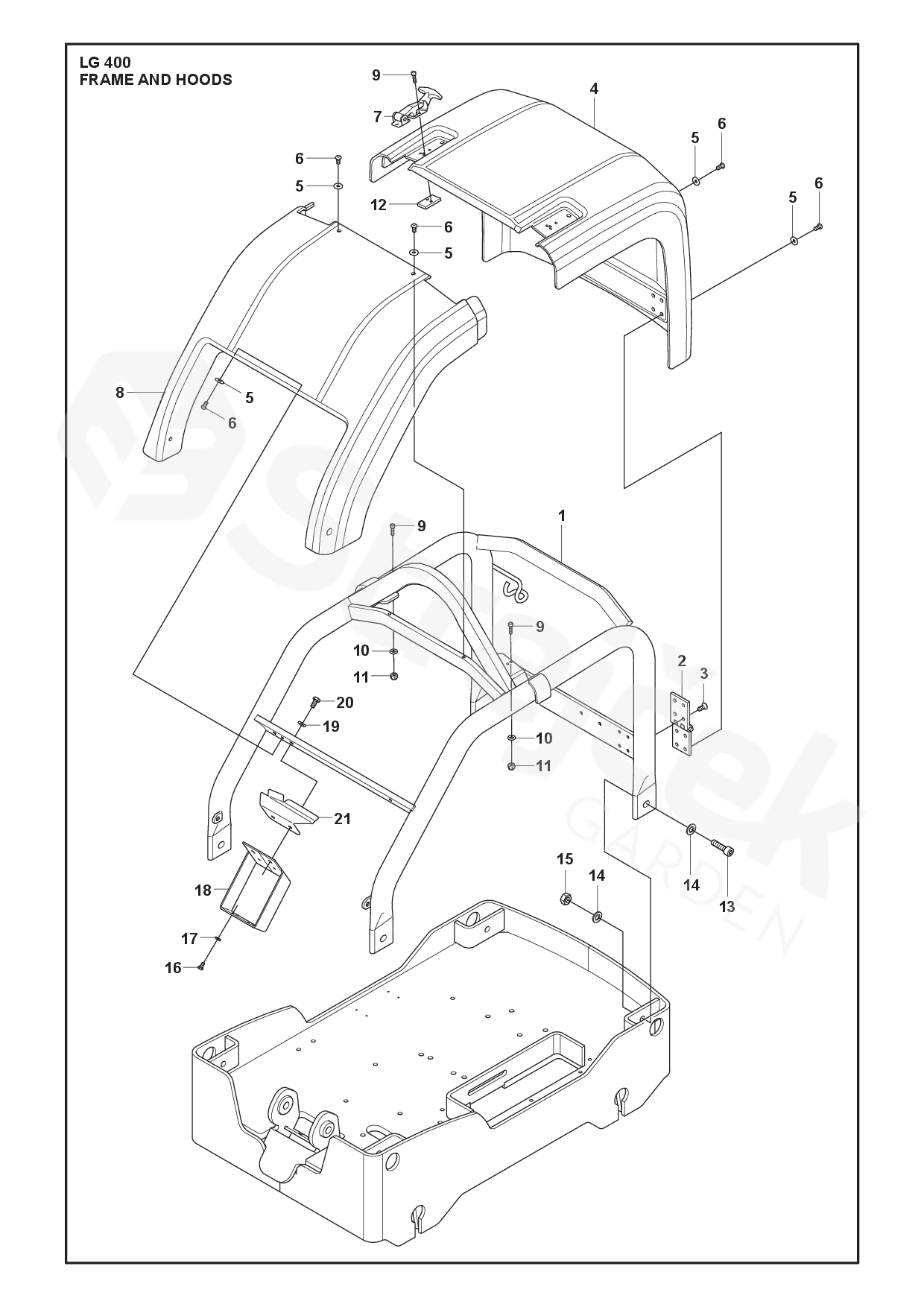

FRAME AND HOODS
LG 400
LG 400 (967896401 - , 967896403 - , 967855401 - )
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LG 400
1
FRAME
594142601
2
HINGE
594446801
3
SCREW
M6 x 16 mm A2-70
594534901
4
COVER
594957801
5
WASHER
6 x 18 x 2 mm, 0.24 x 0.71 x 0.08 in. 300 HV
594535101
6
SCREW
M06X12
595067701
7
LATCH
594192001
8
COVER
594957901
9
SCREW
M4 x 16 mm 8.8 A2K
595110801
10
WASHER
M04 4,3x9x0,8 200-300 HV
595113201
11
LOCK NUT
M4 ISO7040
595351901
12
STOP
594191601
13
SCREW
M12 x 45 mm 12.9 GEOMET®
594838401
14
WASHER
13 x 30 x 4 mm, 0.51 x 1.18 x 0.16 in. 300 HV
595112801
15
NUT
M12
594548601
16
SCREW
M5 x 10 mm 8.8 A2K
597447501
17
PLANE WASHER
5.3 x 10 x 1 mm, 0.21 x 0.39 x 0.04 in. 300 HV
594123801
18
BRACKET
Bracket
594490901
19
WASHER
8.4 x 16 x 1.5 mm, 0.33 x 0.63 x 0.06 in. 300 HV
595036601
20
SCREW
M8 x 16 mm 8.8 A2K
595110101
21
BRACKET
599568601
