Spare parts > Husqvarna > Floor Grinders > PG 6 S PG 6 S > CHASSIS
Back to

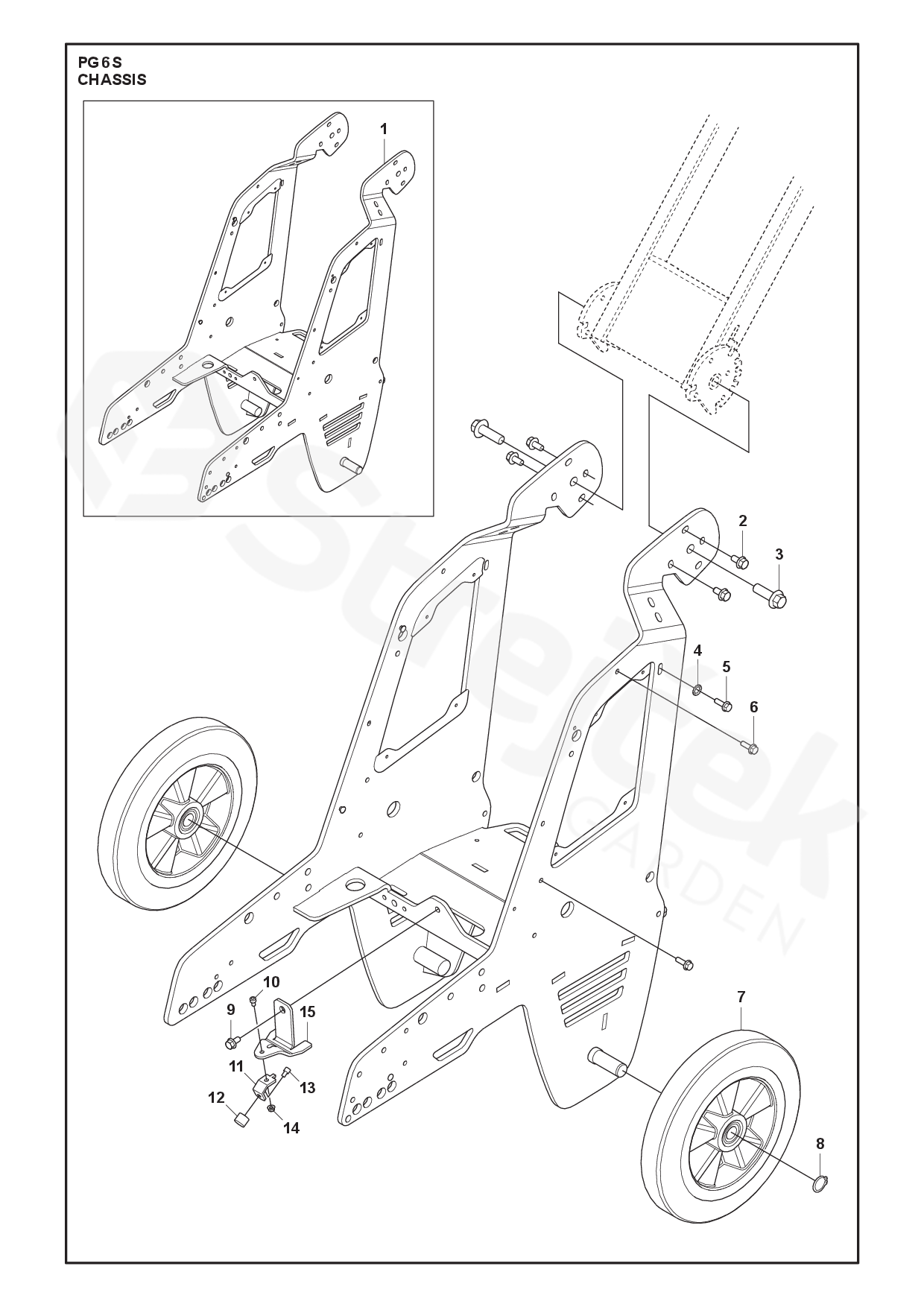

CHASSIS
PG 6 S PG 6 S (970603504 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PG 6 S
1 FRAME ASSY
CHASSIS 		535546701
2 SCREW
SCREW 		593514801
3 BOLT
SCREW 		582644801
4 LOCKWASHER
WASHER 		735216401
5 SCREW EHHFM
SCREW 		506570104
6 SCREW EHHFM
SCREW 		585980601
7 WHEEL
WHEEL 		597345801
8 CIRCLIP
CIRCLIP 		735312601
9 SCREW
SCREW 		597883401
10 SCREW EHHFM
SCREW 		586120201
11 BRACKET
BRACKET 		536868201
12 DAMPER
DAMPER 		586734901
13 SCREW
SCREW 		725536401
14 NUT FLANGE
NUT 		576645703
15 STOPPER
BRACKET 		598808301
