Spare parts > Husqvarna > Engines > B&S Engine (For US, AU, NZ) 31R707-0001-G1 B&S Engine (For US, AU, NZ) 31R707-0001-G1 > CAMSHAFT,CRANKSHAFT & COUNTER BALANCE, CYLINDER, ENGINE SUMP & BREATHER, LUBRICATION, PISTON, RINGS, CONNECTING ROD
Back to

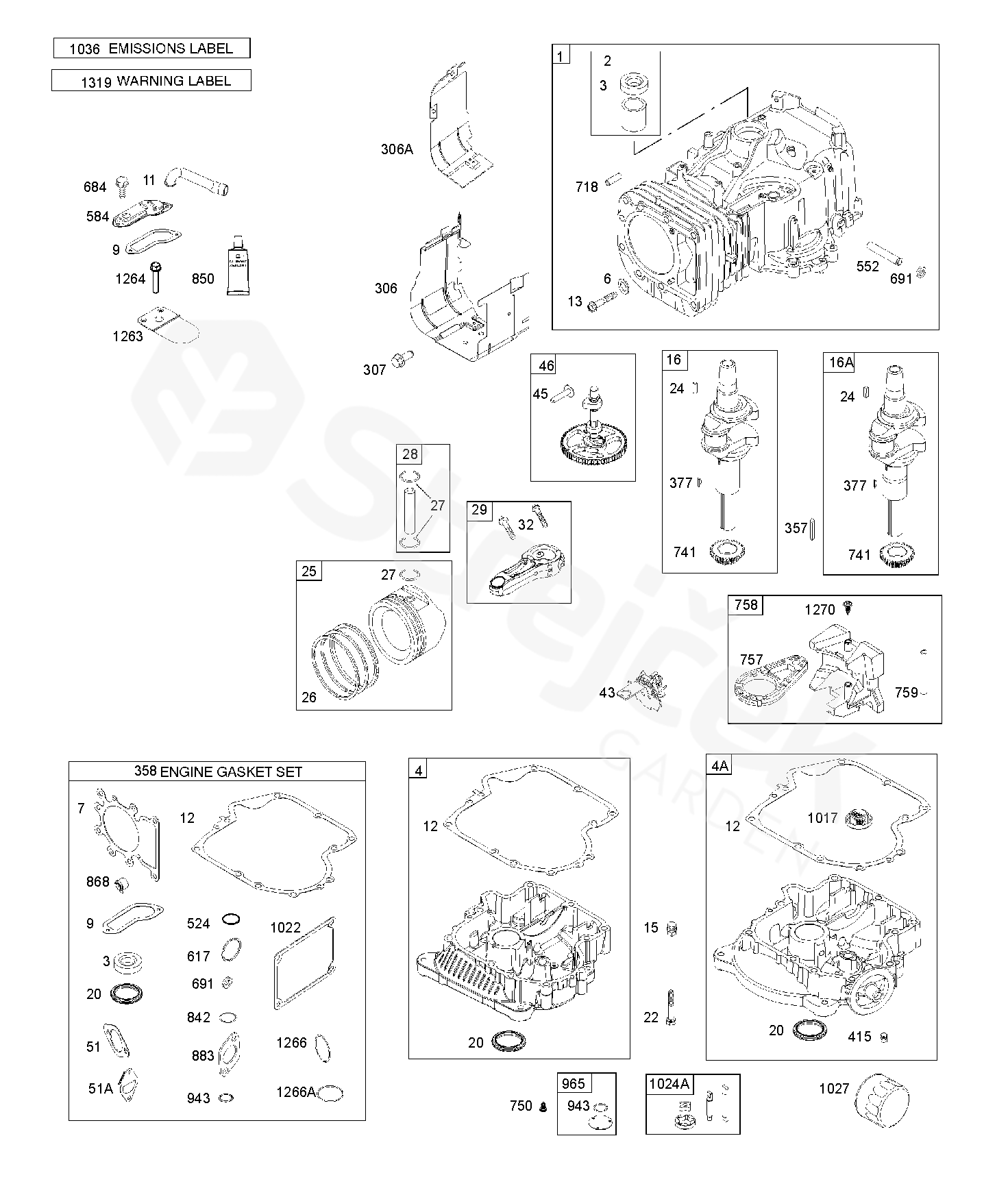

CAMSHAFT,CRANKSHAFT & COUNTER BALANCE, CYLINDER, ENGINE SUMP & BREATHER, LUBRICATION, PISTON, RINGS, CONNECTING ROD
B&S Engine (For US, AU, NZ) 31R707-0001-G1 B&S Engine (For US, AU, NZ) 31R707-0001-G1 (548447809 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For B&S Engine (For US, AU, NZ) 31R707-0001-G1
1 CYLINDER 585111001
2 BUSHING/SEAL KIT
(MAGNETO SIDE) 		576335801
3 SEAL
(MAGNETO SIDE) 		593601574
4 COVER 598672314
6 WASHER
(CYLINDER HEAD) 		585112501
7 GASKET 585112601
9 GASKET
(USE LIQUID SEALANT REFERENCE 850) 		585110401
11 TUBE 585112701
12 GASKET-CRANKCASE 576316401
13 SCREW
(CYLINDER HEAD) (5/16-18 X 2.69) 		585113101
15 PLUG-OIL DRAIN
(SQUARE HEAD) 		576298701
20 SEAL-OIL
(PTO SIDE) 		576328701
22 SCREW
(CRANKCASE COVER/SUMP) 		585113501
24 KEY 585113701
25 PISTON
(STANDARD) USED BEFORE CODE DATE 14100100 		585113901
26 RING
(.020" OVERSIZE) USED BEFORE CODE DATE 14100100 		585114201
27 LOCK 585114301
28 PEN
(1.97" LONG) 		585114501
29 CONNECTING ROD 582126401
32 SCREW
(CONNECTING ROD) 		585114701
43 GOVERNOR 585115601
45 TAPPET 585115701
46 GEAR 585115901
51 GASKET 585116201
306 SHIELD-CYLINDER 576328201
307 SCREW
(CYLINDER SHIELD) 		585116701
357 KEY 598672771
358 GASKET 585122001
377 KEY 585118601
415 PLUG
(ENGINE SUMP) 		576327901
524 SEAL-DIPSTICK TUBE 576302401
552 BUSHING 585123401
584 COVER
(USE WITH LIQUID SEALANT REFERENCE 850) 		585110301
617 SEAL
(INTAKE MANIFOLD) 		585111501
684 SCREW
(BREATHER PASSAGE COVER) 		585111801
691 SEAL 585111901
718 PEN 585078101
741 GEAR 585112301
750 SCREW
(OIL PUMP COVER) 		585112801
757 LINK 585113001
758 COUNTERWEIGHT
USED BEFORE CODE DATE 14100600 		585113401
759 COUNTERWEIGHT 585113801
842 SEAL
(DIPSTICK TUBE) (SPECIAL DIPSTICK TUBE) 		585081501
850 SEALANT-LIQUID
(ROCKER COVER GASKET AND BREATHER GASKET) 		576295501
868 SEAL-VALVE 576299501
883 GASKET 585123801
943 SEAL
(OIL PUMP COVER) 		585124101
965 COVER 585124501
1017 SCREEN
(PUSH IN) 		585130201
1022 GASKET
(USE LIQUID SEALANT REFERENCE 850) 		594922301
1024 PUMP 585130501
1027 OIL FILTER
(PREMIUM) 		585730401
1263 BREATHER 585131601
1264 SCREW
(BREATHER REED) 		585131701
1266 SEAL
(INTAKE ELBOW) 		585132001
1270 PLUG 585132101
1319 LABEL 598672786
