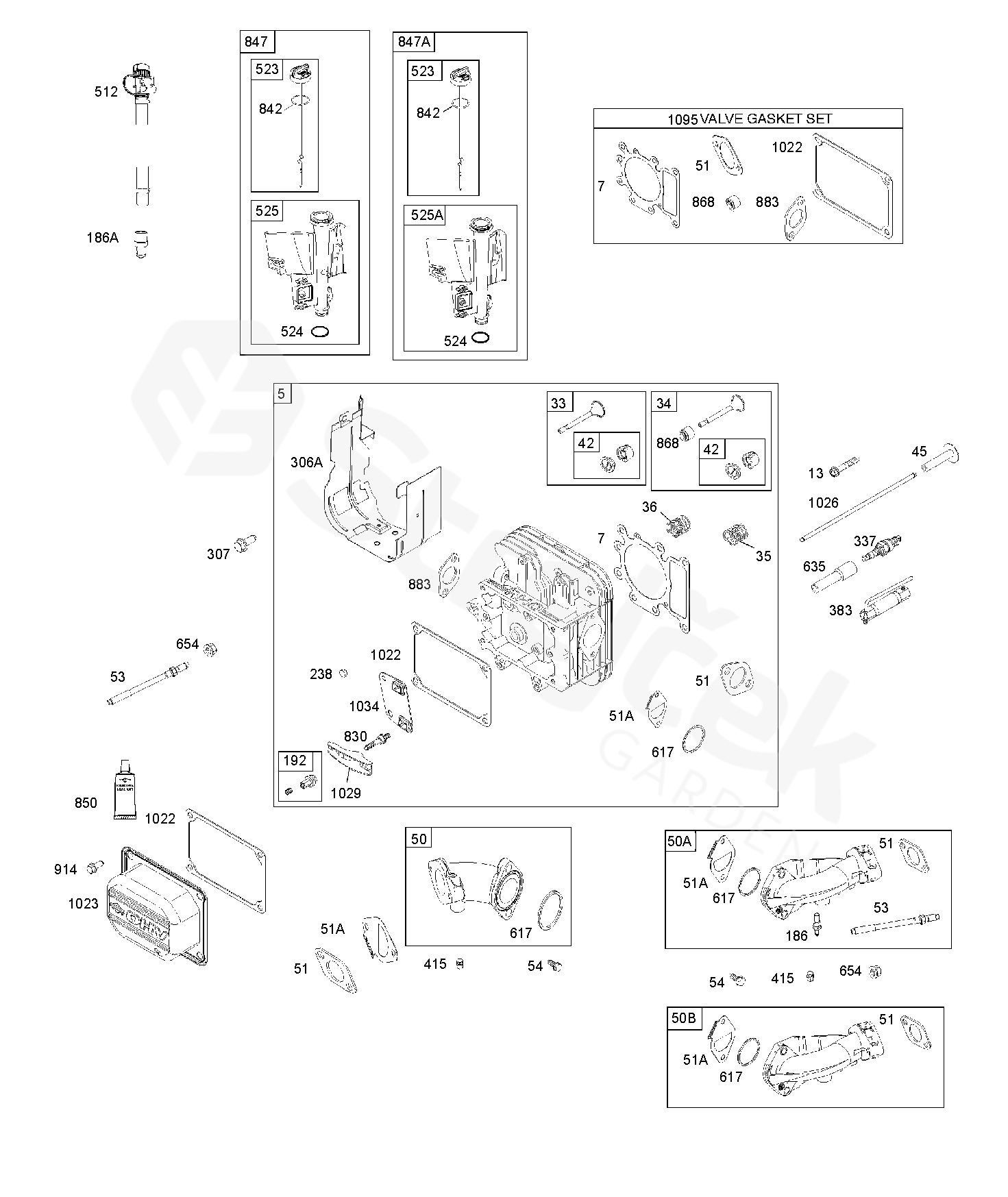

Spare parts - Partlist - B&S Engine (For US, AU, NZ) 31R707-0001-G1 B&S Engine (For US, AU, NZ) 31R707-0001-G1 - CYLINDER HEAD, INTAKE MANIFOLD, OIL FILL, VALVES

Everything for your machines

B&S Engine (For US, AU, NZ) 31R707-0001-G1 B&S Engine (For US, AU, NZ) 31R707-0001-G1 (548447809 - )

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For B&S Engine (For US, AU, NZ) 31R707-0001-G1

5	HEAD	585112401
7	GASKET	585112601
13	SCREW (CYLINDER HEAD) (5/16-18 X 2.69)	585113101
33	VALVE	585114801
34	VALVE	585115001
35	SPRING (EXHAUST)	585115101
36	SPRING (EXHAUST)	585115101
42	CUP	505404101
45	TAPPET	585115701
50	MANIFOLD	585116101
51	GASKET	585116201
53	STUD (CARBURETOR)	585116401
54	SCREW (INTAKE MANIFOLD)	585116501
186	CONNECTOR	585090301
192	ADJUSTER	585119801
238	CAP	585120501
306	SHIELD-CYLINDER	576328201
307	SCREW (CYLINDER SHIELD)	585116701
337	PLUG (RESISTOR EMS)	585121801
383	WRENCH (5/8 & 13/16, 8" LONG)	598673584
415	PLUG (ENGINE SUMP)	576327901
512	HOSE OIL DRAIN	582166801
523	DIPSTICK	585123001
524	SEAL-DIPSTICK TUBE	576302401
525	TUBE-DIPSTICK (STANDARD DIPSTICK TUBE)	576316901
617	SEAL (INTAKE MANIFOLD)	585111501
635	BOOT	585111701
654	NUT (CARBURETOR)	576299301
830	STUD	585118801
842	SEAL (DIPSTICK TUBE) (SPECIAL DIPSTICK TUBE)	585081501
847	DIPSTICK (WITH SIDE TUBE CONNECTOR)	585119101
850	SEALANT-LIQUID (ROCKER COVER GASKET AND BREATHER GASKET)	576295501
868	SEAL-VALVE	576299501
883	GASKET	585123801
914	SCREW (ROCKER COVER)	585123901
1022	GASKET (USE LIQUID SEALANT REFERENCE 850)	594922301
1023	COVER	585130401
1026	ROD (INTAKE)	585130601
1029	ARM	585130801
1034	GUIDE	585130901
1095	GASKET	585131401
