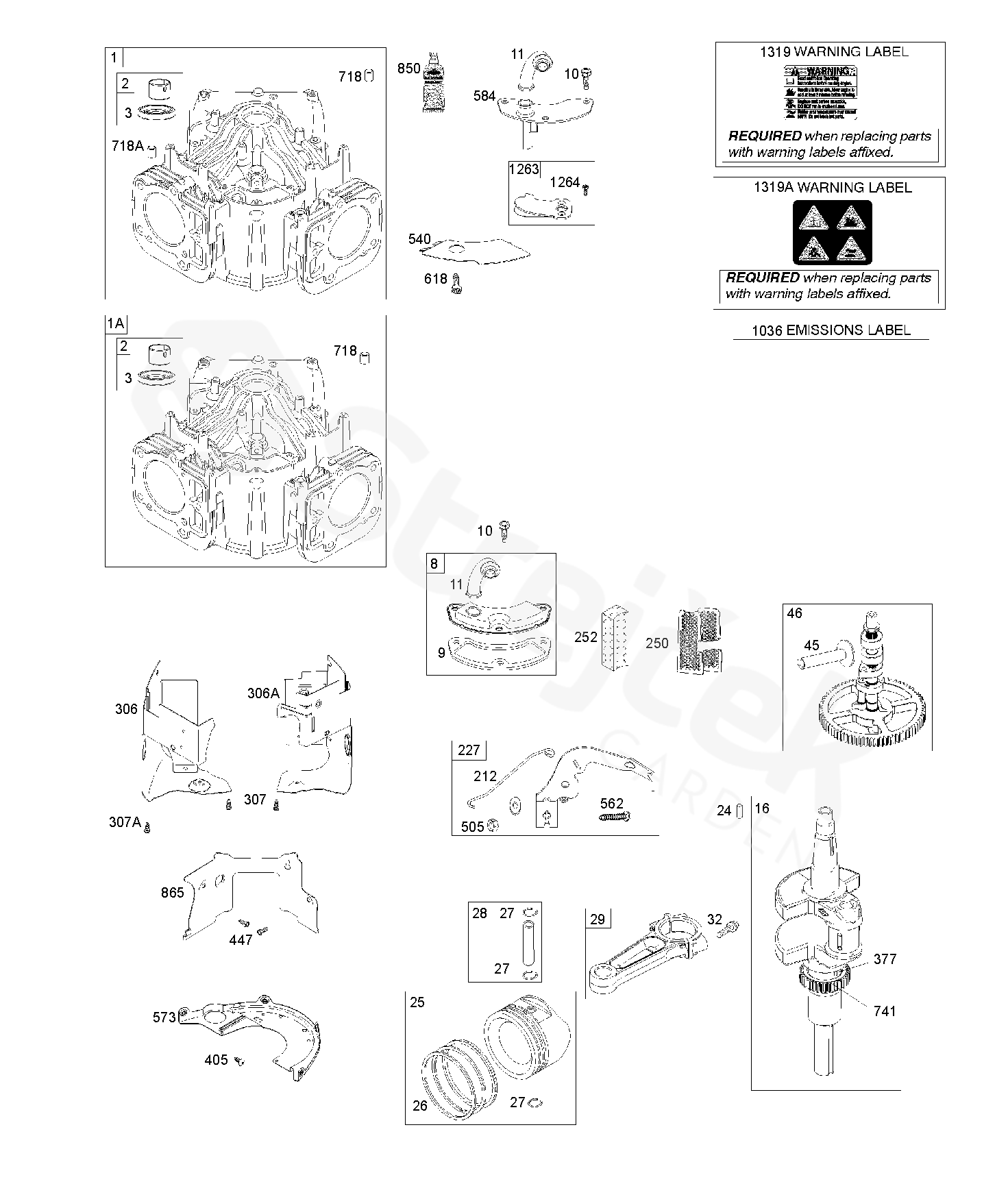

Spare parts - Partlist - B&S Engine (For US, AU, NZ) 44S877-0020-G1 B&S Engine (For US, AU, NZ) 44S877-0020-G1 - CYLINDER, CRANKSHAFT, CAMSHAFT, AIR GUIDES

Everything for your machines

B&S Engine (For US, AU, NZ) 44S877-0020-G1 B&S Engine (For US, AU, NZ) 44S877-0020-G1 (548447877 - )

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For B&S Engine (For US, AU, NZ) 44S877-0020-G1

1	CYLINDER USED AFTER CODE DATE 15071500	582165201
2	BUSHING/SEAL KIT (MAGNETO SIDE)	576335801
3	SEAL (MAGNETO SIDE)	593601574
8	BREATHER USED BEFORE CODE DATE 14110500	585079301
9	GASKET-BREATHER USED BEFORE CODE DATE 14110500	576298601
10	SCREW (BREATHER ASSEMBLY)	585123901
11	TUBE-BREATHER USED BEFORE CODE DATE 14110500	576322601
16	CRANKSHAFT	585174701
24	WOODRUFF KEY 222698S	582289090
25	PISTON (STANDARD)	585184101
26	RING SET (.020" OVERSIZE)	576322401
27	LOCK-PISTON PIN	576299901
28	PIN-PISTON	576315801
29	ROD-CONNECTING	576330901
32	SCREW (CONNECTING ROD)	576300001
45	TAPPET-VALVE	576300101
46	CAMSHAFT	576334701
212	LINK-THROTTLE	576309901
227	LEVER	585091701
250	RETAINER-BREATHER USED BEFORE CODE DATE 14110500	576299201
252	COLLECTOR-OIL USED BEFORE CODE DATE 14110500	576327401
306	SHIELD-CYLINDER (CYLINDER #1)	576333701
307	SCREW (BREATHER ASSEMBLY)	585123901
377	KEY-TIMING	576300201
405	SCREW BACK PLATE (BACK PLATE)	590293201
447	SCREW (AIR GUIDE COVER)	576301601
505	NUT (GOVERNOR CONTROL LEVER)	576302201
540	PLATE BAFFLE	582166201
562	SCREW (GOVERNOR CONTROL LEVER)	576297201
573	PLATE BACK PLATE	590294501
584	COVER	598672238
618	SCREW BAFFLE PLATE (BAFFLE PLATE)	582166101
718	PEN	585078101
741	GEAR-TIMING	576300301
850	SEALANT-LIQUID	576295501
865	COVER (VALLEY)	585176101
1263	BREATHER REED	582171601
1264	SCREW REED-BREATHER (BREATHER REED)	582171701
1319	LABEL	598672786
