Spare parts > Husqvarna > Engines > HV 708AE HV 708AE > CRANKCASE AND ELECTRICAL
Back to

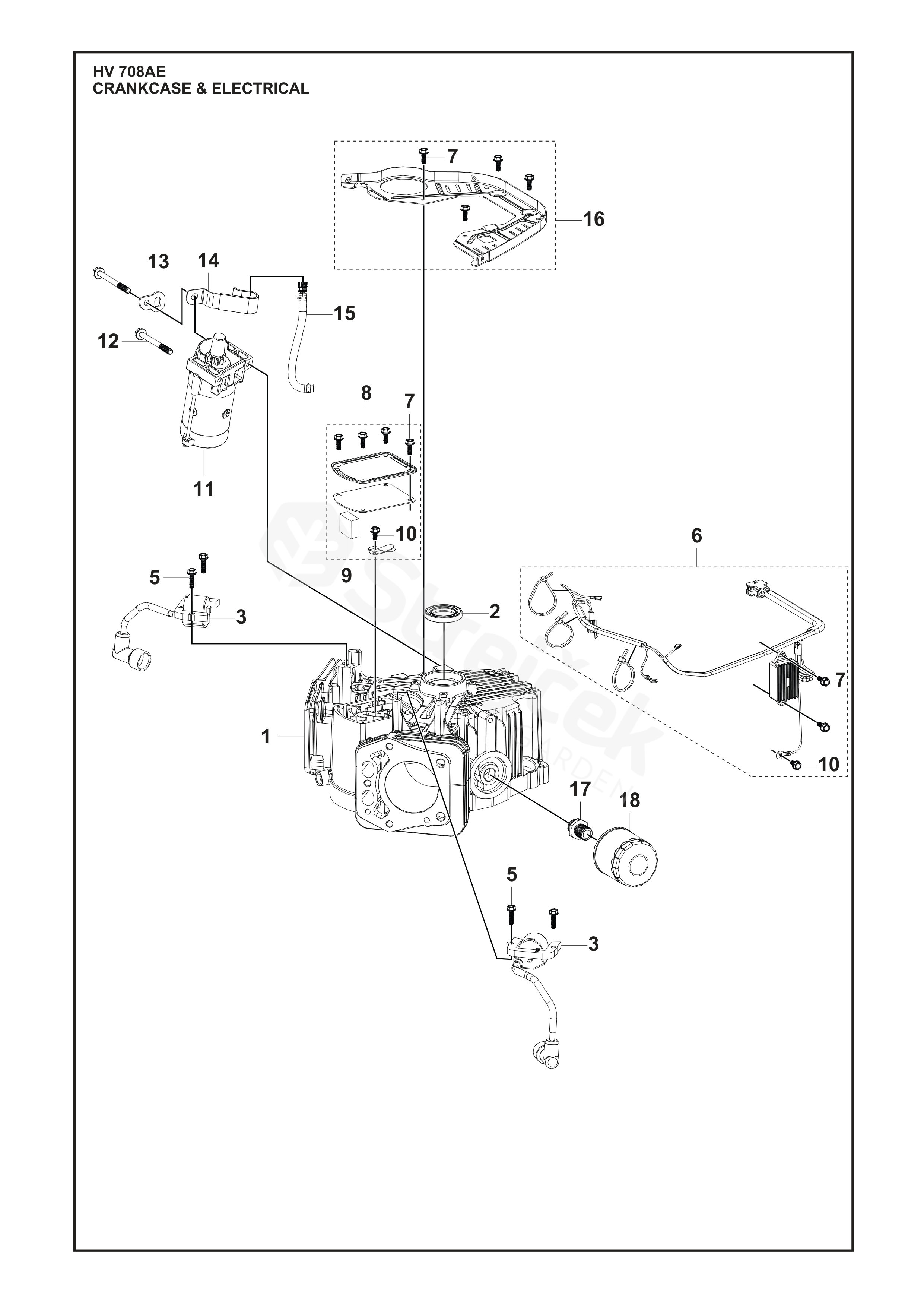

CRANKCASE AND ELECTRICAL
HV 708AE HV 708AE (970796301 - 7333377711037)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HV 708AE
1 CRANKCASE 547494001
2 SEAL
OIL SEAL 		599596801
3 IGNITION COIL 598600401
5 BOLT
GB/T 5789: M6 L=20 		598684567
6 VARIATOR
VOLTAGE RECTIFIER KIT 		547494101
7 BOLT
GB/T 5789: M6 L=16 		531147125
8 BREATHER
BREATHER CHAMBER KIT 		598605201
9 BLOCK
OIL RETURN BLOCK 		599596901
10 BOLT
GB/T 5789: M6 L=12 		599349093
11 STARTER MOTOR 547494201
12 BOLT
GB/T 5789: M8 L=80 S=12 		598607401
13 BRACKET 599349097
14 CLIP 547494301
15 TUBE 547494401
16 COVER KIT
SIDE PLATE COVER 		598605101
17 OIL PLUG
OIL FILTER MOUNTING PLUG 		598607601
18 OIL FILTER 591165901
