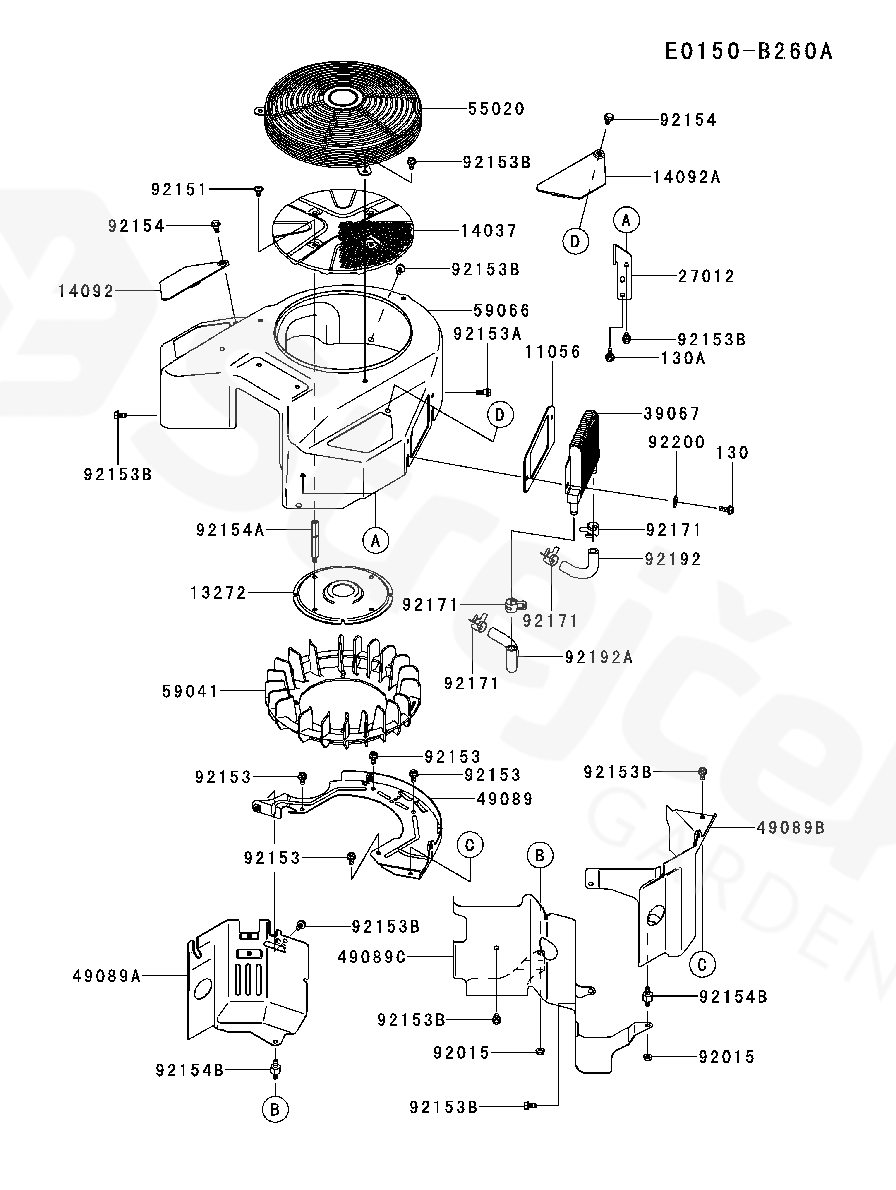

Spare parts - Partlist - Kawasaki Engine (For AU) FX751V-FS00 Kawasaki Engine (For AU) FX751V-FS00 - COOLING SYSTEM

Everything for your machines

Kawasaki Engine (For AU) FX751V-FS00 Kawasaki Engine (For AU) FX751V-FS00 (548448029 - )

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Kawasaki Engine (For AU) FX751V-FS00

1	BRACKET BRACKET, Kawasaki ArtNo: 11056	592739708
2	PLATE PLATE, Kawasaki ArtNo: 13272	591457551
3	SCREEN SCREEN, Kawasaki ArtNo: 14037	577567801
4	COVER COVER, Kawasaki ArtNo: 14092	591457448
5	COVER COVER, Kawasaki ArtNo: 14092A	591457449
6	HOOK HOOK,LIFT, Kawasaki ArtNo: 27012	591457495
7	COOLER COOLER-OIL, Kawasaki ArtNo: 39067	591457447
8	SHROUD SHROUD-ENGINE,BACK, Kawasaki ArtNo: 49089	591457605
9	SHROUD SHROUD-ENGINE,#1, Kawasaki ArtNo: 49089A	592739734
10	SHROUD SHROUD-ENGINE,#2, Kawasaki ArtNo: 49089B	592739731
11	SHROUD SHROUD-ENGINE,V-BANK, Kawasaki ArtNo: 49089C	577683401
12	GUARD GUARD, Kawasaki ArtNo: 55020	577568201
13	FAN FAN, Kawasaki ArtNo: 59041	577568401
14	HOUSING HOUSING-FAN, Kawasaki ArtNo: 59066	591457501
15	NUT NUT,FLANGED,6MM, Kawasaki ArtNo: 92015	577580801
16	BOLT BOLT,6X12, Kawasaki ArtNo: 92151	577683601
17	BOLT BOLT,FLANGED,6X12, Kawasaki ArtNo: 92153	577683701
18	BOLT BOLT,RECOIL STARTER, Kawasaki ArtNo: 92153A	921537007
19	BOLT BOLT,6X12, Kawasaki ArtNo: 92153B	577582001
20	BOLT BOLT, Kawasaki ArtNo: 92154	591457410
21	BOLT BOLT, Kawasaki ArtNo: 92154A	591457411
22	BOLT BOLT, Kawasaki ArtNo: 92154B	591457412
23	CLAMP CLAMP, Kawasaki ArtNo: 92171	591457443
24	TUBE TUBE, Kawasaki ArtNo: 92192	591457618
25	TUBE TUBE, Kawasaki ArtNo: 92192A	591457619
26	WASHER WASHER,6.5X18X2.0, Kawasaki ArtNo: 92200	591457633
130	BOLT BOLT-FLANGED,6X16	591457415
