Spare parts > Husqvarna > Engines > Kawasaki Engine (For AU) FX801V-FS00 Kawasaki Engine (For AU) FX801V-FS00 > COOLING SYSTEM
Back to

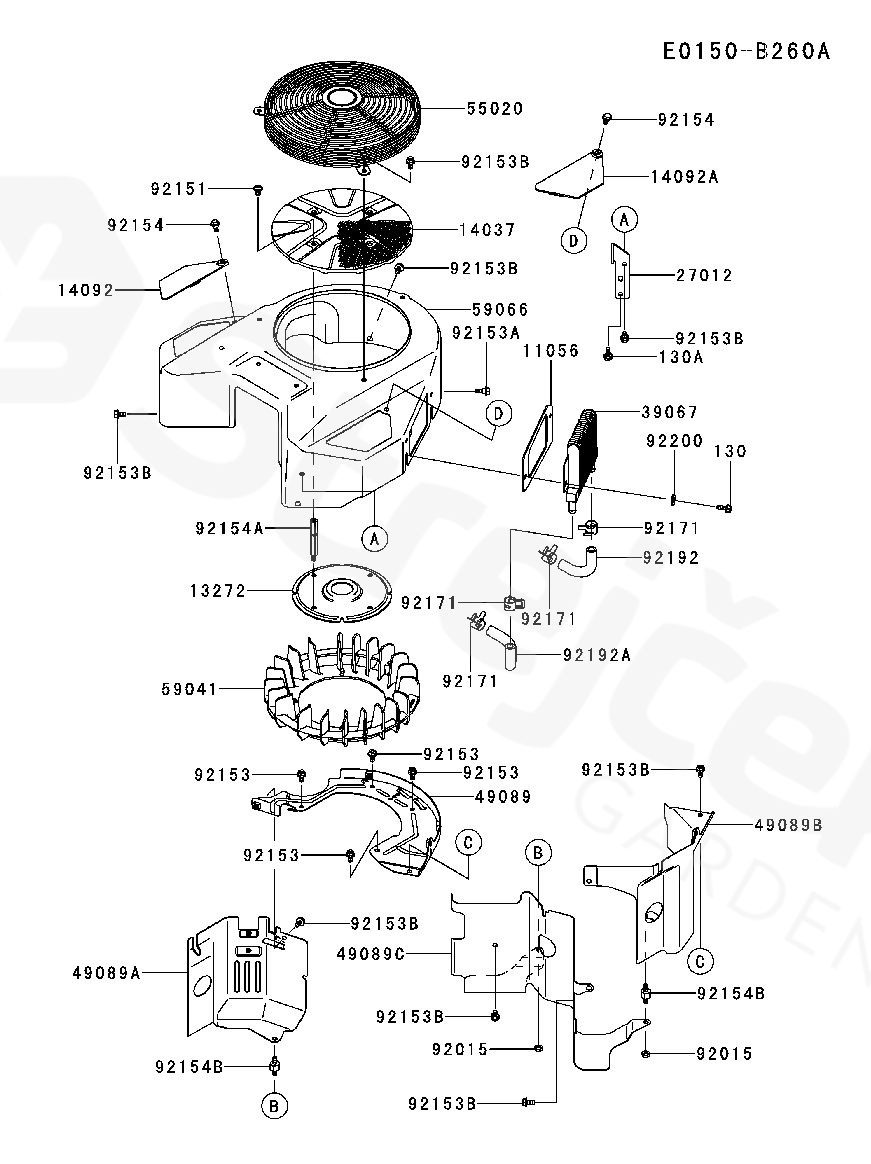

COOLING SYSTEM
Kawasaki Engine (For AU) FX801V-FS00 Kawasaki Engine (For AU) FX801V-FS00 (548448031 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Kawasaki Engine (For AU) FX801V-FS00
1 BRACKET
BRACKET, Kawasaki ArtNo: 11056 		592739708
4 PLATE
PLATE, Kawasaki ArtNo: 13272 		591457551
5 SCREEN
SCREEN, Kawasaki ArtNo: 14037 		577567801
6 COVER
COVER, Kawasaki ArtNo: 14092 		591457448
7 COVER
COVER, Kawasaki ArtNo: 14092A 		591457449
8 HOOK
HOOK,LIFT, Kawasaki ArtNo: 27012 		591457495
9 COOLER
COOLER-OIL, Kawasaki ArtNo: 39067 		591457447
10 SHROUD
SHROUD-ENGINE,BACK, Kawasaki ArtNo: 49089 		591457605
11 SHROUD
SHROUD-ENGINE,#1, Kawasaki ArtNo: 49089A 		592739734
12 SHROUD
SHROUD-ENGINE,#2, Kawasaki ArtNo: 49089B 		592739731
13 SHROUD
SHROUD-ENGINE,V-BANK, Kawasaki ArtNo: 49089C 		577683401
14 GUARD
GUARD, Kawasaki ArtNo: 55020 		577568201
15 FAN
FAN, Kawasaki ArtNo: 59041 		577568401
16 HOUSING
HOUSING-FAN, Kawasaki ArtNo: 59066 		591457501
17 NUT
NUT,FLANGED,6MM, Kawasaki ArtNo: 92015 		577580801
18 BOLT
BOLT,6X12, Kawasaki ArtNo: 92151 		577683601
19 BOLT
BOLT,FLANGED,6X12, Kawasaki ArtNo: 92153 		577683701
20 BOLT
BOLT,RECOIL STARTER, Kawasaki ArtNo: 92153A 		921537007
21 BOLT
BOLT,6X12, Kawasaki ArtNo: 92153B 		577582001
22 BOLT
BOLT, Kawasaki ArtNo: 92154 		591457410
23 BOLT
BOLT, Kawasaki ArtNo: 92154A 		591457411
24 BOLT
BOLT, Kawasaki ArtNo: 92154B 		591457412
25 CLAMP
CLAMP, Kawasaki ArtNo: 92171 		591457443
26 TUBE
TUBE, Kawasaki ArtNo: 92192 		591457618
27 TUBE
TUBE, Kawasaki ArtNo: 92192A 		591457619
28 WASHER
WASHER,6.5X18X2.0, Kawasaki ArtNo: 92200 		591457633
130 BOLT
BOLT-FLANGED,6X16 		591457415
