Spare parts > Husqvarna > Engines > Kohler Engine SV530-0019 Kohler Engine SV530-0019 > FUEL SYSTEM
Back to

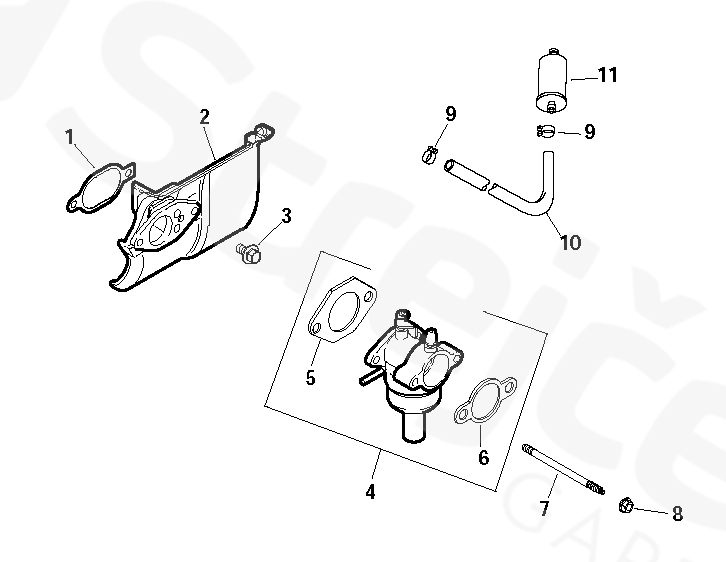

FUEL SYSTEM
Kohler Engine SV530-0019 Kohler Engine SV530-0019 (548448051 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Kohler Engine SV530-0019
1 GASKET 531029595
2 DEFLECTOR 531029596
3 SCREW 531029597
4 CARBURETTOR 531029941
5 GASKET 531029599
6 GASKET 531029600
7 ŠROUB 531029601
8 MATICE 531029602
9 CLAMP 531029604
10 HADICE 531029987
11 FILTER 531029502
12 PODLOŽKA
NOT SHOWN 		531029606
13 VALVE
NOT SHOWN 		531029607
14 OPRAVÁRENSKÁ SADA
NOT SHOWN 		531029608
15 RPAIR KI
NOT SHOWN 		531029609
16 GASKET
NOT SHOWN 		531029610
17 AIR FILTER
NOT SHOWN 		531029998
18 WIRE
NOT SHOWN 		531029611
