Spare parts > Husqvarna > Engines > Kohler Engine SV530-0025 Kohler Engine SV530-0025 > FUEL SYSTEM
Back to

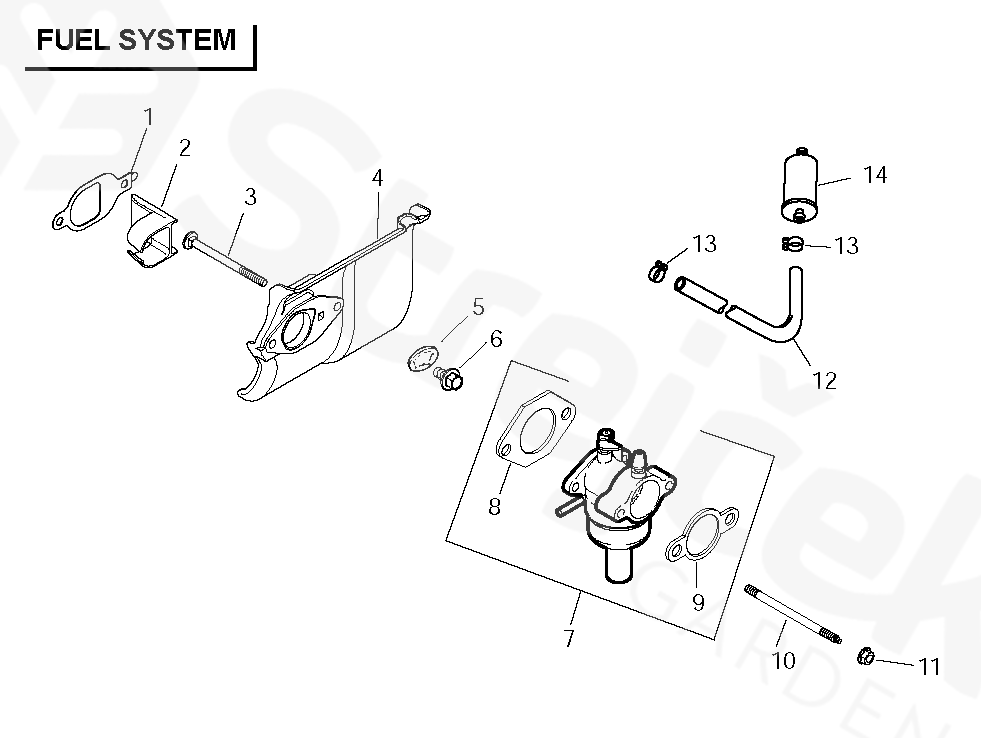

FUEL SYSTEM
Kohler Engine SV530-0025 Kohler Engine SV530-0025 (548448053 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Kohler Engine SV530-0025
1 GASKET 504577501
2 INSERT 544936901
3 PEN 504577701
4 HEAT DEFLECTOR (INCLUDES 1-3, 9)
(INCLUDES 1-3, 9) 		532029596
5 PODLOŽKA 531029606
6 SCREW 531029597
7 CARBURETTOR
(INCLUDES 8, 9) 		531029941
8 GASKET 531029599
9 GASKET 531029600
10 ŠROUB 531029601
11 MATICE 531029602
12 HADICE 531029987
13 CLAMP 531029604
14 FILTER 531029502
15 ROZPĚRNÁ TYČ 544937101
