Spare parts > Husqvarna > Engines > Kohler Engine SV735-0014 Kohler Engine SV735-0014 > IGNITION SYSTEM
Back to

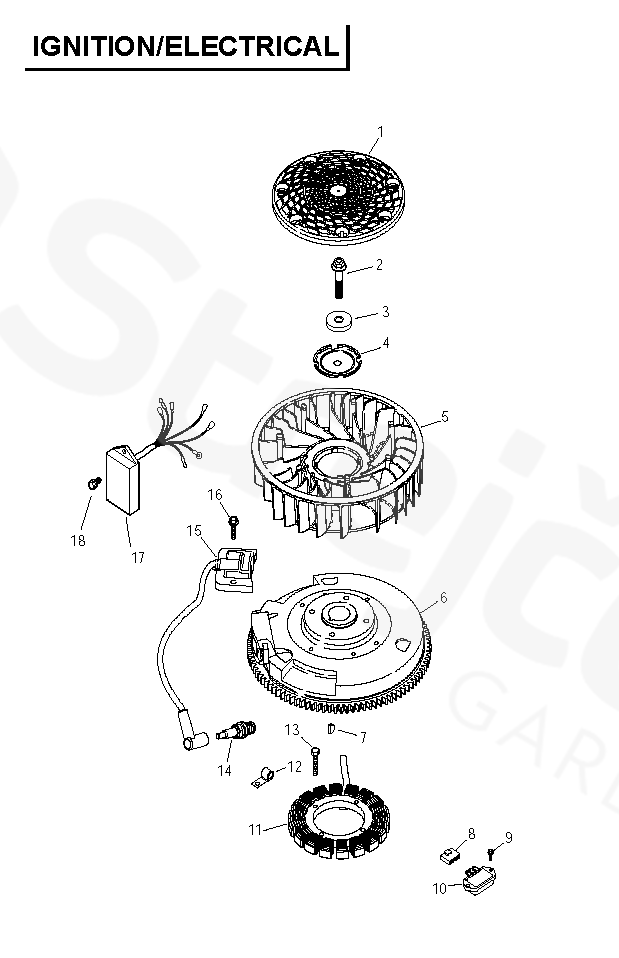

IGNITION SYSTEM
Kohler Engine SV735-0014 Kohler Engine SV735-0014 (548448071 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Kohler Engine SV735-0014
1 SCREEN 531029970
2 SCREW 531029573
3 WASHER 531029574
4 PLATE 544936801
5 FAN 531029973
6 FLYWHEEL 504575701
7 KEY 531029511
8 CONNECTION 531029583
9 SCREW 531029759
10 PEN 504577701
11 STATOR
(INCLUDES 25 452 01-S) 		531029582
12 CLIP 531029783
13 SCREW 531029887
14 SPARK PLUG 531029975
15 IGNITION MODULE
MDI Conversion Kit, see Kohler PB 259 		546818601
16 SCREW 531029584
17 MODULE 544843401
18 SCREW 544843901
19 WIRE 531029754
20 CABLE 504576401
21 TERMINAL 544937501
