Spare parts > Husqvarna > Gearboxes > Tuff Torq Transmission K62F Tuff Torq Transmission K62F > TRANSMISSION
Back to

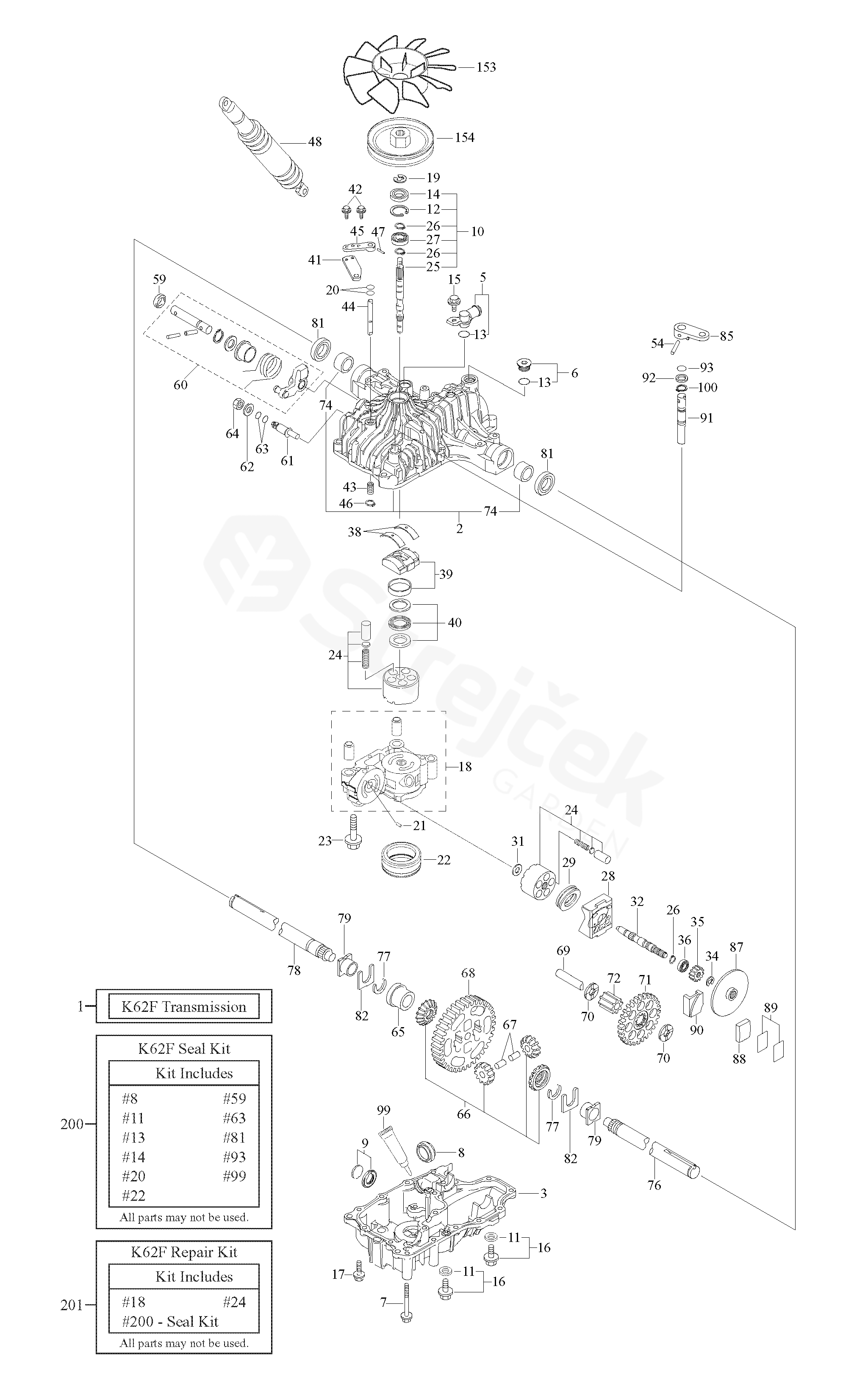

TRANSMISSION
Tuff Torq Transmission K62F Tuff Torq Transmission K62F (548448158 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Tuff Torq Transmission K62F
1 TRANSMISSION 506991101
2 UPPER CASE KIT 502449101
3 HOUSING 535414621
5 FITTING 502450201
6 COVER 535402821
7 BOLT 535414683
8 FILTER 535414623
9 MAGNET 535414694
10 BEARING KIT 502463601
11 WASHER 535402825
12 RETAINING RING 535402850
13 O-RING 535402815
14 SEALING 506957201
15 BOLT 502462801
16 BOLT 535402824
17 SCREW 535402828
18 BEARING HOUSING 535414624
19 CLIP 535402807
20 O-RING 535402815
21 PIN RETAINING SCREW 535402858
22 FILTER 535414691
23 BOLT 502462901
24 CYLINDER 535402874
25 SHAFT 535414627
26 RETAINING RING 535402881
27 BEARING 535402871
28 HOUSING 535414622
29 BEARING 535414682
31 WASHER 535402879
32 SHAFT 535414628
34 O-RING 535414629
35 GEAR 535414668
36 BEARING 535414704
38 PLATE 535414686
39 SWASH PLATE 535414633
40 BEARING 523076001
41 LEVER 535402826
42 BOLT 535402827
43 SPRING 502460101
44 SHAFT 535414634
45 LEVER 535402817
46 RETAINING RING 535402849
47 PIN RETAINING SCREW 535402816
48 ABSORBER 502460301
54 PIN RETAINING SCREW 535402809
59 SEALING 535402811
60 CONTROL SHAFT 502451101
61 ECCENTRIC 535402892
62 WASHER 535402813
63 O-RING 535402814
64 NUT 506956601
66 DIFFERENTIAL GEAR KIT 502449401
67 PIN RETAINING SCREW 535414638
68 GEAR 535414643
69 SHAFT 535414639
70 WASHER 535414640
71 GEAR 535414660
72 PINION 535414642
74 BUSHING 535414690
76 AXLE SHAFT LEFT 502450701
77 RETAINING RING 535414696
78 AXLE SHAFT RIGHT 502450801
79 BUSHING 535414697
80 SLEEVE 535414644
81 SEALING 535402810
82 WASHER 535414645
85 BRAKE LEVER 535402808
87 BRAKE DISC 535414646
88 BRAKE SHOE 535414647
89 SHIM KIT 502449501
90 RETAINER 535414652
91 SHAFT 535414650
92 WASHER 535414651
93 O-RING 535414619
100 RETAINING RING 535414702
132 LEVER 535402826
153 FAN 502450301
154 PULLEY 535414946
200 SEAL KIT 502451401
201 REPAIR KIT 502463501
