Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > LR100 LR100, 954000572, 1995-03 > BRAKE / REAR MOWER LIFT
Back to

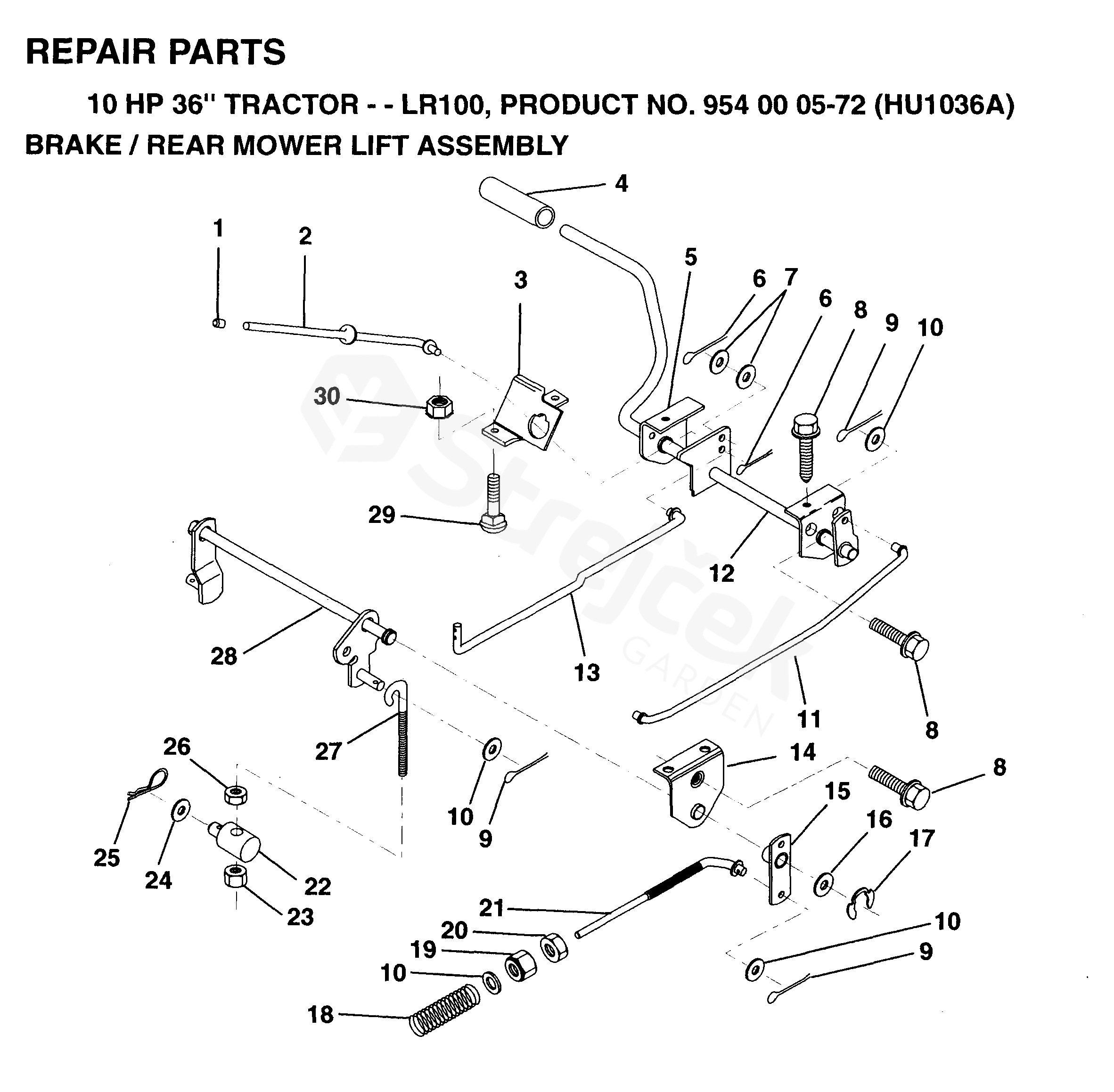

BRAKE / REAR MOWER LIFT
LR100 LR100, 954000572, 1995-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LR100, 954000572, 1995-03
1 COVER 532071673
2 ROD 532123436
3 HOLDER 532123437
4 PEDAL RUBBER 532008156
5 HOLDER 532122504
6 SPLIT PIN 876020312
7 WASHER 819131016
8 SCR5/16-18X1/2 SELFTAP ZN SPEC 817490508
9 SPLIT PIN 876020412
10 PODLOŽKA 819131316
11 ROD 532123543
12 CLUTCH 532129567
13 ROD 532123394
14 HOLDER 532121978
15 LEVER 532123641
16 WASHER 819251816
17 RETAINING RING 812000034
18 SPRING 532106888
19 NUT 873800600
20 NUT 873350600
21 ROD 532131936
22 BRACKET 532127378
23 MATICE 873680600
24 PODLOŽKA 819132012
25 CLIP 532124961
26 MATICE 873930600
27 LINK 532127369
28 SUPPORT, REAR 532127358
29 BOLT 872110506
30 NUT 873510500
